Mazak HCR-5000

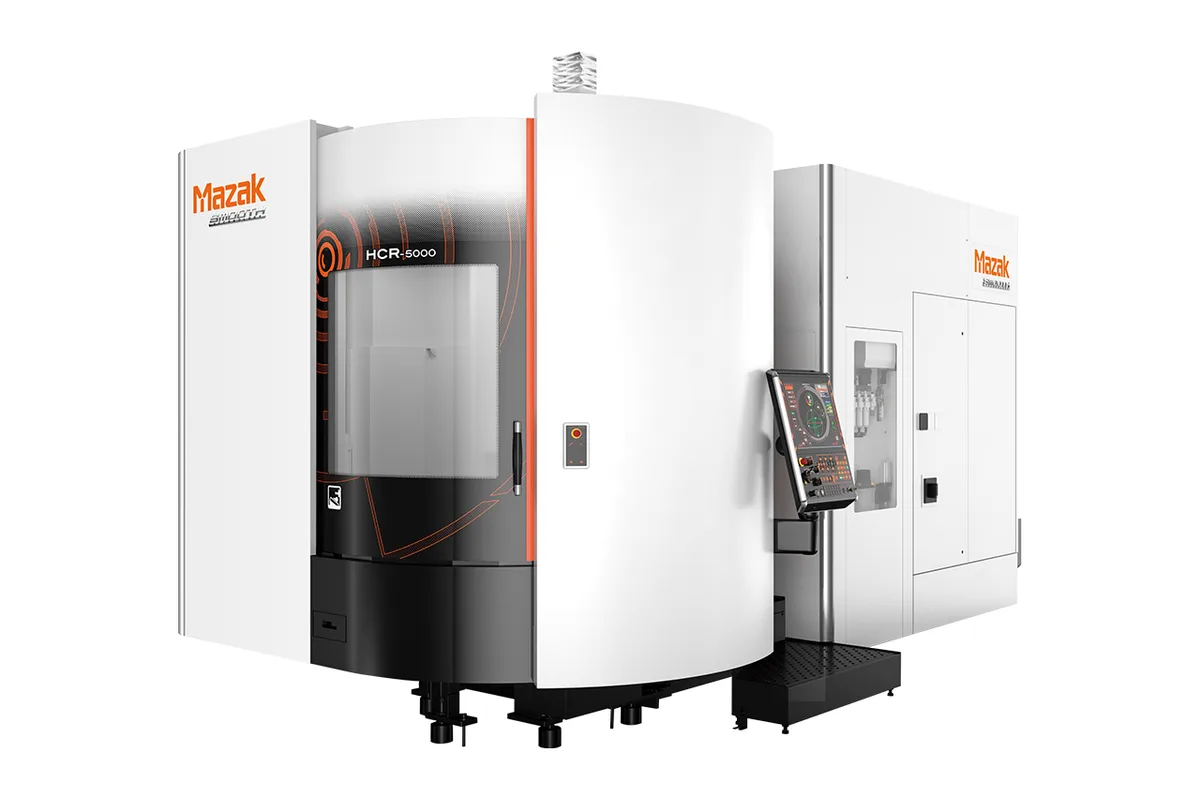

Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Mazak HCR-5000 cost?
Estimated price range
Our best estimate for a horizontal machining centers (hmc) in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak HCR-5000 is a 5-axis machining center with a horizontal spindle: the part rides on a tilting rotary table and the tool comes at it from the side, so chips fall away from the cut. The table is 19.69 in (500 mm) × 19.69 in (500 mm), carries 1,102 lb (500 kg) and takes a workpiece of Ø27.56 in (700 mm) × 25.34 in (644 mm). X, Y and Z each travel 29 in (737 mm), and Mazak lists the model with a 2 pallet changer.
The A axis tilts from -90° to +135°. Mazak's series page adds a full turn of C-axis rotation in either direction, roller gear cam drives on both rotary axes with 0.0001° positioning increments, and speeds of 30 rpm on A and 50 rpm on C. A tilt range that passes 90° on one side lets the tool reach undercut features without a second setup.
The basic spindle is CAT No.40 at 12,000 rpm, grease lubricated, rated 18.5 kW (25 HP) at 40% ED and 15 kW (20 HP) continuous, with 60 ft-lb (81 Nm) at 40% ED and 44 ft-lb (60 Nm) continuous. That is light for steel but adequate for aluminium structural parts. Mazak lists three optional spindles in the series: 18,000 rpm with 35 kW (47 HP) at 40% ED in CAT No.40, BIG-PLUS No.40 or HSK-A63; 25,000 rpm with 23 kW (30.6 HP) at 40% ED in HSK-A63; and 30,000 rpm with 80 kW (106.6 HP) continuous in HSK-A63. Linear rapids are 2,362 ipm (60 m/min).
Chip handling is a stated design point of the series: a centre trough with a chip conveyor, and a coolant tank of 800 L (211 gal) as a standard accessory to flush chips off the workpiece and pallet. The 40-tool magazine takes tools Ø4 in (102 mm), or Ø7 in (178 mm) beside empty pockets, 16 in (406 mm) long and 26 lb (12 kg).
The machine weighs 31,327 lb (14,210 kg), needs 124 in (3,150 mm) × 231 in (5,867 mm) of floor with the MAZATROL SmoothX control and is 109 in (2,769 mm) high.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 19.69 in (500 mm) × 19.69 in (500 mm) |
| Max Workpiece Size | Ø27.56 in (700 mm) × 25.34 in (644 mm) |
| Max Table Load | 1,102 lb (500 kg) |
| Spindle Taper | CAT No.40 |
| Max Spindle Speed | 12,000 rpm |
| Spindle Torque Intermittent | 60 ft-lb (81 Nm) (40% ED) |
| Spindle Torque | 44 ft-lb (60 Nm) continuous |
| Spindle Power Intermittent | 18.5 kW (25 HP) (40% ED) |
| Spindle Motor Power | 15 kW (20 HP) continuous |
| Tool Capacity | 40 tools |
| Max Tool Diameter (full magazine) | Ø4 in (102 mm) |
| Max Tool Diameter (adjacent pockets empty) | Ø7 in (178 mm) |
| Max Tool Length | 16 in (406 mm) |
| Max Tool Weight | 26 lb (12 kg) |
| X-Axis Travel | 29 in (737 mm) |
| Y-Axis Travel | 29 in (737 mm) |
| Z-Axis Travel | 29 in (737 mm) |
| A Axis Range | -90° - +135° |
| Rapid Traverse X | 2,362 ipm (60 m/min) |
| Rapid Traverse Y | 2,362 ipm (60 m/min) |
| Rapid Traverse Z | 2,362 ipm (60 m/min) |
| Floor Space Required | 124 in (3,150 mm) × 231 in (5,867 mm) (W × L, MAZATROL SmoothX) |
| Machine Height | 109 in (2,769 mm) |
| Machine Weight | 31,327 lb (14,210 kg) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- A-axis tilt from -90° to +135° on a rotary table that Mazak describes as roller gear cam driven with 0.0001° increments
- Horizontal spindle over a centre trough, with an 800 L (211 gal) coolant tank as a standard accessory in the series
- Listed with a 2 pallet changer, so the next part is set up during the cut
- Optional spindles in the series go to 30,000 rpm with 80 kW (106.6 HP) continuous in HSK-A63
- 2,362 ipm (60 m/min) rapids on X, Y and Z with 29 in (737 mm) of travel on each
Limitations
- The basic spindle delivers 44 ft-lb (60 Nm) continuous, which limits roughing in steel
- Table load is 1,102 lb (500 kg), fixture included
- Maximum tool length is 16 in (406 mm), shorter than the 20 in (508 mm) of the HCN-5000
- The 18,000 rpm, 25,000 rpm and 30,000 rpm spindles are options, not part of the basic model
Best For
Frequently Asked Questions
01
Mazak's table gives an A-axis range of -90° to +135°. The series page adds a full turn in either direction on the C axis, a roller gear cam system on both axes with 0.0001° positioning increments, and rotary speeds of 30 rpm on the A axis and 50 rpm on the C axis.
02
The table is 19.69 in (500 mm) × 19.69 in (500 mm). Maximum workpiece size is Ø27.56 in (700 mm) × 25.34 in (644 mm) and maximum table load is 1,102 lb (500 kg). Linear travel is 29 in (737 mm) on X, Y and Z.
03
The basic model has a grease-lubricated CAT No.40 spindle at 12,000 rpm with 18.5 kW (25 HP) at 40% ED and 15 kW (20 HP) continuous. Options in the series are an 18,000 rpm spindle with 35 kW (47 HP) at 40% ED (CAT No.40, BIG-PLUS No.40 or HSK-A63), a 25,000 rpm spindle with 23 kW (30.6 HP) at 40% ED (HSK-A63) and a 30,000 rpm spindle with 80 kW (106.6 HP) continuous (HSK-A63).
04
The HCN-5000 is a horizontal with 29 in (737 mm) × 29 in (737 mm) × 32 in (813 mm) travels and a weight of 25,198 lb (11,430 kg). The HCR-5000 replaces the pallet table with a tilting rotary table for 5-axis work, has 29 in (737 mm) on all three axes and weighs 31,327 lb (14,210 kg). Both tables show a 12,000 rpm CAT No.40 spindle at 15 kW (20 HP) continuous and a 40-tool magazine.
05
The HCR-5000 is listed with a 2 pallet changer. For the HCR-5000S the series page describes the MPP (MULTI PALLET POOL), with 6, 12 and 18 pallet storage capacities that can be added after installation. The PALLETECH SYSTEM, a modular pallet stocker with loader and loading station, is also described for the series.
