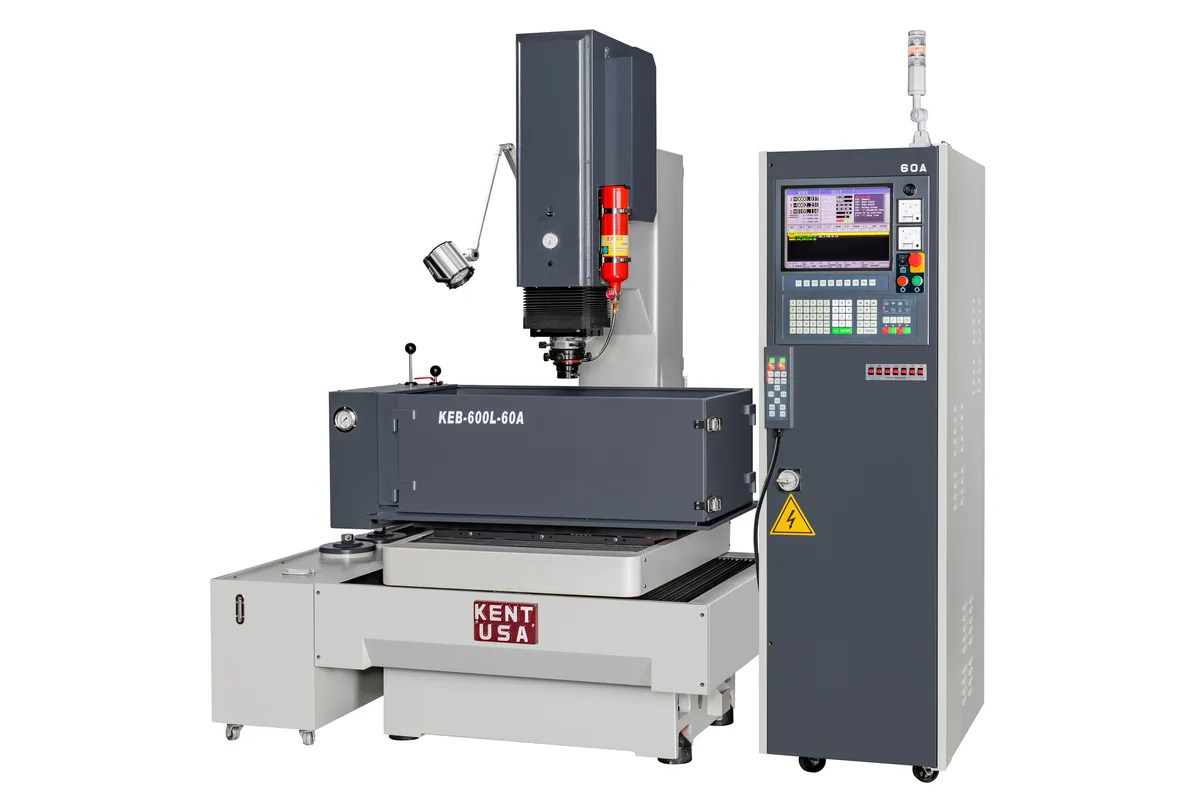

Kent CNC KEB-600L CNC
Image: kentusa.com, Kent CNC
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
work tank size
platen to table distance
How much does the Kent CNC KEB-600L CNC cost?
Price estimate
We do not have a price for the Kent CNC KEB-600L CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Kent CNC KEB-600L CNC is a sinker EDM with 16 x 12 x 12 in (406 x 305 x 305 mm) of X, Y and Z travel, a 28 x 16 in (711 x 406 mm) table and a 60 A maximum machining current, with 90 A available as an option. The work tank measures 43 x 24 x 16 in (1,092 x 610 x 406 mm).
Capacity is generous for the travels. The table carries 2,205 lb (1,000 kg), which is half the machine's own 4,409 lb (2,000 kg) weight, and the head takes an electrode of up to 220 lb (100 kg). The distance from platen to table adjusts from 8.3 to 25.2 in (211 to 640 mm), so tall mold blocks and long electrodes both have room. Keep in mind that the 16 in (406 mm) depth of the tank, not the table load, is what limits how tall a workpiece can sit under dielectric.
The generator uses a MOSFET discharge circuit and stores 256 programmable steps. Orbiting is listed as single or 3-axis lateral, in round and square patterns, which lets one electrode be orbited out to final size and helps flushing in closed cavities. The operator works from a 15 in color LCD. The dielectric tank holds 98 gal (371 L).
Three items in the table are options and should be settled before a quotation is compared: the 90 A current rating, an ATC with C-axis on System 3R or EROWA tooling, and an oil chiller. Without the ATC, electrodes are changed by hand, so long multi-electrode jobs will need an operator nearby. Long burns at high current put heat into the dielectric, which is the case for asking about the chiller.
The machine occupies 95 x 63 x 93 in (2,413 x 1,600 x 2,362 mm). The 93 in (2,362 mm) dimension deserves a check against door and ceiling clearance before delivery.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 16 in (406 mm) |
| Y Axis Travel | 12 in (305 mm) |
| Z Axis Travel | 12 in (305 mm) |
| Table Size | 28 x 16 in (711 x 406 mm) |
| Work Tank Size | 43 x 24 x 16 in (1,092 x 610 x 406 mm) |
| Platen to Table Distance | 8.3-25.2 in (211-640 mm) |
| Max Electrode Weight | 220 lb (100 kg) |
| Max Table Load | 2,205 lb (1,000 kg) |
| Max Machining Current | 60 A (opt. 90 A) |
| Dielectric Tank Capacity | 98 gal (371 L) |
| Discharge Circuit | MOSFET |
| Programmable Steps | 256 |
| Orbiting | Single or 3-axis lateral, round and square orbiting |
| Display | 15 in color LCD |
| Options | ATC and C-axis (System 3R / EROWA), oil chiller |
| Machine Dimensions | 95 x 63 x 93 in (2,413 x 1,600 x 2,362 mm) |
| Machine Weight | 4,409 lb (2,000 kg) |
Specifications sourced from kentusa.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 2,205 lb (1,000 kg) table load on a 28 x 16 in (711 x 406 mm) table
- Platen to table distance adjustable from 8.3 to 25.2 in (211 to 640 mm)
- Carries electrodes up to 220 lb (100 kg)
- MOSFET discharge circuit with 256 programmable steps and a 15 in color LCD
- Single or 3-axis lateral orbiting in round and square patterns
Limitations
- Standard maximum machining current is 60 A; 90 A is an option
- The ATC and C-axis (System 3R / EROWA) are options, as is the oil chiller
- Y and Z travel are both 12 in (305 mm), which limits deep or wide cavities
- Work tank depth of 16 in (406 mm) limits the height of a workpiece that can be covered with dielectric
Best For
Frequently Asked Questions
01
X travel is 16 in (406 mm), Y travel 12 in (305 mm) and Z travel 12 in (305 mm). The table is 28 x 16 in (711 x 406 mm) and sits in a work tank of 43 x 24 x 16 in (1,092 x 610 x 406 mm). The distance from platen to table ranges from 8.3 to 25.2 in (211 to 640 mm).
02
Maximum table load is 2,205 lb (1,000 kg) and maximum electrode weight is 220 lb (100 kg). The machine itself weighs 4,409 lb (2,000 kg), so a fully loaded table adds half as much again to the floor load.
03
The maximum machining current is 60 A as standard, and 90 A is listed as an option. The generator uses a MOSFET discharge circuit with 256 programmable steps. If the work includes large roughing electrodes, the 90 A option is the figure to ask about.
04
Both are options, not standard equipment. The table lists an ATC and C-axis for System 3R or EROWA tooling, together with an oil chiller, under options. Orbiting, by contrast, is part of the listed specification: single or 3-axis lateral, round and square.
05
The dielectric tank capacity is 98 gal (371 L). Machine dimensions are 95 x 63 x 93 in (2,413 x 1,600 x 2,362 mm) and the weight is 4,409 lb (2,000 kg), before dielectric, workpiece and electrode are added.
