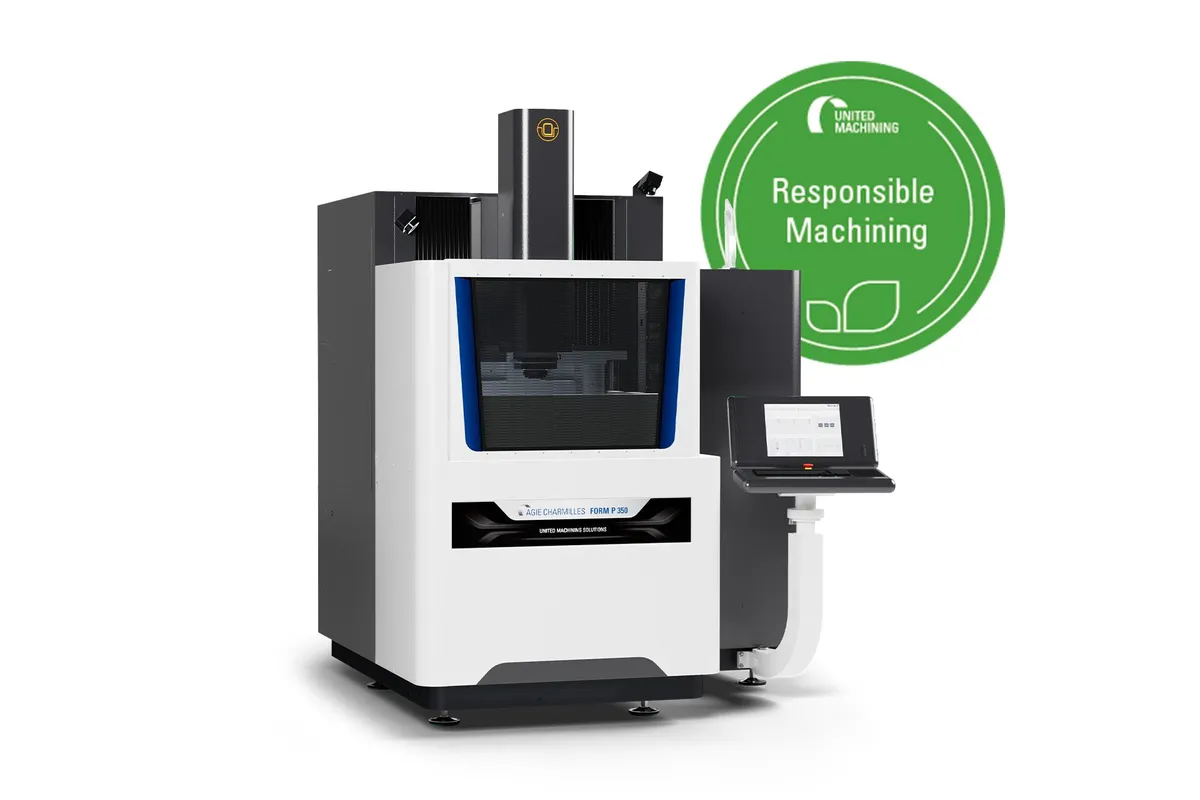

GF Machining AgieCharmilles FORM P 350
Key Specifications
X/Y/Z Travel
Max Workpiece Dimensions
Max Workpiece Weight
Max Electrode Weight
Surface Finish Ra
Dielectric Capacity
Overview
The GF Machining Solutions AgieCharmilles FORM P 350 is a compact performance-tier sinker EDM delivering IPG technology and ITM in a production package. X/Y/Z travels of 350 x 250 x 300 mm, max workpiece 700 x 460 x 285 mm at 500 kg. 410L dielectric, 50 kg electrodes, System 3R/Erowa compatible.
iGAP with IPG auto-selects discharge parameters. Ra 0.08 micron finish. ITM compensates for thermal variations. 2,800 kg, AC FORM CNC. Priced $150,000-$250,000.
Full Specifications
| Parameter | Value |
|---|---|
| X/Y/Z Travel | 350 x 250 x 300 mm (13.8 x 9.8 x 11.8 in) |
| Max Workpiece Dimensions | 700 x 460 x 285 mm (27.6 x 18.1 x 11.2 in) |
| Max Workpiece Weight | 500 kg (1,102 lb) |
| Max Electrode Weight | 50 kg (110 lb) |
| Surface Finish Ra | 0.08 µm |
| Dielectric Capacity | 410 L (109 gal) |
| Thermal Management | ITM with active compensation |
| Control System | AC FORM CNC |
| Power Supply | IPG with iGAP |
| Auto Electrode Changer | AEC option |
| Machine Dimensions | 1,900 x 1,690 x 2,398 mm |
| Machine Weight | 2,800 kg (6,173 lb) |
| Machine Dimensions | 2970 x 3100 x 3320 mm116.93 x 122.05 x 130.71 in |
| Total Weight | 7000 kg15432 lbs |
| Travel X Y Z | 900 x 700 x 500 mm35.43 x 27.56 x 19.68 in |
| Min Max Distance Between Table And Chuck | 322-822 mm12.68-32.36 in |
| Best Surface Finish Ra | 0.1 μm |
| Capacity | 2500 l662.5 gal |
| Max Workpiece Dimensions | 1670 x 1120 x 560 mm65.75 x 40.09 x 22.05 in |
| Max Workpiece Weight | 3000 kg6613.86 lbs |
| Max Electrode Weight | 50 kg110.23 lbs |
| Bath Level | 100 - 500 mm3.94 - 21.65 in |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- IPG with iGAP auto-optimizes discharge parameters
- ITM maintains accuracy across extended cycles
- Ra 0.08 µm meets precision requirements
- 500 kg workpiece, 50 kg electrode capacity
- System 3R/Erowa compatible
- AC FORM CNC reduces setup time
Limitations
- 350x250mm X/Y limits to small-medium cavities
- Higher pricing than FORM E 350
- 410L dielectric needs frequent maintenance
- Lacks 50nm positioning of FORM S 350
Best For
Frequently Asked Questions
01
Adds ITM, IPG, AEC. 20-40% more.
02
Intelligent gap control for real-time optimization.
03
Graphite and copper optimized.
04
System 3R, AEC, WorkShopManager.
