Johnford ST-60CX+B+C+Y

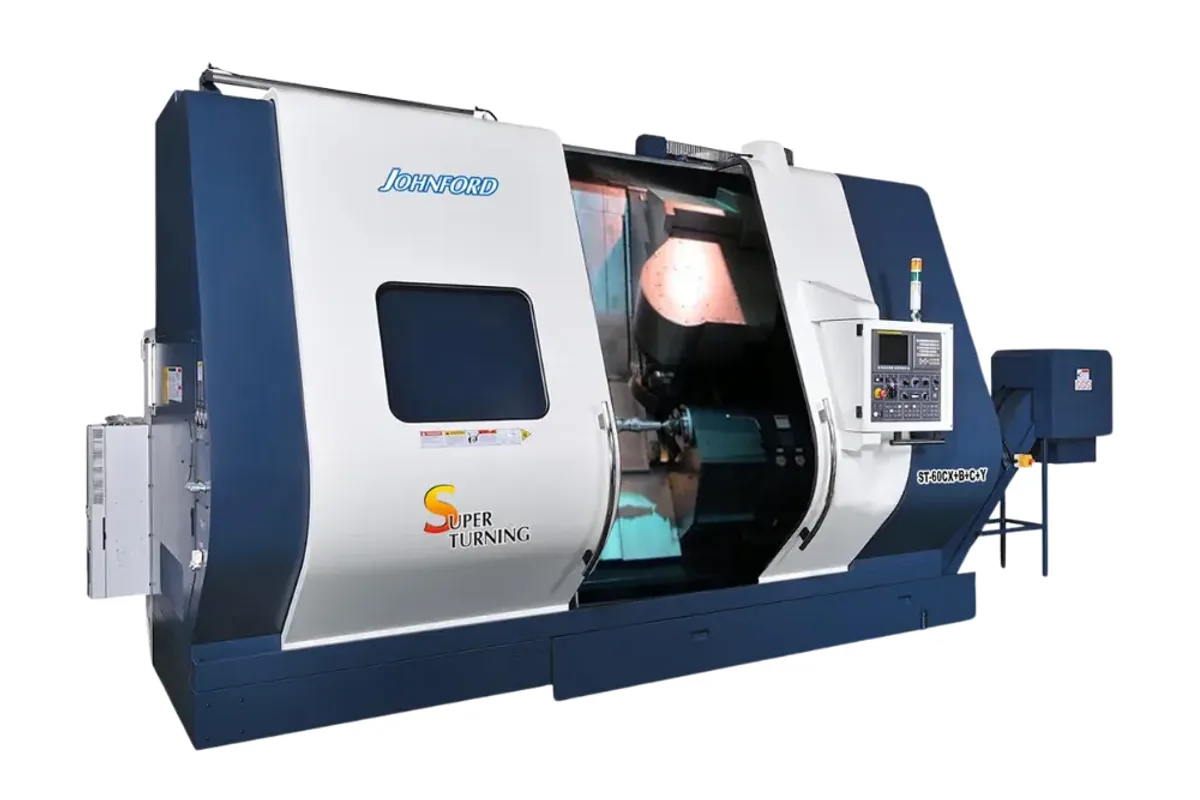

Image: johnford.com.tw, Johnford
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
swing over bed
max turning diameter
distance between centers
How much does the Johnford ST-60CX+B+C+Y cost?
Price estimate
We do not have a price for the Johnford ST-60CX+B+C+Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford ST-60CX+B+C+Y is the shortest machine of the ST Turn-Mill group: a 60° slant-bed lathe with 1,200 mm (47.2 in) between centers on which the turret is replaced by a B-axis milling/turning spindle and a tool magazine.
It keeps a full-size turning spindle. The chuck is 510 mm (20 in), the nose A2-15, the bore Ø152 mm (6 in) with Ø139 mm (5.5 in) bar capacity, and a 30 / 37 kW (40.2 / 49.6 hp) motor drives it through an auto 4-speed gearbox to 1,500 rpm. Swing over the bed is Ø1,200 mm (47.2 in) and maximum turning diameter Ø800 mm (31.5 in).
The tool spindle is an HSK-A100 unit rated 38 / 62 kW (51.0 / 83.1 hp) and 252 / 411 Nm (186 / 303 lb-ft) at up to 6,000 rpm. That is more power than the turning spindle has, which says how this machine is meant to be used: heavy milling, drilling and boring on a turned part, at any angle between -110° and +90° of B. Y travel is ±100 mm (±3.9 in).
With 24 tools the magazine is the smallest of the six ST Turn-Mill columns; the ST-160FX+B+C+Y has 40. Machine weight is 15,000 kg (33,069 lb), and the footprint is 5,532 x 2,270 mm (217.8 x 89.4 in).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø1,200 mm (Ø47.2 in) |
| Max Turning Diameter | Ø800 mm (Ø31.5 in) |
| Distance Between Centers | 1,200 mm (47.2 in) |
| Chuck Size | 510 mm (20 in) |
| Bar Capacity | Ø139 mm (Ø5.5 in) |
| Spindle Nose | A2-15 |
| Spindle Bore | Ø152 mm (Ø6 in) |
| Spindle Transmission | Auto 4-speed gearbox |
| Max Spindle Speed | 1,500 rpm |
| Spindle Motor Power | 30 / 37 kW (40.2 / 49.6 hp) |
| Milling Spindle Taper | HSK-A100 |
| Milling Spindle Power | 38 / 62 kW (51.0 / 83.1 hp) |
| Milling Spindle Torque | 252 / 411 Nm (186 / 303 lb-ft) |
| Milling Spindle Speed | 6,000 rpm |
| B Axis Range | -110°~+90° |
| B Axis Indexing | Every 5° (std.) 2.5° (opt.) |
| B Axis Positioning Hydraulic Brake | Free Angle 0.001° |
| C Axis Resolution | 0.001° |
| Tool Capacity | 24 |
| Max Tool Diameter (full magazine) | Ø125 mm (Ø4.9 in) |
| Max Tool Diameter Without Adjacent Tools | Ø200 mm (Ø7.9 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Max Tool Length | 400 mm (15.7 in) |
| X Axis Travel | +741 / -85 mm (+29.2 / -3.3 in) |
| Y Axis Travel | ±100 mm (±3.9 in) |
| Z Axis Travel | 1,200 mm (47.2 in) |
| Rapid Traverse Xyz | 10 / 10 / 10 m/min (394 / 394 / 394 ipm) |
| Tailstock Travel | 900 mm (35.4 in) |
| Tailstock Quill Travel | 150 mm (5.9 in) |
| Tailstock Quill Diameter | Ø200 mm (Ø7.9 in) |
| Tailstock Taper | MT#7 |
| Servo Motor X | 7 kW |
| Servo Motor Y | 4 kW |
| Servo Motor Z | 9 kW |
| Servo Motor B | 3 kW |
| Machine Weight | 15,000 kg (33,069 lb) |
| Bed Inclination | 60° |
| Machine Dimensions | 5,532 x 2,270 x 2,765 mm (217.8 x 89.4 x 108.9 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- HSK-A100 milling/turning spindle with 38 / 62 kW (51.0 / 83.1 hp) and 252 / 411 Nm (186 / 303 lb-ft)
- B-axis range of -110°~+90° with free-angle positioning to 0.001° under hydraulic brake
- 510 mm (20 in) chuck and Ø139 mm (5.5 in) bar capacity on the turning spindle
- Y travel of ±100 mm (±3.9 in)
- 15,000 kg (33,069 lb) and 5,532 mm (217.8 in) long, the smallest ST Turn-Mill
Limitations
- The magazine in this column holds 24 tools
- 1,200 mm (47.2 in) between centers; tailstock travel is 900 mm (35.4 in)
- Milling spindle tops out at 6,000 rpm
- Simultaneous 5-axis machining is an optional package; 4+1 axis is standard
Best For
Frequently Asked Questions
01
The machine has a B axis (the swivelling milling/turning spindle, -110°~+90°), a C axis on the main spindle with 0.001° resolution, and a Y axis with ±100 mm (±3.9 in) of travel, in addition to X and Z.
02
38 / 62 kW (51.0 / 83.1 hp) and 252 / 411 Nm (186 / 303 lb-ft), with a top speed of 6,000 rpm and an HSK-A100 taper. CAPTO C8 for the milling/turning spindle and ATC is listed as an option.
03
24 in this column of the table. Tools can be Ø125 mm (4.9 in) with adjacent tools or Ø200 mm (7.9 in) without, up to 400 mm (15.7 in) long and 15 kg (33 lb). ATC systems with 60, 80, 100 or more tools are listed as available.
04
The standard accessory list names a 4+1 axis machining package. A simultaneous 5-axis machining package is on the optional list. The B axis indexes every 5° as standard, or 2.5° as an option, and can be clamped at a free angle by hydraulic brake.
