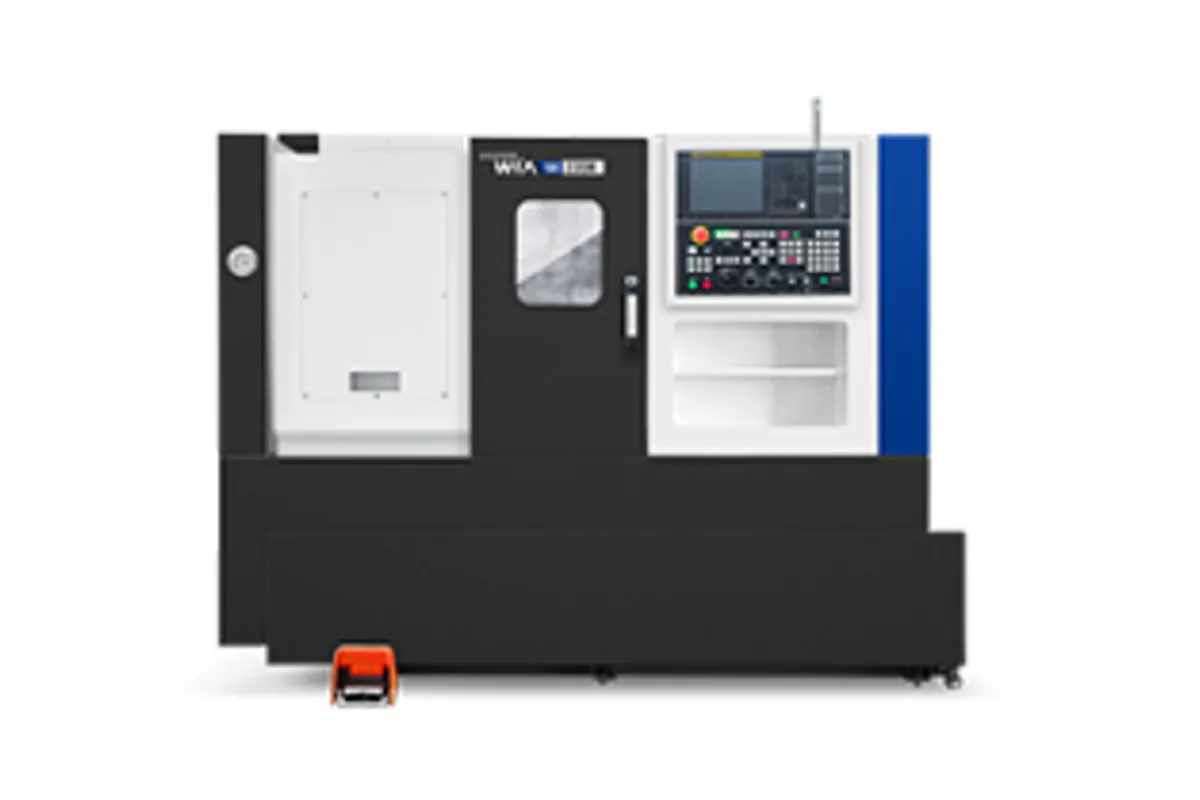

Hyundai WIA SE2208/M/L/LM
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle torque
Overview
The Hyundai WIA SE2208 Series comprises four CNC turning center variants — SE2208, SE2208M, SE2208L, and SE2208LM — featuring an 8-inch chuck and 45-degree slant bed with linear motion guideways. Sharing the SE2008's fast 36 m/min rapid traverse on both axes, the SE2208 steps up to an 8-inch chuck for shops that need more clamping force and larger part capacity while retaining exceptional positioning speed.
The standard-bed models (SE2208, SE2208M) feature a 15/11 kW (20/15 hp) spindle at 4,000 RPM with 143.3/78.8 Nm torque. Long-bed variants (SE2208L, SE2208LM) increase power to 18.5/15 kW (25/20 hp) at 4,000 RPM with 176.7/107.4 Nm torque, reflecting the higher demands of machining longer workpieces. Maximum turning diameter is 370 mm (14.6 in) on standard models and 320 mm (12.6 in) on milling variants.
Standard-bed models provide 330 mm (13 in) turning length while long-bed variants extend to 580 mm (22.8 in) for shaft-type components. The 12-station turret accepts 25/40 mm tooling on standard models and 20/32 mm on milling variants, with 6,000 RPM live tooling on the M and LM configurations. X-axis travel is 210 mm across all models, with Z-axis travel of 330 mm (standard) or 580 mm (long-bed).
Pricing ranges from approximately $60,000-$100,000 new. The SE2208 family competes with the DN Solutions Lynx 2100B/MB/LC series, Haas ST-15/ST-20, and similar 8-inch chuck production lathes. The combination of 36 m/min rapids, 8-inch chuck, and four configuration options makes the SE2208 an efficient platform for production shops that value speed and flexibility.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 370 mm (14.6 in) / 320 mm (12.6 in) M-variants |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 4,000 RPM |
| Spindle Motor Power | 15/11 kW (20/15 hp) standard / 18.5/15 kW (25/20 hp) L-variants |
| Spindle Torque | N.m |
| X Axis Travel | 210 mm (8.3 in) |
| Z Axis Travel | 330 mm (13 in) / 580 mm (22.8 in) L-variants |
| Rapid Traverse X | 36 m/min (1,417 ipm) |
| Rapid Traverse Z | 36 m/min (1,417 ipm) |
| Turret Stations | 12 |
| Tool Size | mm |
| Milling Tool Speed | r/min |
| Guideway Type | Linear motion guides |
| Bed Angle | 45 degrees |
| Spindle Drive | Belt driven |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 36 m/min rapid traverse on both axes is among the fastest in the 8-inch chuck lathe class
- Long-bed variants increase spindle power to 18.5 kW with 176.7 Nm torque for heavier cutting on longer parts
- Four configurations (standard/long-bed, turning/milling) enable fleet standardization across diverse requirements
- 370 mm max turning diameter on standard models exceeds most competitors in the 8-inch chuck segment
- 12-station turret with optional 6,000 RPM live tooling enables done-in-one operations
- 8-inch chuck provides substantially more clamping force than the 6-inch SE2008 for larger workpieces
Limitations
- 4,000 RPM spindle speed is lower than the SE2008's 6,000 RPM — limits surface speed on small diameters
- Standard-bed 330 mm turning length may be insufficient for shops running longer parts regularly
- Milling variants reduce max turning diameter from 370 mm to 320 mm
- LM guides may not provide the vibration damping of box ways for extremely heavy interrupted cuts
Best For
Frequently Asked Questions
01
Both have 8-inch chucks, but the SE2208 uses a 45-degree bed with LM guides and 36 m/min rapids, while the SE2200 uses a 30-degree bed with roller guideways at 36 m/min on Z but 30 m/min on X. The SE2208 runs at 4,000 RPM vs the SE2200's 4,500 RPM. The SE2208 is faster on X-axis positioning while the SE2200 offers slightly higher spindle speed and roller guideway rigidity.
02
SE2208 is standard 2-axis (330 mm turning length, 15 kW). SE2208M adds live tooling. SE2208L extends to long bed (580 mm, 18.5 kW). SE2208LM combines long bed with live tooling. All share the 8-inch chuck and 4,000 RPM spindle.
03
The SE2208L and SE2208LM increase from 15 kW to 18.5 kW and from 143.3 Nm to 176.7 Nm torque. This extra power supports efficient cutting across the longer Z-axis travel and accommodates the heavier workpieces typically machined on long-bed configurations.
04
Pricing ranges from $60,000-$100,000 new. The base SE2208 is at the lower end (~$60K-$70K), while the SE2208LM with long bed and live tooling reaches $90K-$100K. Options like chip conveyor, bar feeder interface, and tailstock add to the base price.
