Hyundai WIA HD-Y Series
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
max turning diameter
chuck size
Overview

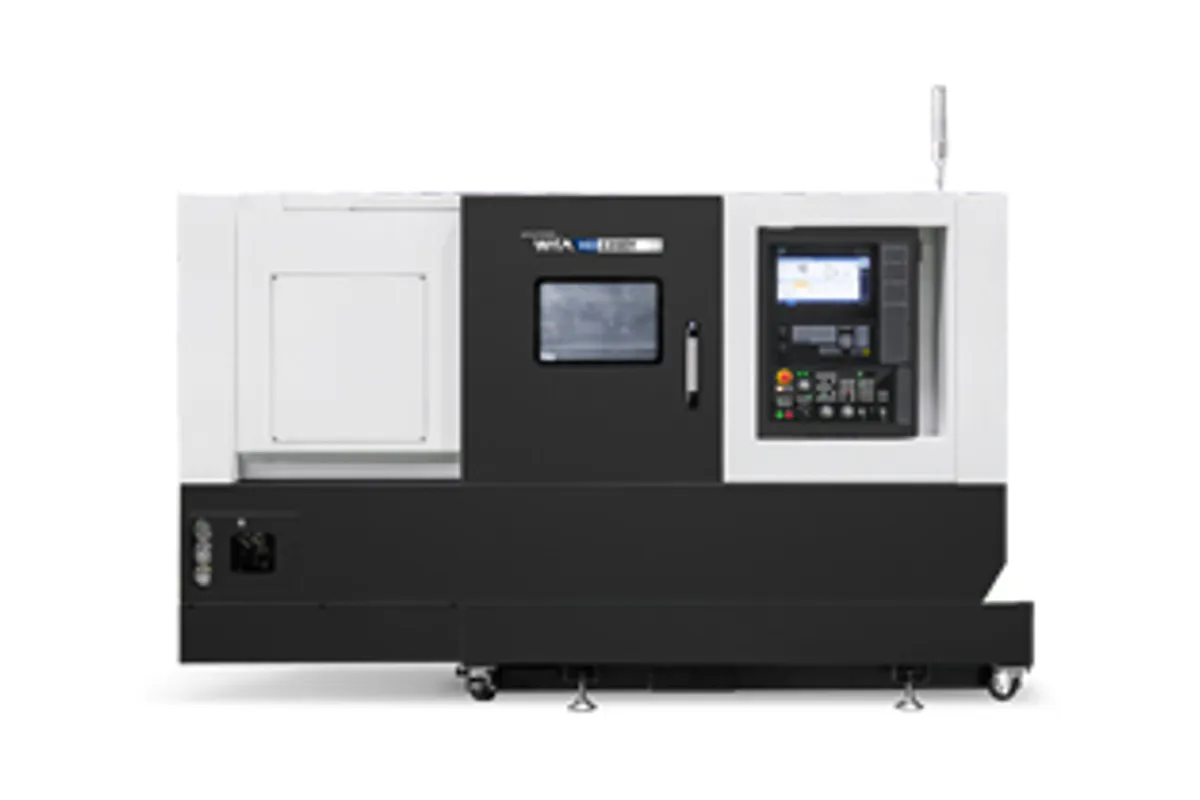

The Hyundai WIA HD-Y Series is a family of four heavy-duty CNC turning centers with Y-axis milling capability, built on box way construction for maximum rigidity during combined turning and milling operations. The series includes the HD2200Y (8-inch chuck), HD2600Y (10-inch chuck), HD3100YA (10-inch chuck), and HD3100Y (12-inch chuck), spanning the full range of medium to large heavy-duty Y-axis turning.
The HD2200Y and HD2600Y share an 18.5/15 kW (25/20 hp) spindle. The HD2200Y runs at 4,000 RPM with 206.2/125.4 N.m torque through an 8-inch chuck, while the HD2600Y delivers substantially more torque at 400.7/243.7 N.m through a 10-inch chuck at 3,500 RPM. Both offer 300 mm max turning diameter with 610 mm turning length and X/Y/Z travel of 215/110/680 mm. The larger HD3100YA (10-inch) and HD3100Y (12-inch) step up to 26/18.5 kW (35/25 hp) spindle power with 420 mm turning diameter and 760 mm turning length. The HD3100Y with 12-inch chuck delivers an impressive 1,051/672 N.m of torque at 2,800 RPM.
All four models feature box way guideways for superior vibration damping during heavy interrupted cuts, 12-station turrets with BMT55P wedge-type Y-axis tooling, and live milling capability at 6,000 RPM (HD2200Y/HD2600Y) or 5,000 RPM (HD3100YA/HD3100Y). Rapid traverse is 24/10/30 m/min on X/Y/Z across all models. The wedge-type Y-axis turret provides significantly better rigidity than standard VDI turrets for milling operations.
New HD-Y Series machines price between $100,000 and $200,000 depending on model and options. The series competes with the DN Solutions Puma 2600Y, Mazak Quick Turn 250MY, and Okuma LB3000 EX MY. For shops needing heavy-duty Y-axis turning capability with the vibration damping advantages of box way construction, the HD-Y Series delivers a compelling combination of rigidity, milling capability, and Korean value pricing.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 300 mm (11.8 in) HD2200Y/HD2600Y / 420 mm (16.5 in) HD3100YA/HD3100Y |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 4,000 RPM (HD2200Y) / 3,500 RPM (HD2600Y/HD3100YA) / 2,800 RPM (HD3100Y) |
| Spindle Motor Power | 18.5/15 kW (HD2200Y/HD2600Y) / 26/18.5 kW (HD3100YA/HD3100Y) |
| Spindle Torque | N.m |
| X Axis Travel | 215 mm (8.5 in) HD2200Y/HD2600Y / 265 mm (10.4 in) HD3100YA/HD3100Y |
| Y Axis Travel | 110 mm (4.3 in) HD2200Y/HD2600Y / 120 mm (4.7 in) HD3100YA/HD3100Y |
| Z Axis Travel | 680 mm (26.8 in) HD2200Y/HD2600Y / 830 mm (32.7 in) HD3100YA/HD3100Y |
| Rapid Traverse Rate | 24/10/30 m/min X/Y/Z (all models) |
| Turret Stations | 12 |
| Turret Type | BMT55P wedge-type Y-axis |
| Tool Size | mm |
| Live Tool Speed | 6,000 RPM (HD2200Y/HD2600Y) / 5,000 RPM (HD3100YA/HD3100Y) |
| Guideway Type | Box ways (all axes) |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Milling Tool Speed | r/min |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Box way construction on all axes provides superior vibration damping for heavy interrupted cuts during combined turning and milling
- Four chuck sizes (8/10/10/12 inch) allow shops to right-size the machine to their specific workpiece diameter requirements
- BMT55P wedge-type Y-axis turret delivers significantly better milling rigidity than standard VDI turrets
- HD3100Y with 12-inch chuck delivers 1,051 N.m torque for aggressive roughing on the largest workpieces
- 6,000 RPM live tooling on HD2200Y/HD2600Y enables productive milling, drilling, and tapping operations
- 15-25% price advantage over comparable Japanese Y-axis turning centers with box way construction
Limitations
- Box ways require periodic adjustment and re-scraping over time compared to maintenance-free linear guides
- 24 m/min X-axis rapid traverse is slower than linear guide machines, increasing non-cutting time on short-cycle work
- No sub-spindle option in the HD-Y Series — shops needing backworking should consider the HD-SY or L-SY series
- Hyundai WIA North American service network is smaller than Haas, Mazak, or Okuma dealership coverage
Best For
Frequently Asked Questions
01
HD2200Y: 8-inch chuck, 4,000 RPM, 206 N.m torque, 6,000 RPM live tooling. HD2600Y: 10-inch chuck, 3,500 RPM, 401 N.m torque, 6,000 RPM live tooling. HD3100YA: 10-inch chuck, 3,500 RPM, 734 N.m torque, 5,000 RPM live tooling with more travel. HD3100Y: 12-inch chuck, 2,800 RPM, 1,051 N.m torque, 5,000 RPM live tooling. Each step up adds clamping force and torque.
02
The HD-Y Series adds Y-axis travel (110-120 mm) and a BMT55P wedge-type turret with live tooling capability. Standard HD Series machines are 2-axis turning only (or basic milling without Y-axis). The Y-axis enables off-center milling, cross-drilling, and complex contouring operations that would otherwise require a secondary milling machine.
03
The HD2200Y starts around $100,000-$130,000. The HD2600Y runs $120,000-$155,000. The HD3100YA prices at $145,000-$180,000, and the HD3100Y with 12-inch chuck reaches $170,000-$200,000. Options like high-pressure coolant, chip conveyor, and bar feeder interface add to the base price.
04
The BMT55P wedge-type turret clamps the tool holder with a wedge mechanism that provides significantly more rigidity than standard VDI bolt-on turrets. This rigidity translates to less deflection during milling operations, enabling heavier cuts and better surface finishes. The turret design also provides faster tool indexing and better repeatability.
