HNK VTC-80/100
Key Specifications
table diameter
max swing cutting diameter
max turning height
table speed turning 2 steps
max table load
c axis table speed
How much does the HNK VTC-80/100 cost?
Price estimate
We do not have a price for the HNK VTC-80/100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK VTC-80/100 puts the most powerful milling spindle of the VTC series over an 8,000 mm (315.0 in) table. The milling motor is A.C 45/55 kW (60.3/73.8 hp), cont/30min, at up to about 1,500 rpm with an ISO 50 taper. Only the VTC-100/160 matches it.
Everything about the machine is sized for parts that cannot go anywhere else. Swing and cutting diameter are 10,000 mm (393.7 in). Turning height is 6,000 mm (236.2 in). The table takes 350,000 kg (771,605 lb) and is turned by a D.C 265 kW (355.4 hp) motor at up to about 20 rpm in two steps. Moving such a part to a second machine for milling is rarely practical, which is the case for having the spindle here.
Reach is the constraint to study. The cross rail moves 500 mm (19.7 in) x 9 steps, and Z travel is 2,200, 2,500, 3,000 or 3,500 mm (86.6, 98.4, 118.1 or 137.8 in), against a turning height of 6,000 mm. Horizontal travel is -300 to +5,350 mm (-11.8 to +210.6 in).
The ram is 400 x 400, 500 x 500 or 600 x 600 mm (15.7 x 15.7, 19.7 x 19.7 or 23.6 x 23.6 in), and turning tools have 60 x 60 mm (2.4 x 2.4 in) shanks. The table indexes at 0.001 degree and turns at 0 to 0.3 rpm as a C-axis. Fanuc 31i-B and Siemens 840D are listed.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | 8,000 mm (315.0 in) |
| Max Swing Cutting Diameter | 10,000 mm (393.7 in) |
| Max Turning Height | 6,000 mm (236.2 in) |
| Table Speed Turning 2 Steps | Max. ~20 rpm |
| Max Table Load | 350,000 kg (771,605 lb) |
| C Axis Table Speed | 0 ~ 0.3 rpm |
| C Axis Indexing | 0.001˚ |
| Table Drive Motor | D.C 265 kW (355.4 hp) (cont/30min) |
| X Axis Travel | -300 ~ +5,350 mm (-11.8 ~ +210.6 in) |
| Z Axis Travel | 2,200/2,500/3,000/3,500 mm (86.6/98.4/118.1/137.8 in) |
| Milling Spindle Speed | Max.~1,500 rpm |
| Milling Spindle Motor | A.C 45/55 kW (60.3/73.8 hp) (cont/30min) |
| Milling Spindle Taper | ISO 50 |
| Ram Size | 400 x 400/500 x 500/600 x 600 mm (15.7 x 15.7/19.7 x 19.7/23.6 x 23.6 in) |
| Tool Shank Size | 60 x 60 mm (2.4 x 2.4 in) |
| Cross Rail Vertical Travel | 500 mm (19.7 in) x 9 steps |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- A.C 45/55 kW (60.3/73.8 hp) milling motor, the highest in the VTC series
- 350,000 kg (771,605 lb) table load
- 10,000 mm (393.7 in) swing and 6,000 mm (236.2 in) turning height
- Cross rail moves 500 mm (19.7 in) x 9 steps
Limitations
- Milling speed is about 1,500 rpm at most
- Z travel tops out at 3,500 mm (137.8 in) under a 6,000 mm (236.2 in) turning height
- D.C table drive; about 20 rpm maximum
Best For
Frequently Asked Questions
01
An ISO 50 spindle with a maximum of about 1,500 rpm and an A.C 45/55 kW (60.3/73.8 hp) motor on a cont/30min basis. The VTC-60/70 one size down has A.C 37/45 kW (49.6/60.3 hp).
02
Up to 10,000 mm (393.7 in) in swing and cutting diameter, 6,000 mm (236.2 in) in height and 350,000 kg (771,605 lb) in weight on the 8,000 mm (315.0 in) table.
03
Only within reach of the rail and ram. The rail moves 500 mm (19.7 in) x 9 steps and the longest listed Z travel is 3,500 mm (137.8 in). Check the lowest milled feature against those two figures with HNK before fixing the specification.
04
A D.C motor of 265 kW (355.4 hp), giving a turning speed of up to about 20 rpm in two steps. For milling and drilling the table is positioned as a C-axis at 0 to 0.3 rpm.
More from HNK
Other CNC Lathes / Turning Centers
Quicktech T8-C / T6-C
Johnford SL-100A-2S
Takamaz XTL-8MY

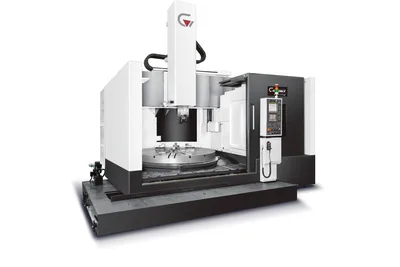

Goodway GVF-1215
