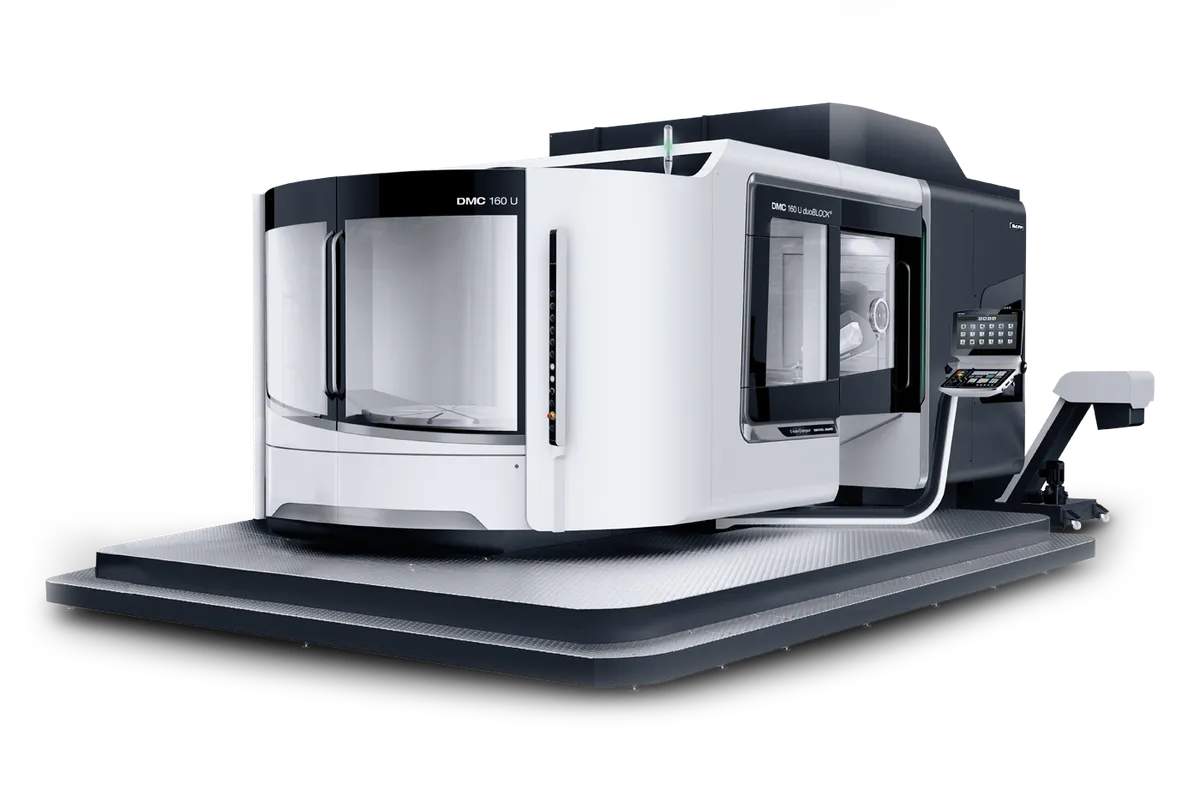

DMG Mori DMC 160 u FD duoBLOCK

$1,200,000 - $1,800,000 Updated 2026-03-19

Key Specifications

X Travel

1,600 mm (63.0 in)

Y Travel

1,600 mm (63.0 in)

Z Travel

1,100 mm (43.3 in)

Spindle Taper

HSK-A100

Tool Capacity

Up to 453 tools (wheel magazine)

Rapid Traverse

60 m/min (2,362 ipm)

Overview

The DMG Mori DMC 160 u FD duoBLOCK is the largest machine in the duoBLOCK 5-axis lineup, delivering a massive 1,600 x 1,600 x 1,100 mm (63 x 63 x 43.3 in) work envelope with integrated mill-turn capability. This platform bridges the gap between the standard duoBLOCK machines and the portal-class DMU/DMC 210 series, handling workpieces up to 1,600 mm (63 in) diameter, 1,350 mm (53.1 in) height, and 4,000 kg (8,819 lb) in standard milling mode or 3,500 kg (7,716 lb) in FD mill-turn configuration.

The duoBLOCK split-column design with three guide ways per axis on the Y-axis provides extraordinary rigidity for this machine class. The powerMASTER motor spindle delivers 77 kW (103 hp) with 1,000 Nm (738 ft-lb) through HSK-A100, while the 5X torqueMASTER gear spindle option reaches 1,800 Nm (1,328 ft-lb) for maximum roughing performance in titanium and Inconel. These spindle forces, combined with the duoBLOCK construction, enable metal removal rates that approach portal-class machines.

The FD DirectDrive table rotates at up to 400 RPM for turning operations on large workpieces. At this scale, integrating turning eliminates extremely costly and time-consuming workpiece transfers between a large 5-axis center and a heavy-duty vertical turning lathe. Parts like large turbine discs, engine casings, and massive valve bodies benefit enormously from single-setup combined machining.

The tool magazine holds up to 453 tools in the wheel configuration with 5.6-second chip-to-chip change time. Water-cooled feed drives and the Spindle Growth Sensor maintain thermal stability essential when machining to tight tolerances on parts this large, where thermal drift at the tool tip has the most severe impact. A compact rotating pallet changer comes standard.

Control options include SIEMENS SINUMERIK ONE or HEIDENHAIN TNC7 with CELOS X. The DMC 160 u FD duoBLOCK is the choice for shops needing the biggest possible work envelope within the duoBLOCK platform architecture before stepping up to the portal-class DMC 210 or DMC 270 series.

Full Specifications

Parameter	Value
X-Axis Travel	1,600 mm (63.0 in)
Y-Axis Travel	1,600 mm (63.0 in)
Z-Axis Travel	1,100 mm (43.3 in)
Max Workpiece Diameter	1,600 mm (63.0 in)
Max Workpiece Height	1,350 mm (53.1 in)
Max Table Load	4,000 kg (8,819 lb) milling / 3,500 kg (7,716 lb) FD
Spindle Motor Power	77 kW / 103 hp (powerMASTER)
Spindle Torque	1,000 Nm / 738 ft-lb (powerMASTER)
Torquemaster Torque	1,800 Nm / 1,328 ft-lb (5X torqueMASTER)
Spindle Taper	HSK-A100
Directdrive Table Speed	Up to 400 RPM
Tool Capacity	Up to 453 tools (wheel magazine)
Tool Change Time	5.6 seconds chip-to-chip
Rapid Traverse Rate	60 m/min (2,362 ipm)
Coolant System	Water-cooled feed drives, SGS spindle compensation
CNC Control	SIEMENS SINUMERIK ONE / HEIDENHAIN TNC7 with CELOS X
1600 Mm	63 in.
1100 Mm	43.3 in.
1350 Mm	53.1 in.
4000 Kg	8818.5 lbs.
Customer Benefits	User Interface
3500 Kg	7716.2 lbs.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,600 x 1,600 x 1,100 mm travel is the largest in the duoBLOCK lineup, handling workpieces that no smaller duoBLOCK can accommodate
4,000 kg milling table load supports the heaviest forgings, castings, and mold bases in the duoBLOCK class
FD mill-turn at up to 400 RPM eliminates costly transfers between a 5-axis center and vertical turning lathe for large parts
TorqueMASTER at 1,800 Nm delivers portal-class roughing performance in titanium and Inconel
453-tool magazine and standard pallet changer enable automated production of complex large-format parts
DuoBLOCK construction maintains rigidity advantages over portal machines at a lower price point

Limitations

Price above $1.2M approaches portal-class machine territory, requiring careful justification against the DMC 210 portal
3,500 kg FD table load limit may constrain some large turning applications -- the DMC 210 FD handles 4,000-5,000 kg
Machine footprint and weight require significant foundation work and dedicated floor space
400 RPM max table speed in FD mode limits turning productivity on smaller-diameter features compared to dedicated lathes
Lead times and spare parts availability can be extended for this specialized large-format machine class

Best For

Aerospace manufacturers machining large engine casings, landing gear components, and structural parts requiring 5-axis mill-turn Power generation companies machining large turbine discs, generator housings, and compressor components Oil and gas manufacturers producing large subsea valves, wellhead components, and blowout preventer parts Mold and die shops producing the largest injection molds and forging dies that fit within the duoBLOCK platform Shops requiring the maximum duoBLOCK work envelope before stepping up to portal-class machines

Frequently Asked Questions

01 What does a DMG Mori DMC 160 u FD duoBLOCK cost?

New machines typically range from $1,200,000 to $1,800,000 depending on spindle selection, tool magazine, automation, and accuracy packages. A fully configured machine with torqueMASTER spindle, 453-tool magazine, and full automation approaches $1.8M.

02 DMC 160 u FD duoBLOCK vs DMC 210 u FD portal -- which do I need?

The DMC 160 u FD handles workpieces up to 1,600 mm diameter and 4,000 kg (3,500 kg FD). The DMC 210 u FD portal extends to 2,500 mm diameter and 6,000 kg (4,000 kg FD) with 2,100 mm X-travel. If your parts fit within 1,600 mm and 3,500 kg FD, the duoBLOCK is the more cost-effective choice.

03 Can this machine replace a vertical turning lathe?

For parts requiring both 5-axis milling and turning, yes. The FD DirectDrive table at 400 RPM handles facing, OD turning, and boring on large workpieces. For pure high-volume turning production, a dedicated VTL remains more cycle-time efficient.

04 What accuracy levels are achievable?

Standard positioning accuracy is competitive for the machine class, with optional accuracy packages including thermal compensation, volumetric error mapping, and laser calibration. Water-cooled feed drives and SGS spindle compensation maintain accuracy through extended production runs.
