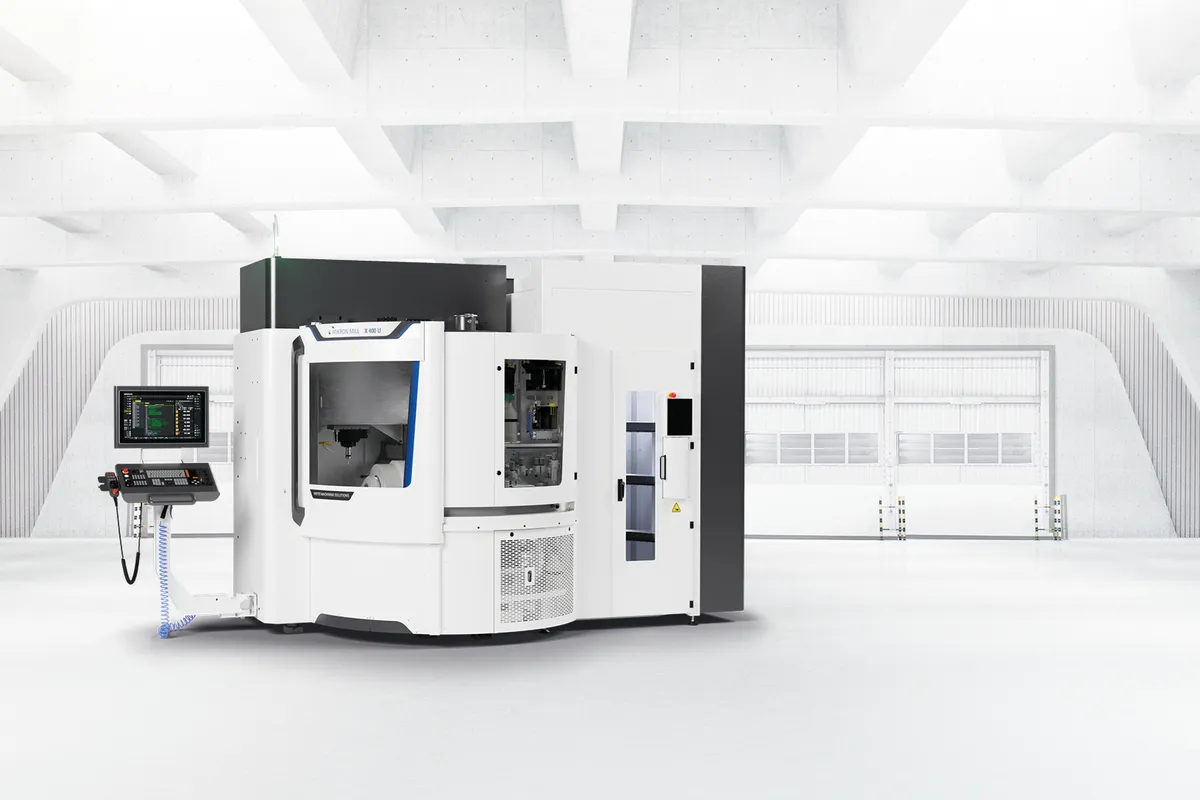

GF Machining MIKRON MILL S 400 U
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The GF Machining Solutions Mikron MILL S 400 U is a compact, ultra-high-speed 5-axis machining center for micro-precision mold/die work, medical tooling, and watch components. With travels of 500 x 245 x 360 mm (19.7 x 9.6 x 14.2 in), it trades envelope size for exceptional dynamic stiffness at spindle speeds up to 42,000 RPM.
The trunnion table accepts 25 kg (55 lb) on MacroMagnum 156 or ITS 148 pallets, with A-axis +110/-110 deg and continuous C-axis. The 220-deg range enables deep-cavity access without refixturing.
Standard 30,000 RPM Step-Tec/13.5 kW/HSK-E40 handles hardened steel finishing and graphite. Optional 42,000 RPM for micro-milling achieving Ra 0.05-0.1 um. Rapid: 61 m/min. Magazine: 68/168. TNC 7 or SINUMERIK ONE. At 7,000 kg. Pricing: $350,000-$550,000.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 500 mm (19.7 in) |
| Y-Axis Travel | 245 mm (9.6 in) |
| Z-Axis Travel | 360 mm (14.2 in) |
| Pallet Interface | MacroMagnum 156 / ITS 148 |
| Table Load Capacity | 25 kg (55 lb) including pallet |
| A Axis Swivel Range | +110 deg / -110 deg |
| C Axis Rotation | n x 360 deg (continuous) |
| Max Spindle Speed | 30,000 RPM (42,000 RPM option) |
| Spindle Taper | HSK-E40 |
| Spindle Motor Power | 13.5 kW (18 hp) |
| Spindle Torque | 8.8 Nm |
| Spindle Technology | Step-Tec precision spindle |
| Tool Capacity | 68/168 (HSK-E40)15/30/60/120/170/220 (HSK-E50) |
| Rapid Traverse Rate | 61 m/min (2,402 ipm) |
| Machine Weight | 7,000 kg (15,432 lb) |
| CNC Control | Heidenhain TNC 7 / Siemens SINUMERIK ONE |
| Travel Xyz | 800 x 600 x 500 mm31.5 x 23.62 x 19.68 in |
| Swiveling Range | +30°-110° |
| Rotary Range | n x 360° |
| Rapid Traverse Xyz | 61 m/min (MILL S)2,401 in/min100 m/min (MILL X)3,937 in/min |
| Rapid Traverse Swiveling Rotating | 60 / 150 rpm |
| Working Spindle | 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm |
| Pallet Clamping Surface | Dynafix 280 x 280/350 x 350GPS 240 x 240UPC 320 x 320 |
| Max Load | 120 kg264 lbs |
| Machine Weight | 9,900 kg21,825 lbs |
| Control Unit | Heidenhain TNC 7Siemens SINUMERIK ONE |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 42,000 RPM Step-Tec achieves Ra 0.05-0.1 um on hardened steel eliminating hand polishing
- 220-deg A-axis swivel provides widest rotary access in this size class
- TNC 7 or SINUMERIK ONE latest-generation controls with Smart Machine monitoring
- 168-pocket HSK-E40 magazine for unattended overnight production
- 7,000 kg compact footprint fits existing shops
- System 3R automation compatibility for lights-out production
Limitations
- 25 kg table and 500 x 245 mm restrict to small components only
- HSK-E40 requires dedicated toolholder inventory
- 8.8 Nm torque limits roughing -- finishing platform only
- $350K-$550K requires clear micro-milling workload
Best For
Frequently Asked Questions
01
Same envelope. S: 61 m/min for finish. X: 100 m/min for 10-20% cycle time savings.
02
Yes -- primary intent. Ra 0.05-0.1 um up to 62 HRC. Roughing done separately.
03
MacroMagnum/ITS with System 3R WorkShopManager. 168-pocket magazine.
04
Maximizes stiffness and thermal stability. MILL S 600 U offers 600 mm Y.
