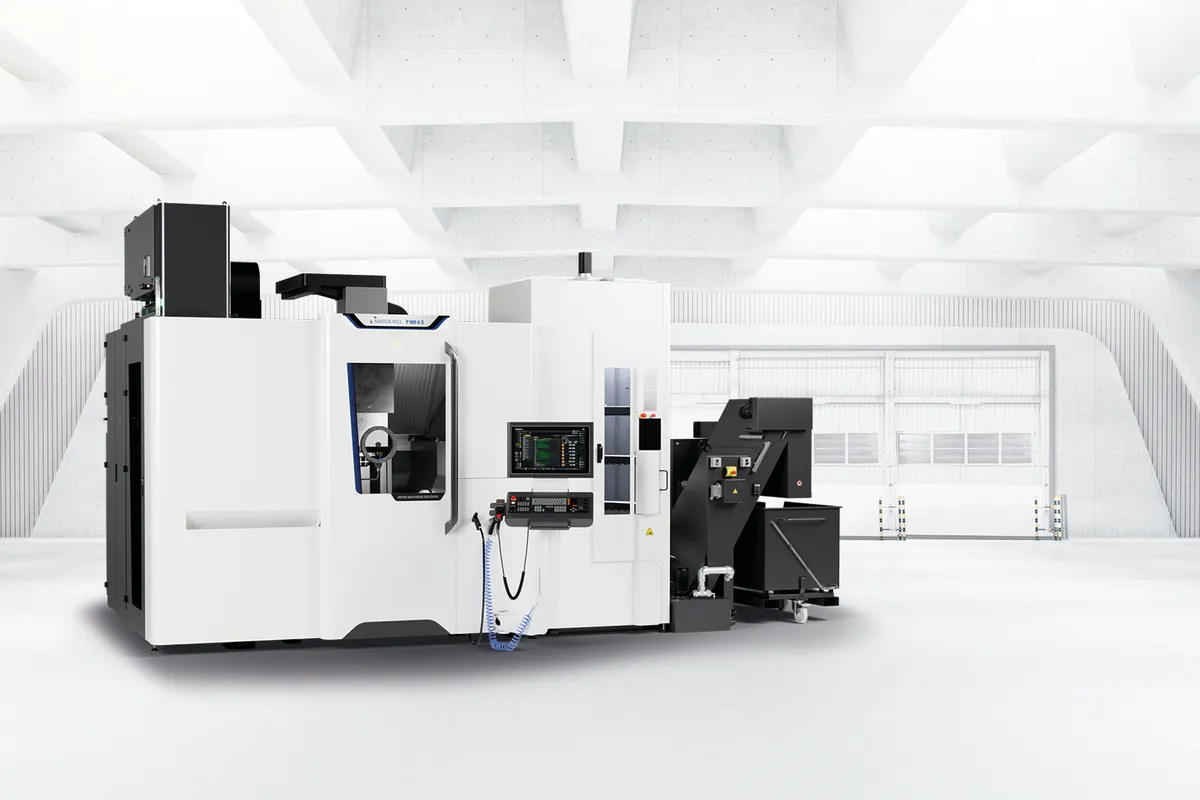

GF Machining MIKRON MILL P 800 U

Est. $450,000 - $650,000 Specs verified 2026-10-02 · united-mikronmill.com Updated 2026-10-02

Key Specifications

X Travel

800 mm

Y Travel

800 mm

Z Travel

550 mm

Table Size

T-slot / parallel Ø 630 or 500 mm / Berg pallet system

feed rate xyz

45 (61 dynamic version) m/min

swiveling range

+91/-121°

How much does the GF Machining MIKRON MILL P 800 U cost?

Estimated price range

Est.$450,000 - $650,000

Our best estimate for a 5-axis machining center in this class — not a quote from GF Machining Solutions. Configuration moves it a long way.

Overview

The Mikron MILL P 800 U is a gantry-type 5-axis machining center for mold and die work, with 800 × 800 × 550 mm of travel, a 20,000 rpm HSK-A63 spindle rated 36 kW and 120 Nm, and a table load of 500 / 1,000 kg. GF states that the MILL P 800 U (S) handles parts up to 1,000 kg. It is the base model of three on the same page, and the one with the widest choice of table and magazine.

The base machine and its dynamic version differ in axis speed. Linear feed is 45 m/min, or 61 m/min on the dynamic version; swivel is 25 rpm or 50 rpm; rotary is 35 rpm or 60 rpm. For a mold shop roughing large steel blocks the standard figures are rarely the limit. On 5-axis finishing with constant re-orientation, the dynamic version's doubled swivel speed is the more useful upgrade.

The table can be a T-slot or parallel table of Ø 630 or 500 mm, or the Berg pallet system. The swivel range is +91/-121° with n x 360° rotary, both driven by water-cooled direct torque motors in GF's description of the series. Magazines start at 30 and 60 pockets and go through a Tool Tower of 120, 170 or 215, so a single-part shop and a pallet cell can both be equipped.

GF offers Heidenhain TNC 640, TNC 7 or Siemens SINUMERIK ONE on the series. The MSP spindle protection system deflects the spindle and triggers emergency braking on a collision, and GF says a restart takes 10 minutes. The MIKRON MILL P 800 U S, on the same frame, is the pallet-based version with a System 3R Delphin 500 x 500 mm or Berg pallet system and 120 / 170 pockets.

Full Specifications

Parameter	Value
X-Axis Travel	800 mm
Y-Axis Travel	800 mm
Z-Axis Travel	550 mm
Feed Rate Xyz	45 (61 dynamic version) m/min
Swiveling Range	+91/-121°
Rotary Range	n x 360°
Feed Rate Swivel	25 (50 dynamic version) rpm
Feed Rate Rotary	35 (60 dynamic version) rpm
Table Size	T-slot / parallel Ø 630 or 500 mm / Berg pallet system
Max Table Load	500 / 1,000 kg
Spindle	20,000 rpm (HSK-A63), 36 kW, 120 Nm
Tool Magazine	30 / 60 / Tool Tower 120 / 170 / 215 pockets

Specifications sourced from united-mikronmill.com — verified 2026-10-02

Strengths & Limitations

Strengths

800 × 800 × 550 mm of travel with a 500 / 1,000 kg table load
Dynamic version raises feed to 61 m/min, swivel to 50 rpm and rotary to 60 rpm
Magazines from 30 pockets up to a 215-pocket Tool Tower
T-slot or parallel table of Ø 630 or 500 mm, or the Berg pallet system
Choice of Heidenhain TNC 640, TNC 7 or Siemens SINUMERIK ONE

Limitations

The standard version is limited to 45 m/min feed, 25 rpm swivel and 35 rpm rotary
One spindle is listed, 20,000 rpm with 36 kW and 120 Nm, with no high-torque alternative for heavy roughing
The load row reads 500 / 1,000 kg without stating which setup carries which figure
The 30- and 60-pocket magazines are small for unattended mold work; long runs need one of the Tool Tower sizes

Best For

Mold and die blocks up to 1,000 kg 5-axis mold finishing on the dynamic version Shops that need a choice of T-slot table or pallets Unattended runs fed from a Tool Tower of up to 215 tools

Frequently Asked Questions

01 What does the dynamic version of the MILL P 800 U change?

Axis speeds. Linear feed goes from 45 to 61 m/min, swivel from 25 to 50 rpm, and rotary from 35 to 60 rpm. Travels, spindle, table options and load are the same.

02 How does the MILL P 800 U differ from the MILL P 800 U S?

The MIKRON MILL P 800 U S works from a System 3R Delphin 500 x 500 mm or Berg pallet system with 120 / 170 pockets and is listed at 61 m/min. The Mikron MILL P 800 U adds a T-slot or parallel table of Ø 630 or 500 mm and smaller magazines of 30 or 60 pockets.

03 How heavy a workpiece can the MILL P 800 U take?

The table load row reads 500 / 1,000 kg, and GF says the MILL P 800 U (S) handles parts up to 1,000 kg. Confirm with GF which table or pallet setup carries the higher figure before planning a heavy job.

04 What is MSP on the MILL P 800 U?

GF's spindle protection system. When it detects a collision it deflects the spindle and triggers emergency braking, and GF says the machine can restart in 10 minutes. GF describes it as always active and maintenance-free.

05 Which controls are available on the MILL P 800 U?

Heidenhain TNC 640, Heidenhain TNC 7 or Siemens SINUMERIK ONE. All three work with GF's smart machine modules, so the choice can follow whatever control the shop already runs.
