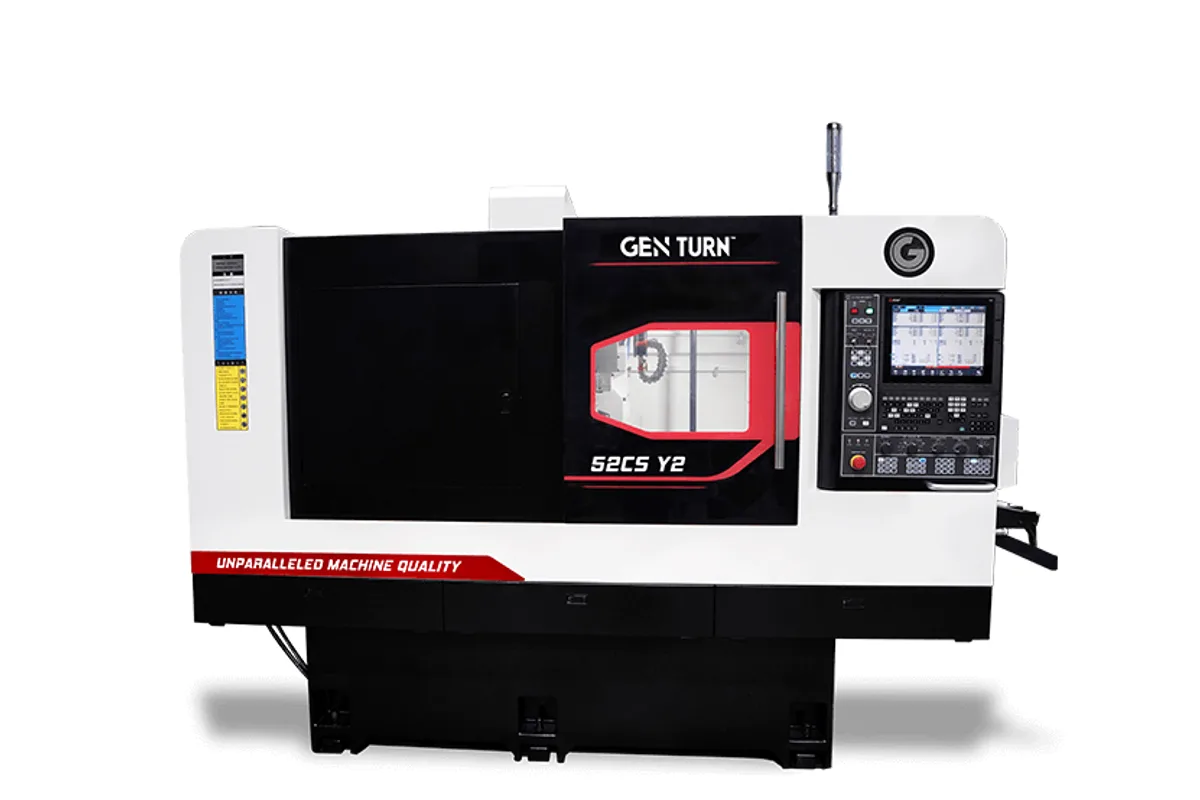

Ganesh GEN TURN 52CS Y2
Image: expandmachinery.com, Ganesh
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
bar capacity
max cut length
collet nose
How much does the Ganesh GEN TURN 52CS Y2 cost?
Price estimate
We do not have a price for the Ganesh GEN TURN 52CS Y2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The GEN TURN 52CS Y2 takes the bushing-less Swiss layout up to 2 in (51 mm) bar and gives both spindles their own Y axis. Expand Machinery lists it as an 8-axis CNC Swiss machine. The main spindle runs to 6,000 rpm on 10 HP (7.5 kW) and holds bar in a Traub A-52 collet nose; the sub-spindle matches the speed on 6 HP (4.4 kW) with a Traub A-42 nose and a 43 mm bore.
Axis strokes are long for a machine of this type. X1 is 8.66 in (220 mm), Y1 24.41 in (620 mm) and Z1 16.0 in (406 mm). On the sub-spindle side X2 is 14.9 in (380 mm), Y2 5.11 in (130 mm) and Z2 18.1 in (460 mm). Both Y axes are described as true Y axes, not compound ones. Maximum cut length is 4.33 in (110 mm), so despite the Z strokes this remains a machine for parts cut close to the collet.
What sets it apart from the GEN TURN 36-CS is live tooling. The main side has 6 ER-20 radial tools at 2.0 HP (1.5 kW) and 4 ER-20 axial tools at 1.0 HP (0.75 kW). The sub-spindle side has 4 ER-20 axial tools at 4.0 HP (3 kW) with room for 4 more. All of them run to 6,000 rpm, against 4,000 rpm on the GEN TURN 36-CS, and all are gear driven with 42 mm bearings and no belts.
One caution on speed: every axis rapids at 1,181 ipm (30 m/min) except Y2, which is listed at 196 ipm (5 m/min). The machine weighs 13,880 lb (6,300 kg), stands 78 in (1,977 mm) high and needs 35 kVA at 220 VAC, 92 amps. A parts catcher and chip conveyor are standard.
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | 2 in (51 mm) |
| Max Cut Length | 4.33 in (110 mm) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | 10 HP (7.5 kW) |
| Collet Nose | Traub A-52 (uses TRB-52 collet) |
| Spindle Bore | 52 mm (2.0 in) |
| Spindle Center Height | 43.3 in (1,100 mm) |
| Sub Spindle Speed | 6,000 rpm |
| Sub Spindle Power | 6 HP (4.4 kW) |
| Sub Spindle Collet | Traub A-42 (uses TRB-42 collet), 43 mm spindle bore |
| X1 Axis Travel | 8.66 in (220 mm) |
| Y1 Axis Travel | 24.41 in (620 mm), true Y axis, not compound Y |
| Z1 Axis Travel | 16.0 in (406 mm) |
| X2 Axis Travel | 14.9 in (380 mm) |
| Y2 Axis Travel | 5.11 in (130 mm), true Y axis, not compound Y |
| Z2 Axis Travel | 18.1 in (460 mm) |
| Rapid Traverse Rate | 1,181 ipm (30 m/min) X1, X2, Y1, Z1, Z2 |
| Rapid Traverse Y2 | 196 ipm (5 m/min) |
| Cross Slide Live Tools | 6 ER-20 cross slide radial live tools, 6,000 rpm, 2.0 HP (1.5 kW) (main spindle) |
| Front Slide Live Tools | 4 ER-20 front slide axial live tools, 6,000 rpm, 1.0 HP (0.75 kW) (main spindle) |
| OD Turning Tools | 6 (5 x 5/8 in + 1 x 3/4 in; 5 x 16 mm + 1 x 20 mm) |
| ID Turning Tools | 5 ID tool bores (25 mm) |
| Sub Spindle ID Tools | 5 ID tool bores (25 mm), back of main tool bores |
| Sub Spindle Live Tools | 4 ER-20 back slide axial live tools (can add 4 more), 6,000 rpm, 4.0 HP (3 kW) |
| Live Tool Drive | All live tools are gear driven with 42 mm bearings, no belts |
| Machine Length | 113 in + 31 in for chip conveyor |
| Machine Depth | 71 in (1,803 mm) |
| Machine Height | 78 in (1,977 mm) |
| Machine Weight | 13,880 lb (6,300 kg) |
| Coolant Pump | Dual 50 psi 1 HP coolant pumps for main and sub spindle |
| Coolant Tank Capacity | 63 gallons, with coolant flow confirmation sensor |
| Hydraulic System | 1 HP (0.75 kW), 12 gallons (46 L) |
| Power Requirement | 220 VAC ±5%, 35 kVA, 3-phase, 60 Hz, 92 amps |
| Air Requirement | 85 psi at 10 cfm |
Specifications sourced from expandmachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2 in (51 mm) bar capacity in a bushing-less Swiss layout
- True Y axes on both sides: Y1 24.41 in (620 mm), Y2 5.11 in (130 mm)
- Live tools run to 6,000 rpm and are gear driven with 42 mm bearings, no belts
- Sub-spindle back slide carries 4 ER-20 axial live tools at 4.0 HP (3 kW), with room for 4 more
- Parts catcher and chip conveyor are standard
Limitations
- Maximum cut length is 4.33 in (110 mm)
- Y2 rapid traverse is 196 ipm (5 m/min), far below the 1,181 ipm (30 m/min) of the other axes
- Sub-spindle is 6 HP (4.4 kW) with a 43 mm bore, smaller than the main spindle
- Heavy for a bar machine at 13,880 lb (6,300 kg), with a 35 kVA supply
Best For
Frequently Asked Questions
01
Maximum barstock diameter is 2 in (51 mm). The main spindle uses a Traub A-52 collet nose with a TRB-52 collet and a 52 mm bore. The sub-spindle uses a Traub A-42 nose with a TRB-42 collet and a 43 mm bore.
02
Size, the second Y axis and the live tools. The GEN TURN 36-CS takes 1.25 in (32 mm) bar as standard and its live tools stop at 4,000 rpm. The GEN TURN 52CS Y2 takes 2 in (51 mm) bar, adds a Y2 axis of 5.11 in (130 mm) on the sub-spindle side and runs its live tools to 6,000 rpm.
03
The tooling table lists 6 ER-20 cross slide radial live tools and 4 ER-20 front slide axial live tools for the main spindle, and 4 ER-20 back slide axial live tools for the sub-spindle with the possibility of adding 4 more. Fixed tooling is 6 OD turning positions and 5 ID bores of 25 mm for the main spindle, and 5 ID bores for the sub-spindle on the back of the main tool bores.
04
220 VAC ±5%, 3-phase, 60 Hz at 35 kVA and 92 amps, and air at 85 psi and 10 cfm for the parts catcher, ejector and air blast. Hydraulics hold 12 gallons (46 L) and the coolant tank holds 63 gallons with a flow confirmation sensor.
