Citizen Cincom M32
This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-03 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

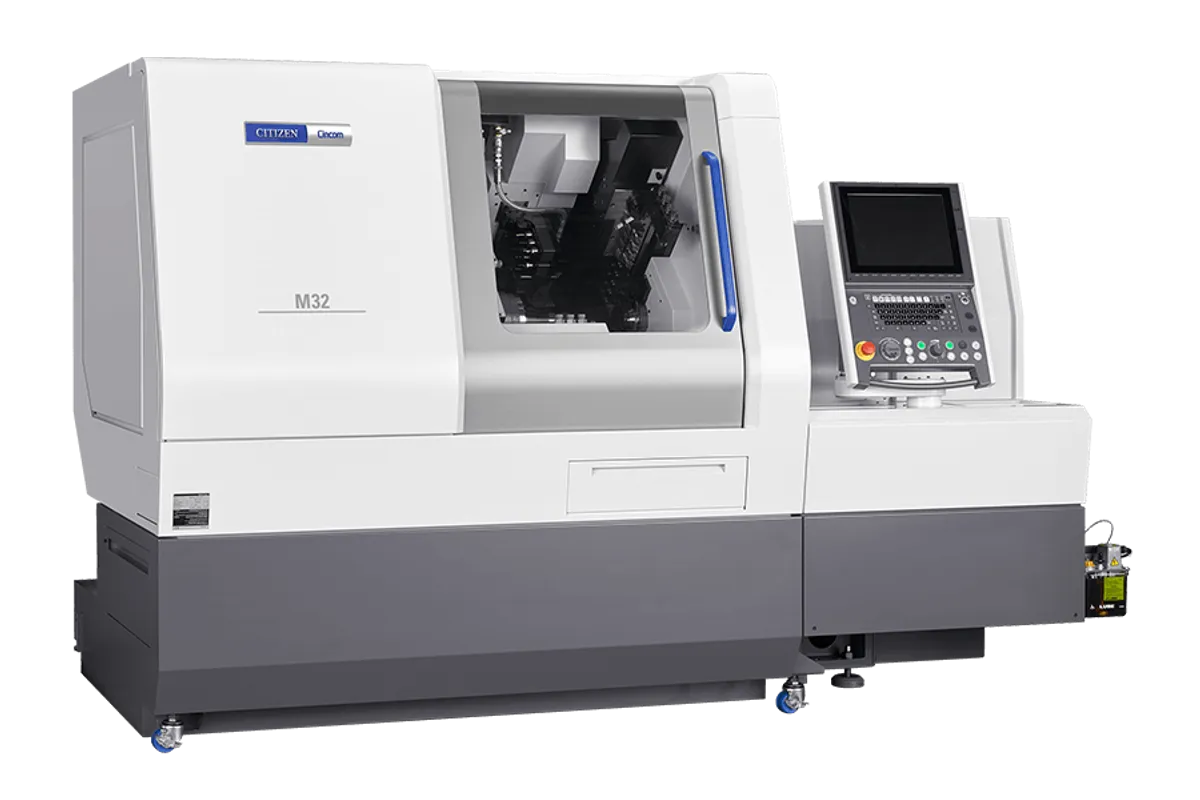

Image: cmj.citizen.co.jp, Citizen Machinery
Key Specifications
max bar capacity
max machining diameter
max machining length
main spindle speed
main spindle power
back spindle speed
How much does the Citizen Cincom M32 cost?
Estimated price range
Our best estimate for a swiss-type lathe in this class — not a quote from Citizen Machinery. Configuration moves it a long way.
Overview
The Citizen Cincom M32 listed on this page is the M32 without a generation suffix, a 32 mm (1.26 in) Swiss-type lathe with a sliding headstock, a gang tool post and a 10-station turret. Citizen's current lineup no longer uses the bare M32 name; it lists the series by variant, and this table mixes rows from those variants, so a used machine sold simply as an M32 should be identified by its full model plate before the figures below are relied on.
The rows that hold across the series describe the machine well enough. Bar capacity is 32 mm, with a 38 mm (1.50 in) oversize option. The headstock machines 320 mm per chucking. Main and back spindles each run to 8,000 rpm on 5.5 / 7.5 kW (7.4 / 10 HP) motors. The guide bushing is standard and a guide-bushless option is listed, which is worth confirming on a used machine: guide-bushless running suits short parts and lets the bar be used closer to its end. LFV chip breaking is listed as standard.
Driven tools are split three ways. Gang rotary tools run to 9,000 rpm on 2.2 kW (3 HP), turret rotary tools to 6,000 rpm on 2.2 kW, and back rotary tools to 6,000 rpm on 1.0 kW (1.3 HP). The control is Mitsubishi Meldas with Citizen software.
The machine is 2,860 x 1,465 x 1,900 mm (112.6 x 57.7 x 74.8 in) and weighs 4,300 kg, with a 79 A full-load current and a 100 A main breaker.
Full Specifications
| Parameter | Value |
|---|---|
| Max Bar Capacity | 32 mm (1.26 in), 38 mm (1.50 in) oversize option |
| Max Machining Diameter | 32mm Dia.(38mm Dia. OP) |
| Max Machining Length | 320mm/1chucking |
| Main Spindle Speed | Max8,000min-1 |
| Main Spindle Power | 5.5 / 7.5 kW (7.4 / 10 HP) |
| Back Spindle Speed | 8,000 RPM |
| Back Spindle Power | 5.5 / 7.5 kW (7.4 / 10 HP) |
| Number of Axes | Multi-axis (M32-V/VII) / B-axis 5-axis contouring (M32-VIII) |
| Number of Tools | 25 - 31 (configuration dependent) |
| Turret Stations | 10 |
| Gang Rotary Tool Speed | 9,000 RPM |
| Turret Rotary Tool Speed | 6,000 RPM |
| Back Rotary Tool Speed | 6,000 RPM |
| Gang Tool Motor | 2.2 kW (3 HP) |
| Turret Tool Motor | 2.2 kW (3 HP) |
| Back Tool Motor | 1.0 kW (1.3 HP) |
| Guide Bushing | Yes / Guide-bushless option |
| Lfv Chip Breaking | Yes (standard) |
| Power Consumption | 24 kVA |
| Full Load Current | 79 A |
| Machine Dimensions | 2,860 x 1,465 x 1,900 mm (112.6 x 57.7 x 74.8 in) |
| Machine Weight | 4,300kg |
| CNC Control | Mitsubishi Meldas (Citizen software) |
| Max Front Drilling Diameter | 12mm Dia. |
| Max Tapping Diameter for The Front Spindle | M12 (Cutting tap) |
| Max Chuck Diameter for The Back Spindle | 32mm Dia. (38mm Dia. OP) |
| Max Drilling Diameter for The Back Spindle | 12mm Dia. |
| Max Tapping Diameter for The Back Spindle | M12 (Cutting tap) |
| Max Length of The Back Spindle Workpiece | 145mm (Standard recovery unit) |
| Gang Rotary Tools | Max. drilling diameter |
| Max Tapping Diameter | M6 (Cutting tap) |
| Turret Rotary Tools | Max. drilling diameter |
| Turning Tools | 5 |
| Cross Drills | 5 to 7 |
| Number of Turret Stations | 10 |
| Sleeve Diameter | 25.4mm Dia. |
| X2 | 18m/min |
| Y2 | 12m/min |
| Gang Rotary Tool Drive | 2.2kW |
| Turret Rotary Tool Drive | 2.2kW |
| Pneumatic Unit Required Pressure and Required Flowrate | 0.5MPa at 110NL/min (When stationary) |
| Machine Main Unit Dimensions | W2,860×D1,465×H1,900mm |
| Rated Power Consumption | 25kVA |
| Load Operation Average Power | 13.1kVA |
| Main Breaker Capacity | 100A |
| Gang Rotary Tools Max Drilling Diameter | 8mm Dia. |
| Gang Rotary Tools Max Tapping Diameter | M8 (Cutting tap) |
| Gang Rotary Tools Main Spindle Speed | Max.9,000min-1 |
| Turret Rotary Tools Max Drilling Diameter | 12mm Dia. |
| Turret Rotary Tools Max Tapping Diameter | M12 (Cutting tap) |
| Turret Rotary Tools Main Spindle Speed | Max.6,000min-1 |
| Number of Tools Max | 30 to 36+α |
| Number of Tools Turning Tools | 5 |
| Number of Tools Cross Drills | 8(including 4 B-axis drills) |
| Number of Tools Number of Turret Stations | 10 |
| Number of Tools Back Tool Post Drills | Max.9 |
| Tool Size Turning Tool | 16mm Sq. |
| Tool Size Sleeve Diameter | 25.4mm Dia. |
| Rapid Feed Rate X1y1z1z2x3z3 | 32m/min |
| Rapid Feed Rate X2 | 18m/min |
| Rapid Feed Rate Y2 | 12m/min |
| Motors Front Spindle Drive | 5.5/7.5kW |
| Motors Back Spindle Drive | 5.5/7.5kW |
| Motors Gang Rotary Tool Drive | 2.2kW |
| Motors Turret Rotary Tool Drive | 2.2kW |
| Motors Back Rotary Tool Drive | 1.0kW |
| Rapid Feed Rate Y3 | 32m/min |
| Number of Tools Gang Tool Post Backside Drills | 4(including 4 B-axis drills) |
| Rapid Feed Rate B1 | 50m/min |
| Max Bar Diameter | 32 mm (1.26 in) |
| Max Part Length | 200 mm (7.87 in) with guide bushing |
| Sub Spindle Speed | 10,000 rpm |
| Live Tools | Yes — B-axis milling unit, gang plate, and rear tooling |
| Live Tool Speed | 6,000 rpm (standard) / 12,000 rpm (high-speed option) |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 32 mm (1.26 in) bar capacity with a 38 mm (1.50 in) oversize option
- Gang tool post plus a 10-station turret on one sliding headstock
- Guide bushing as standard with a guide-bushless option listed
- Matching 8,000 rpm main and back spindles on 5.5 / 7.5 kW (7.4 / 10 HP) motors
- Gang rotary tools to 9,000 rpm on 2.2 kW (3 HP)
Limitations
- The bare M32 name covers several generations; tool counts and axes differ between them and must be checked on the machine itself
- Back rotary tools have only 1.0 kW (1.3 HP) and 6,000 rpm
- 8,000 rpm spindle ceiling limits surface speed on small diameters
- 4,300 kg and a 100 A main breaker to plan for at installation
Best For
Frequently Asked Questions
01
The name alone does not say. Citizen's current lineup lists the series by variant, and this page's table mixes rows of more than one variant, for example axis counts that describe both multi-axis versions and a B-axis version. Read the model plate and the control's machine data to identify a used machine before comparing it with a spec sheet.
02
The table lists the guide bushing as standard and a guide-bushless option. A guide-bushless machine uses less bar per part as remnant and suits short work, while the guide bushing supports long slender parts over the 320 mm per chucking stroke. Check which configuration a given machine has.
03
Gang rotary tools run to 9,000 rpm on a 2.2 kW (3 HP) motor. Turret rotary tools run to 6,000 rpm, also on 2.2 kW. Back rotary tools run to 6,000 rpm on 1.0 kW (1.3 HP), so heavier back-end work is better done with the back spindle and stationary tools.
04
The listed dimensions are 2,860 x 1,465 x 1,900 mm (112.6 x 57.7 x 74.8 in) and the weight 4,300 kg. Electrically it draws a 79 A full-load current on a 100 A main breaker, and the pneumatic unit needs 0.5 MPa when stationary.
