Excetek ED2200C-2H

Q: How much does the Excetek ED2200C-2H cost?

The price estimate for the Excetek ED2200C-2H is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/excetek-ed2200c-2h#price; the request is passed to Excetek or an authorised dealer.

Specs verified 2026-10-05 · excetek.com Updated 2026-10-05

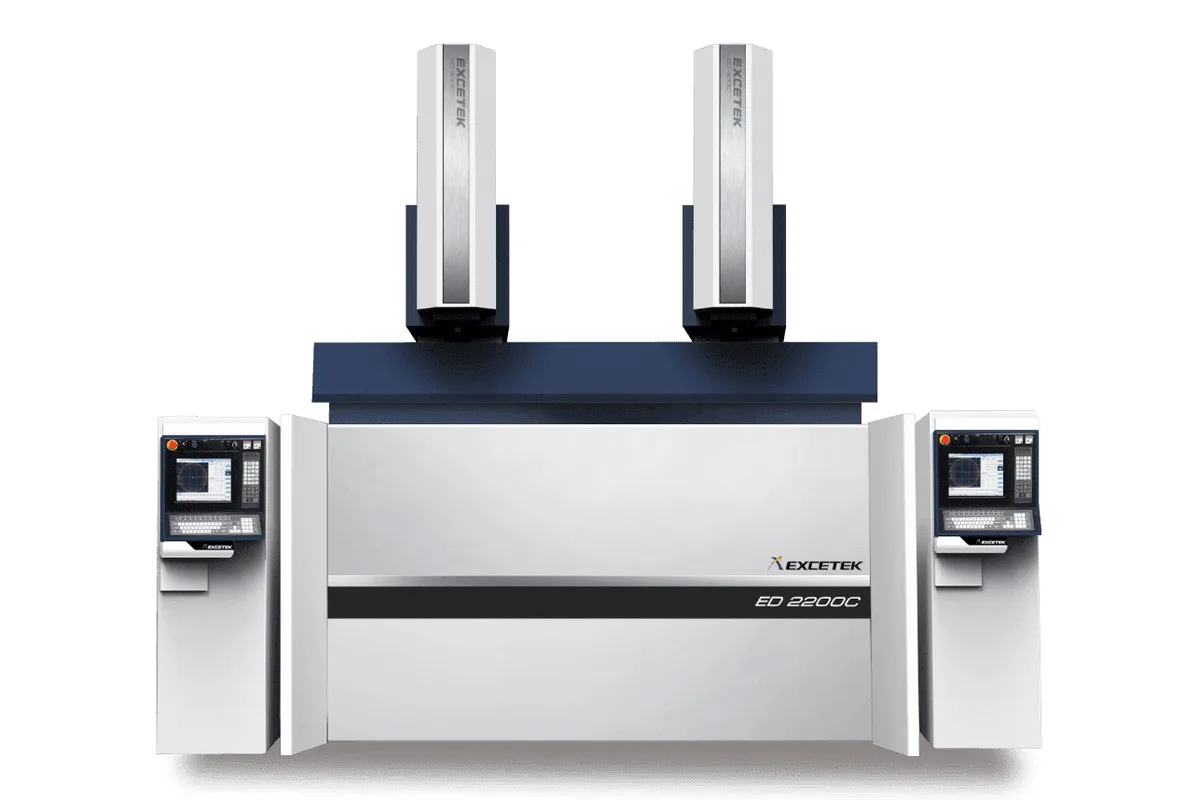

Image: excetek.com, Excetek

Key Specifications

Table Size

2,250 x 1,100 mm (88.6 x 43.3 in)

x axis travel

1,550 (775) mm (61.0 (30.5) in)

y axis travel

1,000 mm (39.4 in)

z axis travel

600 mm (23.6 in)

max workpiece size

2,700 x 1,600 x 700 mm (106.3 x 63.0 x 27.6 in)

work tank size

2,750 x 1,650 x 750 mm (108.3 x 65.0 x 29.5 in)

How much does the Excetek ED2200C-2H cost?

Price estimate

Uncertain

We do not have a price for the Excetek ED2200C-2H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Excetek ED2200C-2H appears in the ED Series catalogue with an X travel printed in an unusual way: 1,550 (775) mm. Y travel is 1,000 mm (39.4 in) and Z travel 600 mm (23.6 in). The catalogue does not explain the bracketed figure, so anyone specifying this CNC die sinking EDM should ask Excetek how the X stroke is divided before laying out electrodes.

The rest of the column is unambiguous, and it describes a very large machine. The work table is 2,250 x 1,100 mm (88.6 x 43.3 in). Maximum workpiece size is 2,700 x 1,600 x 700 mm (106.3 x 63.0 x 27.6 in) inside a work tank of 2,750 x 1,650 x 750 mm (108.3 x 65.0 x 29.5 in), and the table carries 10,000 kg (22,046 lb). Electrode weight is 500 kg (1,102 lb).

Z is the notable row. At 600 mm it is deeper than the 500 mm (19.7 in) of the ED1400C, and the Y stroke of a full metre covers wide tools such as instrument panels and door inners in one clamping.

Site preparation is a project in itself. The machine weighs 15,000 kg (33,069 lb). Outside dimensions with body, travel, tank and generator are 5,350 x 4,610 x 3,960 mm (210.6 x 181.5 x 155.9 in), which puts the top of the machine close to four metres. The oil filter tank is a 3,700 x 1,850 x 780 mm (145.7 x 72.8 x 30.7 in) unit that holds 5,000 L, weighs 1,050 kg (2,315 lb) and uses eight paper filters.

Series features in the same catalogue include an absolute coordinate feedback system with absolute optical scales, fuzzy control of the discharge for ribs and deep grooves, a column structure with a Z axis counterweight, and optional automatic electrode changing.

Full Specifications

Parameter	Value
X Axis Travel	1,550 (775) mm (61.0 (30.5) in)
Y Axis Travel	1,000 mm (39.4 in)
Z Axis Travel	600 mm (23.6 in)
Table Size	2,250 x 1,100 mm (88.6 x 43.3 in)
Max Workpiece Size	2,700 x 1,600 x 700 mm (106.3 x 63.0 x 27.6 in)
Work Tank Size	2,750 x 1,650 x 750 mm (108.3 x 65.0 x 29.5 in)
Max Workpiece Weight	10,000 kg (22,046 lb)
Max Electrode Weight	500 kg (1,102 lb)
Machine Weight	15,000 kg (33,069 lb)
Machine Dimensions	5,350 x 4,610 x 3,960 mm (210.6 x 181.5 x 155.9 in) (machine body + travel + tank + generator)
Oil Filter Tank Capacity	5,000 L
Oil Filter Tank Weight	1,050 kg (2,315 lb)
Paper Filter	8 pcs
Oil Filter Tank Dimensions	3,700 x 1,850 x 780 mm (145.7 x 72.8 x 30.7 in)

Specifications sourced from excetek.com — verified 2026-10-05

Strengths & Limitations

Strengths

600 mm (23.6 in) of Z travel and 1,000 mm (39.4 in) of Y
10,000 kg (22,046 lb) workpiece weight on a 2,250 x 1,100 mm (88.6 x 43.3 in) table
Work tank of 2,750 x 1,650 x 750 mm (108.3 x 65.0 x 29.5 in)
500 kg (1,102 lb) maximum electrode weight
Absolute coordinate feedback with absolute optical scales, as the ED Series catalogue describes for the series
5,000 L oil filter tank with 8 paper filters

Limitations

X travel is printed as 1,550 (775) mm with no explanation of the bracketed figure
15,000 kg (33,069 lb) machine weight and a 3,960 mm (155.9 in) overall height
Installation covers 5,350 x 4,610 mm (210.6 x 181.5 in) including tank and generator
The 5,000 L oil volume and 1,050 kg (2,315 lb) tank add to floor load and fire protection needs

Best For

Very large mold tools up to 2,700 x 1,600 x 700 mm (106.3 x 63.0 x 27.6 in) Workpieces up to 10,000 kg (22,046 lb) Deep cavities needing 600 mm (23.6 in) of Z Wide automotive tools that use the full 1,000 mm (39.4 in) of Y

Frequently Asked Questions

01 What are the travels of the ED2200C-2H?

The catalogue gives X/Y travel as 1,550 (775) x 1,000 mm and Z travel as 600 mm (23.6 in). It does not say what the figure in brackets refers to, so confirm the usable X stroke with Excetek.

02 How large and heavy a workpiece does the ED2200C-2H accept?

Up to 2,700 x 1,600 x 700 mm (106.3 x 63.0 x 27.6 in) and 10,000 kg (22,046 lb). The work tank measures 2,750 x 1,650 x 750 mm (108.3 x 65.0 x 29.5 in) and the work table 2,250 x 1,100 mm (88.6 x 43.3 in).

03 What space and foundation does the ED2200C-2H need?

Outside dimensions are 5,350 x 4,610 x 3,960 mm (210.6 x 181.5 x 155.9 in) with machine body, travel, tank and generator. Machine weight is 15,000 kg (33,069 lb), and the oil filter tank adds 1,050 kg (2,315 lb) empty plus 5,000 L of oil. The ED Series catalogue names a floor-mounting design among the series features.

04 How does the ED2200C-2H relate to the ED3000-2H CE?

The ED3000-2H CE is the longer machine. The ED3000-2H CE page gives a 3,100 x 1,100 mm (122.0 x 43.3 in) table, a 16,000 kg (35,273 lb) workpiece limit and a 21,000 kg (46,296 lb) machine weight. Y travel of 1,000 mm (39.4 in), Z travel of 600 mm (23.6 in) and the 500 kg (1,102 lb) electrode weight are the same on both.
