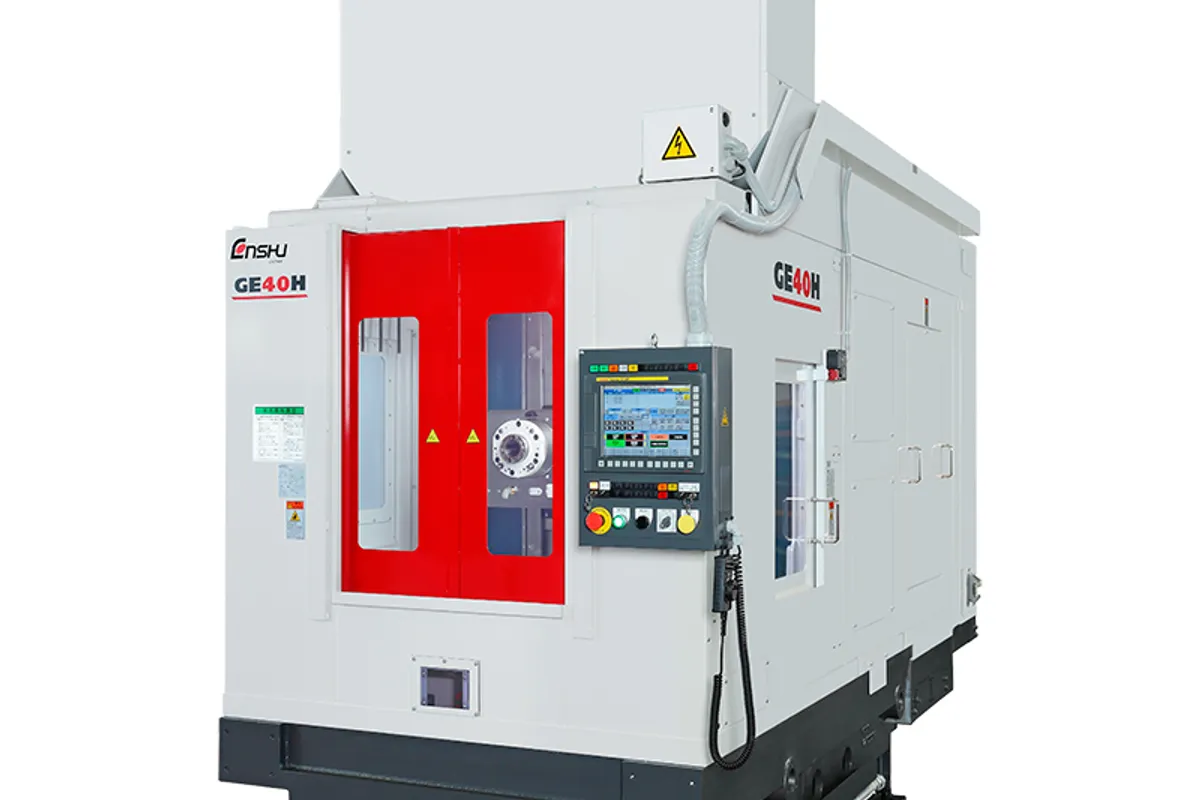

Enshu Enshu GE40H

$320,000 - $470,000 Updated 2026-03-19

Key Specifications

X Travel

500 mm (19.7 in)

Y Travel

500 mm (19.7 in) + 200 mm ATC stroke

Z Travel

500 mm (19.7 in)

Spindle Taper

BT-40

Tool Capacity

24 standard (30 optional)

Rapid Traverse

60 m/min (2,362 ipm) all axes

Overview

The Enshu GE40H is a production-oriented horizontal machining center built around a high-output, high-rigidity BT-40 spindle platform. Positioned as a system machine for mass production, the GE40H shares the core mechanical philosophy of the GE-series lineup but is specifically configured for integration into flexible manufacturing systems (FMS) and multi-machine production cells. Enshu designed this machine with IoT readiness as a standard feature, reflecting the demands of modern automotive and industrial production environments.

The GE40H features 500 mm of travel in both X and Z axes, with a Y-axis stroke of 500 mm plus an additional 200 mm ATC stroke. The 400 mm work area diameter accepts pallet-mounted fixtures for a wide range of automotive components, with two work area size options (400 mm and 320 mm) and corresponding weight capacities of 650 kg and 450 kg. The standard spindle runs at 12,000 RPM with a BT-40 taper, providing the speed necessary for efficient aluminum machining while maintaining the rigidity for moderate ferrous cutting.

Rapid traverse rates of 60 m/min across all axes minimize non-cutting time, which is the primary productivity driver in high-volume production environments. The standard 24-tool magazine handles most production part requirements, with a 30-tool option available for more complex components. Through-spindle coolant enables deep-hole drilling and tapping operations common on automotive castings, and the Fanuc 31i-B5 control provides the reliability and network connectivity that production environments demand.

The GE40H's extra basic functions as a system machine differentiate it from general-purpose horizontals. Enshu's decades of experience building production HMCs for the Japanese automotive industry inform every design decision, from the thermally symmetric structure to the chip management system. For plants running multiple shifts on aluminum and light-alloy automotive components, the GE40H delivers the combination of speed, reliability, and system integration capability that production demands.

Full Specifications

Parameter	Value
Work Area Diameter	400 mm (15.7 in) / 320 mm (12.6 in)
X-Axis Travel	500 mm (19.7 in)
Y-Axis Travel	500 mm (19.7 in) + 200 mm ATC stroke
Z-Axis Travel	500 mm (19.7 in)
Spindle Speed	12,000 RPM
Spindle Taper	BT-40
Spindle Motor Power	15 kW (20 hp)
Tool Capacity	24 standard (30 optional)
Rapid Traverse Rate	60 m/min (2,362 ipm) all axes
Cutting Feedrate	15,000mm/min
Max Workpiece Weight	650 kg (1,433 lb) / 450 kg (992 lb)
Through Spindle Coolant	Standard, 70 bar (1,015 psi)
CNC Control	Fanuc 31i-B5
Iot Connectivity	Standard
Machine Weight	Approx. 7,000 kg (15,432 lb)
Axis Travel	X axis
Y Axis	500mm + 200mm(ATC stroke)
Z Axis	500mm
Table	Table work area size
Maximum Loading Weight	650kg (450kg)
Spindle	Maximum spindle speed
Tool Shank Type	MAS BT40
Automatic Tool Changer	Magazine tool capacity

Specifications sourced from enshu.co.jp — verified 2026-03-28

Strengths & Limitations

Strengths

High-output, high-rigidity BT-40 spindle provides excellent cutting performance for both aluminum and moderate ferrous machining
60 m/min rapid traverse across all axes maximizes spindle utilization in short-cycle production environments
IoT-ready as standard enables real-time monitoring and data collection for Industry 4.0 production management
Dual work area configurations (400/320 mm) provide flexibility to optimize for different part sizes and weight classes
Proven mass production pedigree from Enshu's decades of automotive HMC manufacturing experience
FMS integration capability enables multi-machine cell deployment with shared pallet pools and supervisory control

Limitations

24-tool standard magazine is limited for complex parts; 30-tool option still modest compared to competitors offering 60+ tools
BT-40 taper limits heavy roughing capability on cast iron and steel compared to BT-50 machines
Enshu's brand recognition and service network outside Japan is significantly smaller than Mazak, Makino, or Okuma
Production-focused design limits versatility for job shops requiring diverse part types and frequent changeovers

Best For

Automotive Tier 1 and Tier 2 suppliers machining aluminum castings at high production rates across multiple shifts FMS installations requiring compact, fast horizontal machining centers with system integration capability Plants implementing Industry 4.0 monitoring and data collection across their machining operations High-volume production cells for die-cast aluminum parts requiring consistent accuracy and throughput Transfer line modernization projects replacing dedicated stations with flexible CNC machining centers

Frequently Asked Questions

01 What does an Enshu GE40H cost?

New Enshu GE40H machines typically price between $320,000 and $470,000 depending on tool magazine capacity, automation configuration, and FMS integration level. System pricing for multi-machine FMS cells is negotiated project by project.

02 How does the GE40H compare to the GE460H?

The GE40H and GE460H occupy similar market segments with comparable travel and spindle specifications. The GE40H emphasizes system machine functionality with enhanced IoT connectivity and FMS integration features, while the GE460H focuses on standalone and small-cell production with its dual-pallet changer. Both share the 60 m/min rapid traverse and BT-40 spindle platform.

03 What makes the GE40H a system machine?

The GE40H includes standard IoT connectivity, FMS integration interfaces, and system-level features designed for multi-machine production cell deployment. These capabilities enable centralized monitoring, tool management across multiple machines, and automated part flow between stations.

04 Can the GE40H handle cast iron parts?

Yes. While optimized for high-speed aluminum machining, the BT-40 spindle with 15 kW power handles moderate cast iron cutting. The 650 kg workpiece capacity accommodates substantial ferrous castings. For heavy-duty cast iron roughing, Enshu's larger JE80 with BT-50 spindle is the better choice.
