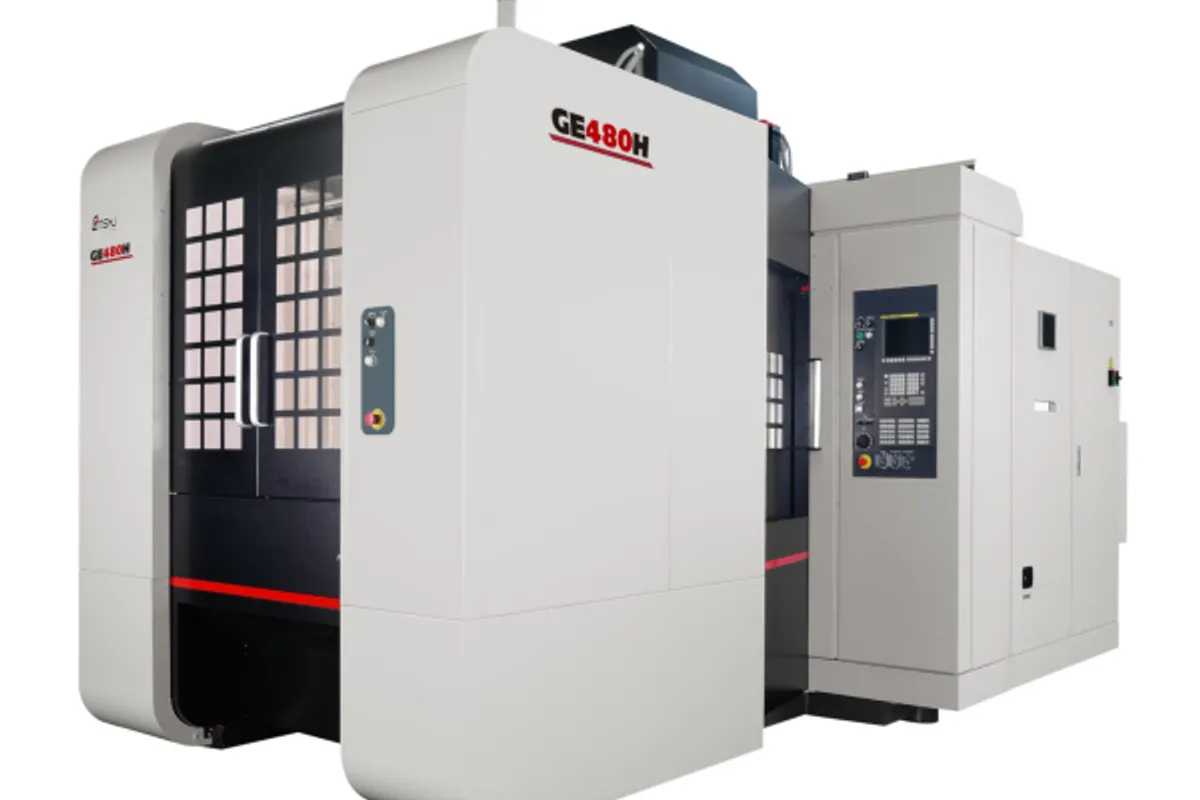

Enshu Enshu GE480H

$500,000 - $750,000 Updated 2026-03-19

Key Specifications

X Travel

1,000 mm (39.4 in)

Y Travel

900 mm (35.4 in)

Z Travel

1,050 mm (41.3 in)

Spindle Taper

BT50

Tool Capacity

40 tools

Rapid Traverse

50,000 mm/min (1,969 ipm)

Overview

The Enshu GE480H is a large-capacity horizontal machining center with a 630 x 630 mm work area and axis travels of 1,000 x 900 x 1,050 mm, positioning it alongside the GE590H as a platform for machining substantial industrial and automotive castings. With a BT50 spindle at 10,000 RPM and 1,200 kg workpiece capacity, the GE480H handles the heavy-duty production machining of engine blocks, large transmission housings, and industrial pump bodies.

The spindle delivers BT50-class torque and rigidity at speeds sufficient for both ferrous roughing and aluminum finishing operations. Rapid traverse reaches 50,000 mm/min across all axes, maintaining fast positioning during multi-operation production cycles. Cutting feed rates of 15,000 mm/min provide productive material removal during contouring and face milling operations. The 40-tool magazine supports complex parts requiring many different operations in a single setup.

The 1,050 mm Z-axis travel is a standout specification, providing exceptional reach for machining tall components and performing deep boring operations that shorter-travel machines cannot reach. Combined with 1,000 mm X-travel and 900 mm Y-travel, the GE480H offers a large working volume relative to its pallet size, making it particularly effective for four-face machining of complex parts that require access to deep internal features.

The GE480H is designed for production environments where large cast iron and aluminum components need consistent, reliable machining across multi-shift operations. Enshu's production heritage from Japanese automotive manufacturing ensures the machine delivers the repeatability and uptime that production planners depend on. FMS integration is available through Enshu's systems division for multi-machine automated production lines.

Full Specifications

Parameter	Value
Pallet Size	630 x 630 mm (24.8 x 24.8 in)
X-Axis Travel	1,000 mm (39.4 in)
Y-Axis Travel	900 mm (35.4 in)
Z-Axis Travel	1,050 mm (41.3 in)
Spindle Speed	10,000 RPM
Spindle Taper	BT50
Tool Capacity	40 tools
Rapid Traverse Rate	50,000 mm/min (1,969 ipm)
Cutting Feedrate	40,000mm/min (1,574.8in/min) *AI contour control enabled
Max Workpiece Weight	1,200 kg (2,646 lb)
CNC Control	Fanuc 31i-B5
Axis Travel	X axis
Y Axis	800mm (31.5in)
Z Axis	800mm (31.5in)
Table	Table size
Maximum Loading Weight	500kg (1,102lbs)
Spindle	Maximum spindle speed
Tool Shank Type	MAS BT40
Atc	Magazine tool capacity

Specifications sourced from enshu.co.jp — verified 2026-03-28

Strengths & Limitations

Strengths

1,050 mm Z-travel enables deep boring and tall-part machining that shorter-travel horizontals cannot reach
1,200 kg workpiece capacity handles heavy industrial castings and substantial multi-fixture setups
BT50 spindle at 10,000 RPM provides both torque for cast iron roughing and speed for aluminum operations
50,000 mm/min rapid traverse keeps non-cutting time competitive in production environments
630 mm pallet accommodates medium to large parts with room for effective fixturing
Enshu production heritage ensures reliability and repeatability for continuous manufacturing

Limitations

Large footprint and weight require substantial floor space and proper foundation preparation
Specifications very similar to the GE590H may cause confusion in model selection
Enshu's dealer network outside Japan is limited compared to Mazak, Okuma, and Makino
40-tool magazine may need expansion for highly complex parts with many different operations

Best For

Automotive production of engine blocks, large transmission housings, and structural castings requiring deep Z-travel Industrial equipment manufacturers machining pump housings, compressor bodies, and large valve assemblies Heavy equipment manufacturers producing large cast iron and ductile iron components Production environments needing 630mm-class HMC capability with long Z-axis reach for tall-part machining FMS installations requiring reliable, production-proven horizontal machining centers from a single supplier

Frequently Asked Questions

01 What does an Enshu GE480H cost?

New Enshu GE480H machines typically price between $500,000 and $750,000 depending on automation level, tool magazine capacity, and FMS integration. The pricing is similar to the GE590H given comparable specifications.

02 How does the GE480H differ from the GE590H?

The GE480H and GE590H share identical travel specifications (1,000 x 900 x 1,050 mm), pallet size (630 mm), and workpiece capacity (1,200 kg). The models may differ in generation, specific spindle configurations, or automation options. Consult Enshu directly for the current differentiation between these models.

03 Why is 1,050 mm Z-travel important?

Long Z-travel allows machining of tall parts and performing deep boring operations that require the spindle to reach far into the workpiece. For components like tall pump housings, engine blocks, and large valve bodies, sufficient Z-travel eliminates the need for multiple setups or specialized fixturing to access deep features.

04 Can the GE480H be used in an FMS?

Yes. Enshu offers FMS integration connecting multiple GE480H machines to shared pallet pools and central control systems. This is a core Enshu capability used extensively in Japanese automotive and industrial production.
