EMAG VT 200

$350,000 - $500,000 (estimated) Updated 2026-03-19

Key Specifications

X Travel

395 mm (15.5 in)

Z Travel

810 mm (32 in)

Max Spindle

4,500 RPM

Max Workpiece ⌀

200 mm (8 in)

max workpiece length

630 mm (25 in)

chuck diameter

250 mm (10 in)

Overview

The EMAG VT 200 is a vertical pick-up turning machine built on the same modular platform as the VT 4, specifically optimized for high-volume shaft machining of components up to 200 mm in diameter and 630 mm in length. While the VL series targets chucked disc-type parts, the VT 200 is purpose-built for longer shaft-type workpieces like transmission input and output shafts, rotor shafts, camshafts, and similar cylindrical components that require turning, grooving, and threading along their full length.

The main spindle delivers 38 kW at 40% duty cycle (29 kW continuous) with speeds up to 4,500 RPM and torque ratings of 250 Nm at 40% and 200 Nm continuous. These power figures provide aggressive cutting capability for both roughing and finishing operations on steel and cast iron shaft components. The 250 mm chuck handles workpieces up to 200 mm diameter, and the 270 mm swing diameter provides adequate clearance for tooling access.

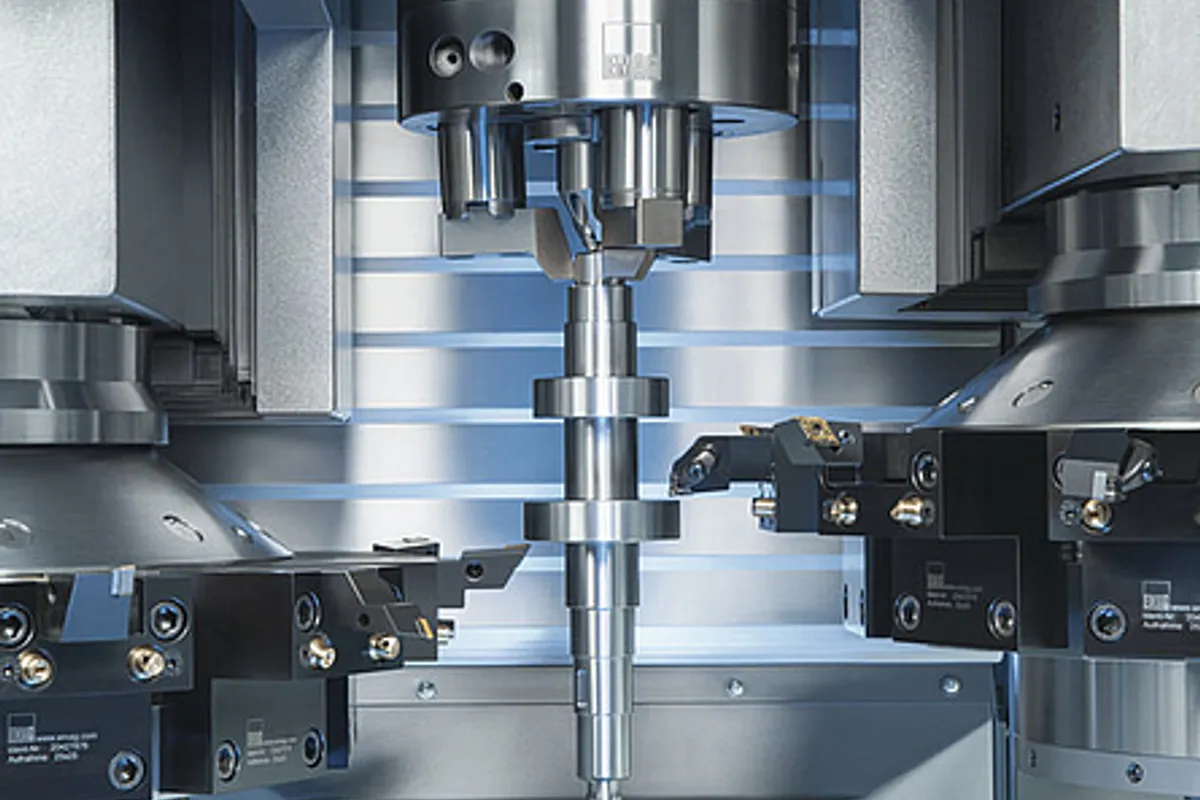

The VT 200 features dual turrets with 11 tool posts each, enabling simultaneous machining from both sides of the workpiece. This twin-turret configuration is critical for shaft machining where operations on both ends or opposing features must be completed in a single clamping for concentricity. X-axis travel of 395 mm and Z-axis travel of 810 mm accommodate the full length of shaft components up to 630 mm, with the generous Z travel allowing the pick-up spindle to reach the loading position and traverse the full machining stroke.

The VT 200 runs on a Siemens control unit, distinguishing it from some VT 4 configurations that use Fanuc. The MINERALIT polymer concrete base provides the vibration damping essential for maintaining surface finish quality during long-reach turning on shaft components. The integrated pick-up automation handles loading and unloading of shaft parts without external robots, and EMAG's TrackMotion system can link multiple VT 200 machines into automated production lines for multi-operation shaft machining sequences.

New VT 200 machines price between $350,000 and $500,000, depending on turret configuration and automation level. The machine competes with horizontal shaft turning centers from Index, Weisser, and DMG Mori, offering the chip evacuation and automation advantages of the vertical pick-up concept for medium-sized shaft components.

Full Specifications

Parameter	Value
Max Workpiece Diameter	200 mm (8 in)
Max Workpiece Length	630 mm (25 in)
Chuck Diameter	250 mm (10 in)
Swing Diameter	mmin
Max Gripper Diameter	133 mm (5 in)
Max Spindle Speed	4,500 RPM
Spindle Power 40 Pct	38 kW (51 hp)
Spindle Power Continuous	29 kW (39 hp)
Spindle Torque 40 Pct	250 Nm (184 ft-lb)
Spindle Torque Continuous	200 Nm (148 ft-lb)
X-Axis Travel	395 mm (15.5 in)
Z-Axis Travel	810 mm (32 in)
Turrets	2 turrets, 11 tool posts each
Machine Base	MINERALIT polymer concrete
Workpiece Handling	Integrated pick-up automation
CNC Control	Siemens Sinumerik
Workpiece Dia Max	mmin
Workpiece Length Max	mmin
Chuck Dia Max	mmin
Gripper Diameter Max	mmin
X Axis Travel	mmin
Z Axis Travel	mmin
Main Spindle Power Rating At 40 100 Duty Cycle	kW ./ hp
Main Spindle Torque At 40 100 Duty Cycle	Nm ./ ft-lb
Main Spindle Speed Max	rpm

Specifications sourced from emag.com — verified 2026-03-28

Strengths & Limitations

Strengths

630 mm maximum workpiece length accommodates medium-length shaft components including transmission shafts, rotor shafts, and camshafts
Dual turrets with 11 tool posts each enable simultaneous machining from both sides for reduced cycle times and maintained concentricity
38 kW spindle at 4,500 RPM provides strong cutting performance for both roughing and finishing of steel and cast iron shafts
Integrated pick-up automation handles shaft loading and unloading without external robots, reducing cell cost and complexity
MINERALIT polymer concrete base provides superior vibration damping critical for long-reach turning on shaft components
Siemens control platform offers familiar programming environment for European production facilities

Limitations

200 mm maximum workpiece diameter limits the machine to medium-sized shafts — larger diameter shaft work requires the VT 4 or horizontal alternatives
Higher capital cost than conventional horizontal shaft lathes, justified only at production volumes above 50,000-100,000 parts per year
EMAG service network in North America is more limited than Mazak, DMG Mori, or Okuma
The vertical pick-up design requires parts to be presented in a specific orientation, adding upstream handling considerations

Best For

Automotive powertrain manufacturers producing transmission input/output shafts, pinion shafts, and rotor shafts in high volumes Electric motor manufacturers turning rotor and stator shafts requiring tight concentricity Industrial equipment producers machining pump shafts, valve stems, and similar cylindrical components Production lines requiring multi-operation shaft machining where VT 200 units can be linked via TrackMotion automation Plants transitioning from horizontal shaft lathes to automated vertical production for improved chip evacuation and reduced floor space

Frequently Asked Questions

01 What is the difference between the EMAG VT 200 and VT 4?

The VT 200 and VT 4 share the same modular platform with identical spindle power (38/29 kW) and travel specifications. The key difference is the control system: the VT 200 comes equipped with a Siemens control unit, while the VT 4 may use Fanuc or Siemens depending on configuration. Both handle workpieces up to 200 mm diameter and 630 mm length.

02 Can the VT 200 handle both shaft and chucked parts?

The VT 200 is optimized for shaft-type workpieces with its 630 mm Z-axis travel and dual turrets. While it can technically machine shorter chucked parts, the VL series (VL 2, VL 4, VL 6) is better suited for disc and ring-type components. The VT 200's strengths are fully realized on longer cylindrical parts.

03 How does the dual-turret configuration improve shaft machining?

The two 11-station turrets can machine simultaneously from opposite sides of the workpiece, cutting cycle time significantly. For shaft parts requiring operations on both ends or opposing features, the twin turrets maintain concentricity by completing all operations in a single clamping without re-chucking.

04 What automation options are available for the VT 200?

The VT 200 includes integrated pick-up automation as standard. For multi-machine production lines, EMAG's TrackMotion system can link multiple VT 200 machines together, automatically transferring parts from OP10 to OP20 and beyond. This enables fully automated shaft production lines without standalone robots.
