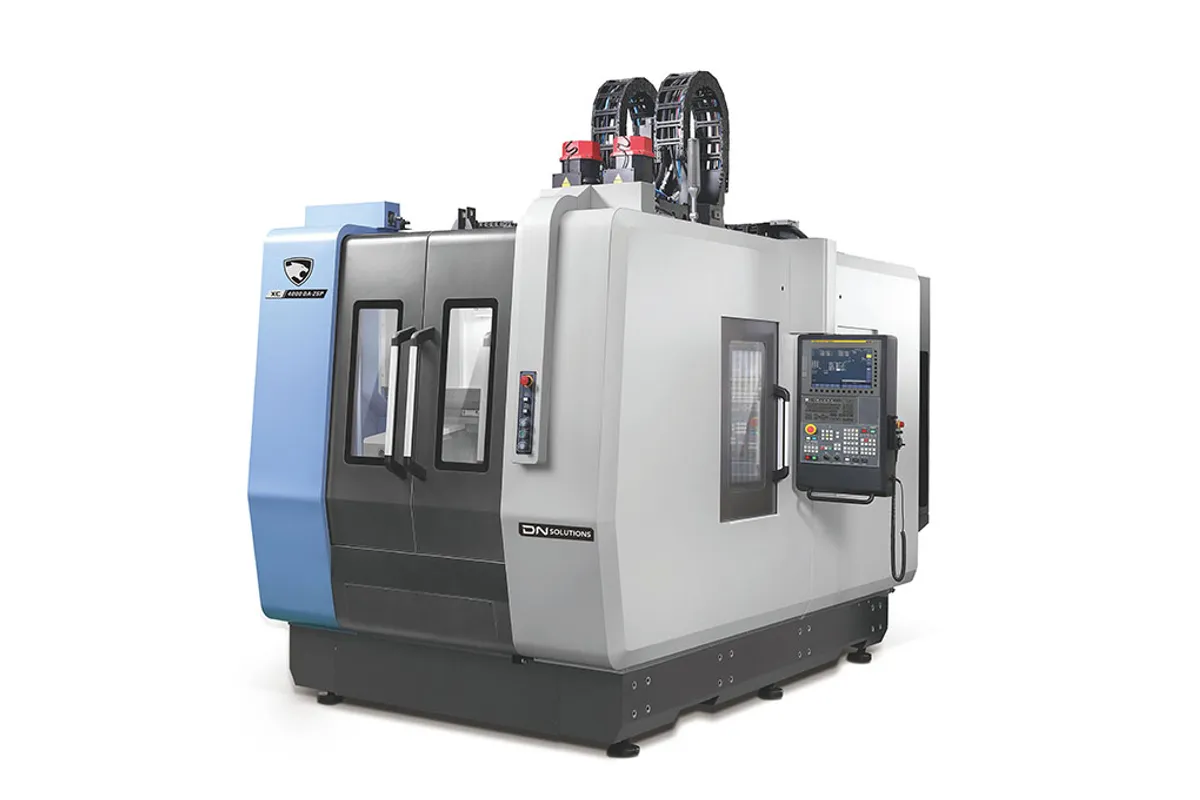

DN Solutions XC 4000 DA 2SP

$220,000 - $320,000 Updated 2026-03-19

Key Specifications

X Travel

630 mm (25 in) per spindle

Y Travel

400 mm (16 in) per spindle

Z Travel

360 mm (14 in) per spindle

Max Spindle

12,000 RPM

Tool Capacity

2 x 24 tools

Table Size

790 x 300 mm (31 x 12 in)

Overview

The DN Solutions XC 4000 DA 2SP is a dual-spindle, dual-moving-column vertical machining center that represents the top of DN Solutions' high-production small-part lineup. The "DA" designation indicates a dual-axis moving column design — each spindle has its own independent column and axis system, meaning the two spindles can run different cycle portions or compensate independently. This is a meaningful upgrade over the VC 4000 D 2SP, where the spindles share a more coupled mechanical architecture.

Each spindle covers 630 x 400 x 360 mm (25 x 16 x 14 in) of travel at 12,000 RPM. The dual 24-tool magazines — one per spindle — mean each side carries its own tooling complement, and tool changes happen independently. Rapid traverse hits 70 m/min, which is among the fastest in any production VMC. That speed keeps chip-to-chip times exceptionally low and maximizes the percentage of cycle time spent actually cutting metal.

The 790 x 300 mm table with 200 kg load capacity per side is sized for small production parts — the kind of work where cycle time in seconds (not minutes) determines profitability. At 12,000 kg machine weight, the dual moving columns are isolated well enough that cutting on one side doesn't introduce vibration artifacts on the other. The FANUC control manages both spindles through a coordinated programming environment. For shops producing thousands of identical parts daily and fighting for every second of cycle time, the XC 4000 DA 2SP delivers the throughput of two machines with the footprint and operator requirements of one.

Full Specifications

Parameter	Value
X-Axis Travel	630 mm (25 in) per spindle
Y-Axis Travel	400 mm (16 in) per spindle
Z-Axis Travel	360 mm (14 in) per spindle
Max Spindle Speed	12,000 RPM
Spindle Quantity	2 (dual moving column)
Tool Capacity	2 x 24 tools
Table Size	790 x 300 mm (31 x 12 in)
Table Load Capacity	200 kg (441 lb)
Rapid Traverse Xyz	70 m/min (2,756 ipm)
Machine Weight	12,000 kg (26,455 lb)
CNC Control	FANUC 0i-Plus with iHMI
X Axis Travel Distance	630 mm
Y Axis Travel Distance	400 mm
Metric	IMPERIAL
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Table	Table LengthTable WidthMaximum Workpiece weight
Tool Storage Capacity	No. of tool station
Dimensions	LengthHeightWidthWeight
Favorites	XC 4000DA-2SP

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Dual moving column design provides true independent spindle operation with better isolation than shared-column designs
70 m/min rapid traverse is among the fastest in any production VMC, minimizing non-cutting time
Independent 24-tool magazines per spindle eliminate cross-spindle tool change delays
Dual-spindle output in a single-machine footprint with one operator and coordinated programming
12,000 kg machine mass provides effective vibration isolation between the two cutting zones
Moving-column design keeps workpiece stationary, improving accuracy on precision small parts

Limitations

200 kg table load capacity is relatively low — heavy fixtures aren't an option
360 mm Z-travel limits the machine to shallow parts and features
Higher cost than the VC 4000 D 2SP for the independent moving-column architecture
790 x 300 mm table is narrow, requiring purpose-built fixtures for each part family
24 tools per spindle may limit complex multi-operation parts

Best For

Ultra-high-volume production of small identical parts where every second of cycle time matters Automotive tier-1 suppliers running thousands of brackets, housings, and covers per shift Electronics and consumer product manufacturers needing maximum throughput on small aluminum parts Contract manufacturers seeking to win bids on high-volume small-part work by minimizing per-piece cost Production cells where the 70 m/min rapids and dual-spindle architecture provide a competitive cycle time advantage

Frequently Asked Questions

01 What does a DN Solutions XC 4000 DA 2SP cost?

New XC 4000 DA 2SP machines run $220,000-$320,000 depending on configuration. The base machine starts around $220,000-$260,000. Adding probing, through-spindle coolant, automation integration, and part loading systems pushes pricing to $280,000-$320,000. It's more expensive than the VC 4000 D 2SP but delivers more independent operation.

02 How does the XC 4000 DA 2SP differ from the VC 4000 D 2SP?

The key difference is architecture. The XC has dual independent moving columns — each spindle has its own complete axis system and 24-tool magazine. The VC shares more mechanical structure between spindles. The XC also runs 70 m/min rapids versus the VC's 48 m/min. The XC costs more but provides better isolation, faster movement, and independent tool magazines.

03 Can the two spindles run different programs?

The dual moving column design allows more operational independence than the VC model, but both sides still primarily run the same part program for identical parts. The independent columns allow compensation and timing adjustments between sides. For completely different parts on each spindle, you'd typically need two separate machines.

04 What kind of parts is this machine designed for?

Small, high-volume production parts — automotive brackets, electronic housings, small castings, medical components, and similar parts where cycle times are measured in seconds. The 630x400x360mm per-spindle work envelope and 200 kg table load define the part size limit. If your part fits and you're making thousands per day, this machine is built for you.
