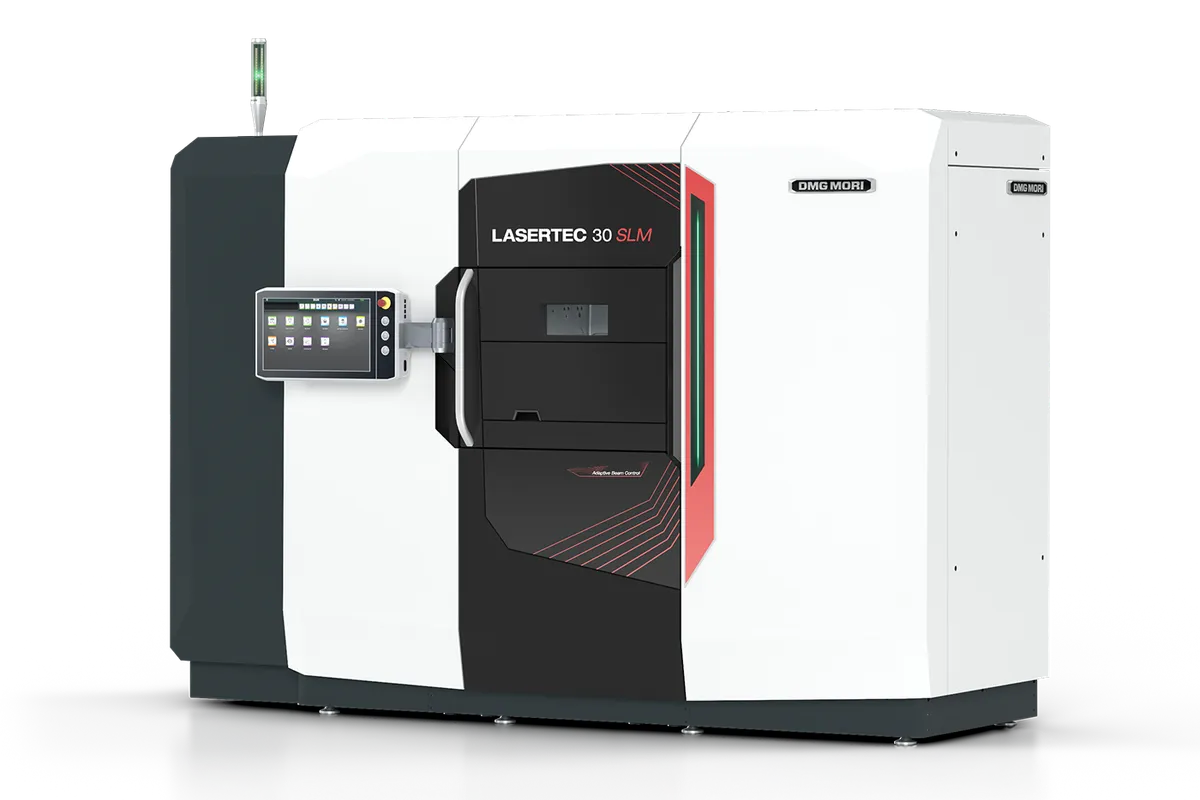

DMG Mori LASERTEC 30 SLM US

Est. $500,000 - $900,000 Specs verified 2026-10-02 · dmgmori.com Updated 2026-10-02

Image: dmgmori.com, DMG Mori

Key Specifications

X Travel

300 mm (11.8 in)

Y Travel

300 mm (11.8 in)

Z Travel

300 mm (11.8 in)

focus diameter

86 µm (0.0034 in)

min layer thickness

30 µm (0.0012 in)

laser power

1,200 W

How much does the DMG Mori LASERTEC 30 SLM US cost?

Estimated price range

Est.$500,000 - $900,000

Our best estimate for a metal additive manufacturing in this class — not a quote from DMG Mori. Configuration moves it a long way.

Overview

The DMG MORI LASERTEC 30 SLM US is a powder bed machine for selective laser melting with a cubic build volume of 300 × 300 × 300 mm (11.8 × 11.8 × 11.8 in) and a 1,200 W programmable laser as standard. A 1,500 W laser is optional.

How the power is delivered matters as much as the amount. The beam can be run with a Gaussian profile, which DMG MORI assigns to precision and surface finish, or a ring profile, which it assigns to productivity and stability at high power. Adaptive Beam Control is a feedforward control of laser power and beam shape, so both are set for the geometry being melted. The focus diameter is 86 µm (0.0034 in) and the minimum layer thickness is 30 µm (0.0012 in).

The mechanics follow machine-tool practice. The core is a 2-piece cast and machined assembly, the drive is a ball screw with linear rods, and position is read by a linear scale encoder with 5 nm resolution. The powder bed is recoated with electrostatic technology.

Chiller and filter are integrated, so the machine stands on a single footprint with no separate units to place. Two filter elements are fitted and a cyclone separator is optional. Powder comes from an exchangeable tank with self-aligning feet and quick connections for a toolless changeover. The tank is weighed and powder consumption is calculated, its atmosphere is controlled through quick-connect pneumatic lines, and DMG MORI states that its capacity covers a full-height build without interruption.

Against the LASERTEC 30 SLM, which has a 325 × 325 × 400 mm (12.8 × 12.8 × 15.7 in) build volume and 1,000 W of listed laser power, the US model gives up build height for laser power.

Full Specifications

Parameter	Value
Focus Diameter	86 µm (0.0034 in)
Min Layer Thickness	30 µm (0.0012 in)
Laser Power	1,200 W
X-Axis Travel	300 mm (11.8 in)
Y-Axis Travel	300 mm (11.8 in)
Z-Axis Travel	300 mm (11.8 in)
Recoating	Electrostatic powder bed recoating
Build Volume	300 x 300 x 300 mm
Encoder Resolution	5 nm (linear scale encoder)
Laser Source	1,200 W programmable laser (standard); 1,500 W (optional)
Beam Shape	Gaussian or Ring
Filter System	Two filter elements; cyclone separator optional

Specifications sourced from dmgmori.com — verified 2026-10-02

Strengths & Limitations

Strengths

1,200 W programmable laser as standard, with 1,500 W available as an option
Selectable beam shape: Gaussian for precision and surface finish, ring for productivity at high power
Adaptive Beam Control gives feedforward control of laser power and beam shape
Linear scale encoder with 5 nm resolution on a 2-piece cast and machined core
Chiller and filter integrated in a single footprint
Exchangeable powder tank with weight detection and toolless changeover

Limitations

Build height is 300 mm (11.8 in), against 400 mm (15.7 in) on the LASERTEC 30 SLM
The 1,500 W laser and the cyclone separator are options
No maximum build weight is listed for this model
The listed data does not state how many lasers the machine has

Best For

Parts that fit a 300 × 300 × 300 mm (11.8 × 11.8 × 11.8 in) build volume Builds that benefit from a ring beam profile at high laser power Components with conformal and internal cooling channels Topology-optimised and weight-optimised structures Mixed plates with different designs built in one job

Frequently Asked Questions

01 What laser power does the LASERTEC 30 SLM US have?

A 1,200 W programmable laser is standard and a 1,500 W laser is optional. The beam shape can be Gaussian, for precision and surface finish, or ring, for productivity and stability at high power, and Adaptive Beam Control applies feedforward control to both power and shape.

02 How big is the build volume of the LASERTEC 30 SLM US?

300 × 300 × 300 mm (11.8 × 11.8 × 11.8 in). The LASERTEC 30 SLM is larger at 325 × 325 × 400 mm (12.8 × 12.8 × 15.7 in), so a part taller than 300 mm (11.8 in) belongs on that machine.

03 What is the smallest layer and spot size?

The minimum layer thickness is 30 µm (0.0012 in) and the focus diameter is 86 µm (0.0034 in). The Gaussian beam profile is the one DMG MORI associates with precision and surface finish, so fine features would be run with that shape.

04 How is powder handled on the LASERTEC 30 SLM US?

Powder is supplied from an exchangeable tank system with self-aligning feet and quick connections, changed without tools. The tank's weight is detected and powder consumption is calculated. The atmosphere in the tank is controlled through quick-connect pneumatic lines, and labelling on the tank confirms the material type.

05 Does the machine need a separate chiller or filter unit?

No. DMG MORI integrates the chiller and the filter, so the machine occupies a single footprint. Filtration uses two filter elements, which DMG MORI links to a long filter lifetime, and a cyclone separator can be added as an option.
