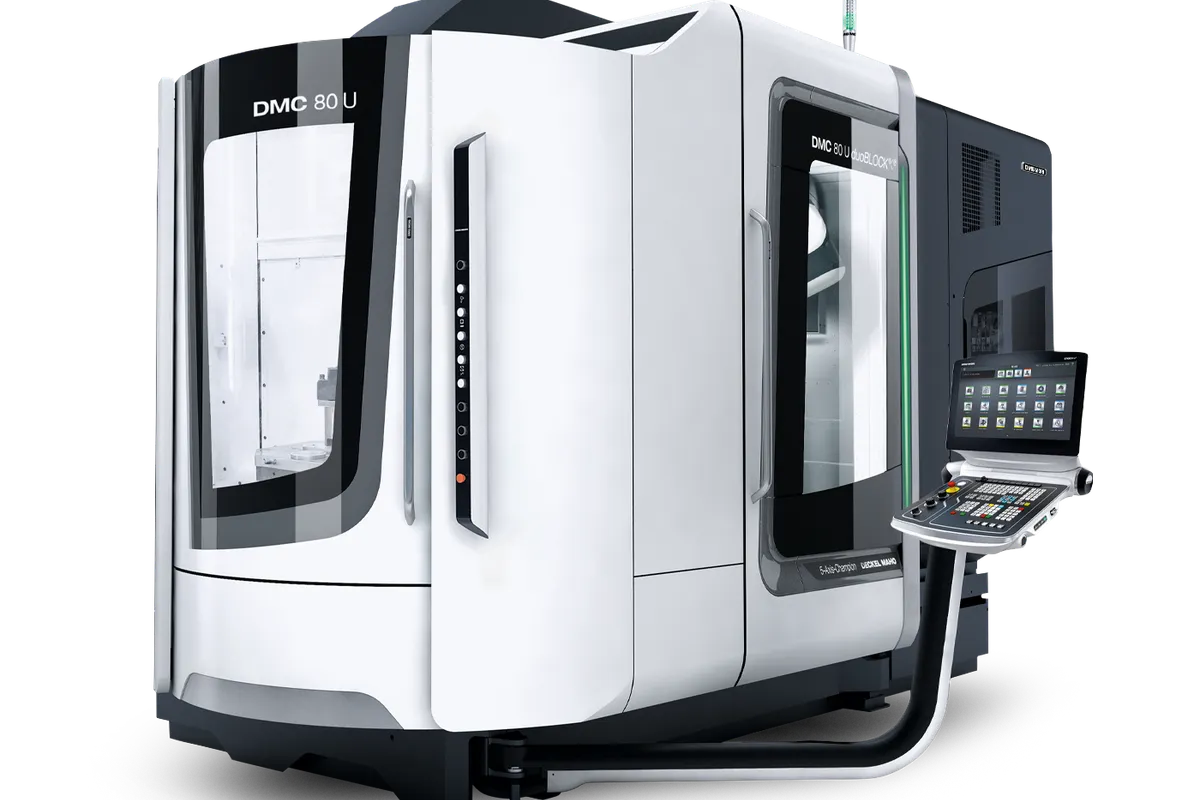

DMG Mori DMC 80 U duoBLOCK

$600,000 - $950,000 Updated 2026-03-13

Key Specifications

X Travel

800 mm (31.5 in)

Y Travel

1,050 mm (41.3 in)

Z Travel

850 mm (33.5 in)

Max Spindle

12,000 RPM (15,000 / 20,000 RPM optional)

Spindle Taper

HSK-A100

Tool Capacity

60 tools standard (up to 453)

Overview

The DMG Mori DMC 80 U duoBLOCK is the entry point into the heavy-duty 5-axis duoBLOCK platform, delivering a stiffness-to-footprint ratio that puts most competitors on notice. Built around the signature duoBLOCK construction with three guide ways per axis on the Y-axis and thermosymmetric design, this machine handles aggressive titanium and Inconel roughing that would chatter lighter 5-axis platforms into submission.

Travel sits at 800 x 1,050 x 850 mm (31.5 x 41.3 x 33.5 in), giving shops a generous work envelope for medium-sized aerospace structural components, mold cavities, and complex medical implant fixtures. The B-axis swivels through a full 210 degrees (-30 to +180) while the C-axis provides 360-degree continuous rotation, both driven by direct-drive motors that eliminate backlash and deliver positioning accuracy that holds through multi-hour roughing cycles.

Spindle options define this platform. The powerMASTER motor spindle delivers 77 kW (103 hp) continuous with 1,000 Nm (737 ft-lb) of torque at speeds up to 12,000 RPM through an HSK-A100 taper. For shops that need turning capability on the same platform, the 5X torqueMASTER gear spindle pushes 1,300 Nm (958 ft-lb) at 52 kW (70 hp). Higher-speed spindle options reach 15,000 and 20,000 RPM for aluminum-intensive aerospace work.

The tool magazine scales from 60 pockets in the standard wheel configuration up to 453 tools in the chain magazine, giving job shops and production cells enough capacity for complex multi-feature parts without operator intervention. Tool change time hits 5.6 seconds chip-to-chip, which is competitive for a machine this size.

Table load capacity of 1,400 kg (3,086 lb) handles serious workpieces. The NC swivel rotary table with direct-drive motors on both axes delivers the rigidity needed for interrupted cuts on cast iron and hardened steel. Water-cooled feed drives on all linear axes keep thermal growth in check during extended production runs, and the Spindle Growth Sensor (SGS) compensates for spindle thermal expansion in real time.

The machine runs on either SIEMENS SINUMERIK ONE or HEIDENHAIN TNC7 controls, both integrated with the CELOS X platform. Automation options include pallet changers, the PH Cell pallet handling system, and robotic loading. For shops stepping up from lighter 5-axis machines like the DMU 50 or DMU 65 monoBLOCK, the DMC 80 U duoBLOCK represents a significant jump in rigidity, power, and work envelope. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	800 mm (31.5 in)
Y-Axis Travel	1,050 mm (41.3 in)
Z-Axis Travel	850 mm (33.5 in)
B Axis Swivel	-30 to +180 degrees (210 total)
C Axis Rotation	360 degrees continuous
Max Spindle Speed	12,000 RPM (15,000 / 20,000 RPM optional)
Spindle Taper	HSK-A100
Spindle Motor Power	77 kW / 103 hp (powerMASTER)
Spindle Torque	1,000 Nm / 737 ft-lb (powerMASTER)
Torquemaster Torque	1,300 Nm / 958 ft-lb (5X torqueMASTER)
Torquemaster Power	52 kW / 70 hp
Tool Capacity	60 tools standard (up to 453)
Tool Change Time	5.6 seconds chip-to-chip
Max Workpiece Diameter	900 mm (35.4 in)
Max Workpiece Height	1,450 mm (57.1 in)
Max Table Load	1,400 kg (3,086 lb)
Rapid Traverse Rate	60 m/min (2,362 ipm)
CNC Control	SIEMENS SINUMERIK ONE / HEIDENHAIN TNC7
Coolant System	Water-cooled feed drives, SGS spindle compensation
800 Mm	31.5 in.
1050 Mm	41.3 in.
850 Mm	33.5 in.
900 Mm	35.4 in.
1450 Mm	57.1 in.
1400 Kg	3086.5 lbs.
Customer Benefits	User Interface

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

DuoBLOCK construction with three guide ways on Y-axis delivers exceptional rigidity for heavy titanium and Inconel roughing operations
PowerMASTER spindle at 1,000 Nm torque and 103 hp handles aggressive metal removal rates that lighter 5-axis platforms cannot sustain
Tool magazine expandable to 453 pockets supports complex multi-feature parts and diverse job shop work without manual intervention
1,400 kg table load capacity accommodates substantial aerospace structural components and mold bases
Water-cooled feed drives and SGS spindle compensation maintain thermal stability through extended production runs
Direct-drive B and C axes eliminate backlash for consistent 5-axis positioning accuracy over time
Pallet changer standard configuration enables automated two-pallet operation for higher spindle utilization

Limitations

Entry price north of $600K puts this machine out of reach for smaller shops that could manage with a monoBLOCK-class machine
HSK-A100 tooling is expensive compared to HSK-A63 or CAT-40 alternatives, adding significant tooling investment
Machine weight and footprint require substantial foundation preparation and floor space commitment
CELOS X interface has a learning curve for operators transitioning from Fanuc or older Siemens controls
5.6-second tool change time is adequate but not class-leading for high-mix production with frequent tool changes

Best For

Aerospace manufacturers machining titanium and Inconel structural components requiring heavy 5-axis roughing Mold and die shops producing large injection mold cavities with complex 3D contours in hardened steel Medical device manufacturers machining large orthopedic implant fixtures and surgical instrument assemblies Job shops stepping up from lighter 5-axis platforms to handle heavier workpieces and more aggressive cutting parameters Production cells requiring automated pallet-changed 5-axis machining with high spindle utilization Energy sector manufacturers machining turbine components and complex valve bodies

Frequently Asked Questions

01 What does a DMG Mori DMC 80 U duoBLOCK cost?

New DMC 80 U duoBLOCK machines typically fall in the $600,000 to $950,000 range depending on spindle selection, tool magazine size, control choice, and automation options. Adding the torqueMASTER gear spindle, expanded 453-tool magazine, and PH Cell automation pushes toward the upper end. Used units from 2018-2020 occasionally appear in the $350,000-$500,000 range.

02 How does the duoBLOCK compare to the monoBLOCK platform?

The duoBLOCK uses a split-column design with three guide ways on the Y-axis versus the monoBLOCK single-column C-frame construction. This gives the duoBLOCK substantially higher rigidity and damping, making it the pick for heavy roughing in titanium, Inconel, and hardened steel. The monoBLOCK is more compact and affordable for shops machining primarily aluminum and mild steel.

03 Which spindle should I choose?

The powerMASTER motor spindle at 12,000 RPM and 1,000 Nm is the all-around pick for shops cutting a mix of steel, titanium, and aluminum. The 5X torqueMASTER gear spindle at 1,300 Nm is purpose-built for heavy roughing in difficult materials and adds turning capability. For aerospace aluminum shops, the 15,000 or 20,000 RPM high-speed options deliver the surface speeds needed for productive HSM strategies.

04 Can the DMC 80 U duoBLOCK do mill-turn operations?

Yes, with the FD variant and torqueMASTER spindle. The direct-drive C-axis table rotates at speeds up to 800 RPM, enabling turning operations on the same setup as 5-axis milling. This eliminates a separate lathe operation for parts with both milled features and turned diameters.

05 What automation options are available?

Standard configuration includes a two-position pallet changer. DMG Mori offers the PH Cell pallet handling system for multi-pallet automation, the PH 150 for high-volume production, and robotic loading. The 453-tool magazine combined with pallet automation enables extended unmanned production runs across diverse part mixes.
