Citizen Miyano LX-06E
This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-03 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

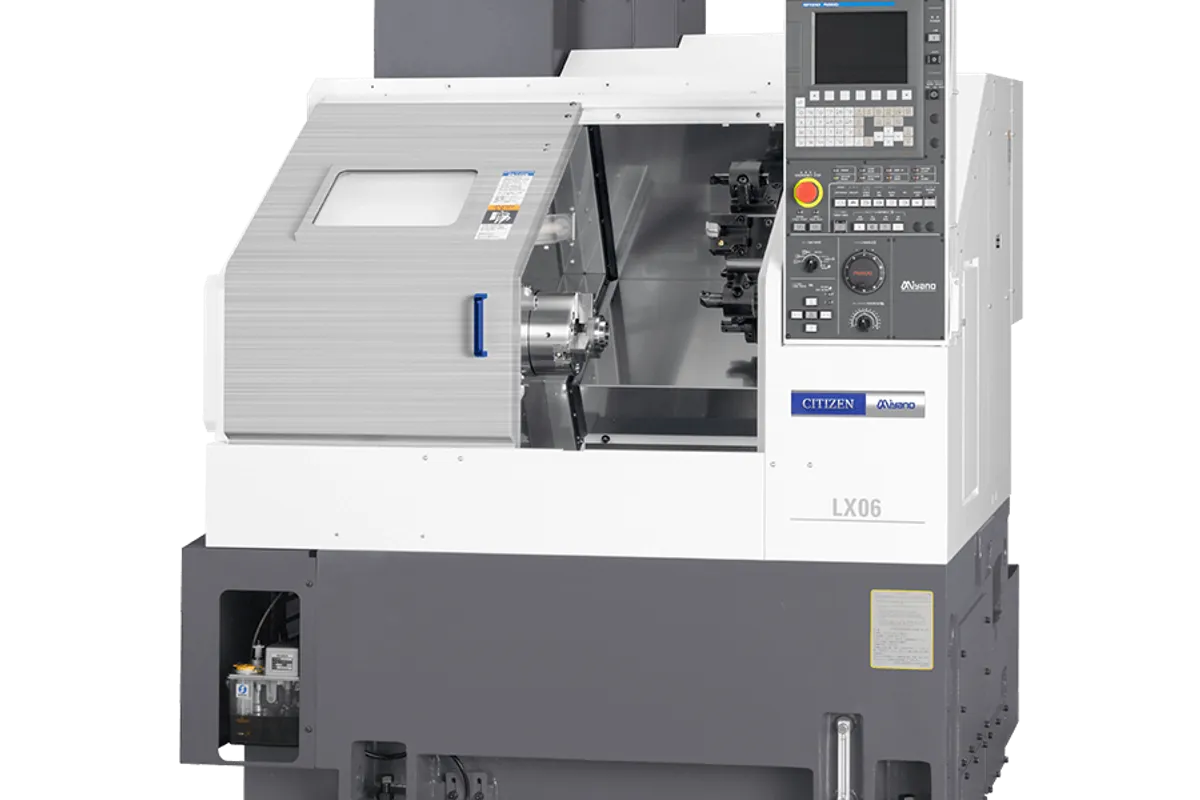

Image: cmj.citizen.co.jp, Citizen Machinery
Key Specifications
Spindle Power
Max Turn Length
max turning diameter
main spindle speed
spindle motor
number of axes
How much does the Citizen Miyano LX-06E cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Citizen Machinery. Configuration moves it a long way.
Overview
The Citizen Miyano LX-06E is a compact two-axis (X, Z) fixed-headstock CNC chucking lathe with an 8-station turret, a tailstock and 150 mm of X stroke against 300 mm of Z. It is not in Citizen's current lineup; the Citizen table shown is the LX-06E3 column, and a used LX-06E may be an earlier generation.
Before relying on the headline figures, note that the page carries two sets of values for the chuck size, the maximum machining diameter, the spindle speed and the spindle motor. Those four should be read off the machine's nameplate and documentation rather than taken from this table. The rows that agree describe the tooling, the strokes and the tailstock.
The turret indexes in 0.25 sec per position. OD tools take 25 mm square shanks and the tool holes are 40 mm in diameter, a generous boring bar size for a machine of this class. Collet work is listed to 51 mm in diameter in both the stationary and draw types, which suits short parts cut from bar stock or slugs.
The tailstock carries an MT.3 live center and is rated at a maximum thrust of 4.9 kN on its slide. That makes the LX-06E a candidate for shafts and pins as well as chucked parts, within the 300 mm Z stroke. The machine takes 1,620×1,480 mm of floor and weighs approx. 2,820 kg. The control is listed as a Mitsubishi M80.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 150 mm (5.9 in) |
| Max Turning Length | 100 mm (3.94 in) |
| Main Spindle Speed | 4,500 RPM |
| Spindle Motor | 3.7 kW (5 hp) |
| Number of Axes | 2 (X, Z) |
| Turret Positions | 8 |
| Chuck Size | 6 inch |
| Rapid Traverse X | 15 m/min |
| Rapid Traverse Z | 20 m/min |
| CNC Control | Mitsubishi M80 (Citizen Miyano) |
| Items | LX-06E3 |
| Power Chuck Size | 8" hydraulic drive |
| Maximum Diameter of Collet Chuck | Stationary/Draw type |
| Maximum Machining Diameter | 210mm Dia. |
| Maximum Machining Length | Limited by tail-stock |
| Spindle Speed Range | 40~4,000min-1 |
| Spindle Motor Power | AC 11/7.5kW |
| Type of Turret | 8St.Turret |
| Shank Height of Square Turning Tool | 25mm Sq. |
| Tool Hole Diameter | 40mm Dia. |
| Z Axis | 300mm |
| Turret Indexing Time | 0.25sec./1pos. |
| Live Center Size | MT.3 |
| Tail Stock Slide Maximum Thrust Force | 4.9kN/1.9Mpa |
| Quill Travel | 100 |
| Tail Stock Slide Travel | 185 |
| Floor Space | 1,620×1,480mm |
| Maximum Diameter of Collet Chuck Stationary Draw Type | 51mm Dia./51mm Dia. |
| Maximum Machining Length Limited by Tail Stock | 220mm |
| Slide Stroke X Axis | 150mm |
| Slide Stroke Z Axis | 300mm |
| Machine Weight Approx | 2,820kg |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 8-station turret indexing in 0.25 sec per position
- Takes 25 mm square OD tools and boring bars in 40 mm diameter holes
- Tailstock with an MT.3 live center and 4.9 kN of maximum slide thrust
- Collet capacity of 51 mm in both stationary and draw types
- Compact: 1,620×1,480 mm of floor and approx. 2,820 kg
Limitations
- Chuck size, maximum diameter, spindle speed and motor rating appear twice with different values and must be confirmed on the machine
- Two axes only; the table lists no live tooling, Y axis or sub-spindle
- 8 turret stations limit the tool list for one set-up
- Not in Citizen's current lineup, so documentation for older generations may differ from the LX-06E3 figures
Best For
Frequently Asked Questions
01
The table on this page holds two different sets of figures for the spindle speed, the motor rating, the chuck size and the maximum diameter. Read them from the machine's nameplate and documentation; on a used LX-06E those figures depend on the generation.
02
The turret has 8 stations and indexes in 0.25 sec per position. OD tools have 25 mm square shanks and boring bars or drills fit 40 mm diameter tool holes.
03
Yes. It takes an MT.3 live center, and the tailstock slide has a maximum thrust of 4.9 kN. Combined with the 300 mm Z stroke, that allows shafts and pins to be turned between chuck and centre.
04
It needs 1,620×1,480 mm of floor space and weighs approx. 2,820 kg. The slide strokes are 150 mm in X and 300 mm in Z, and the control is listed as a Mitsubishi M80.
