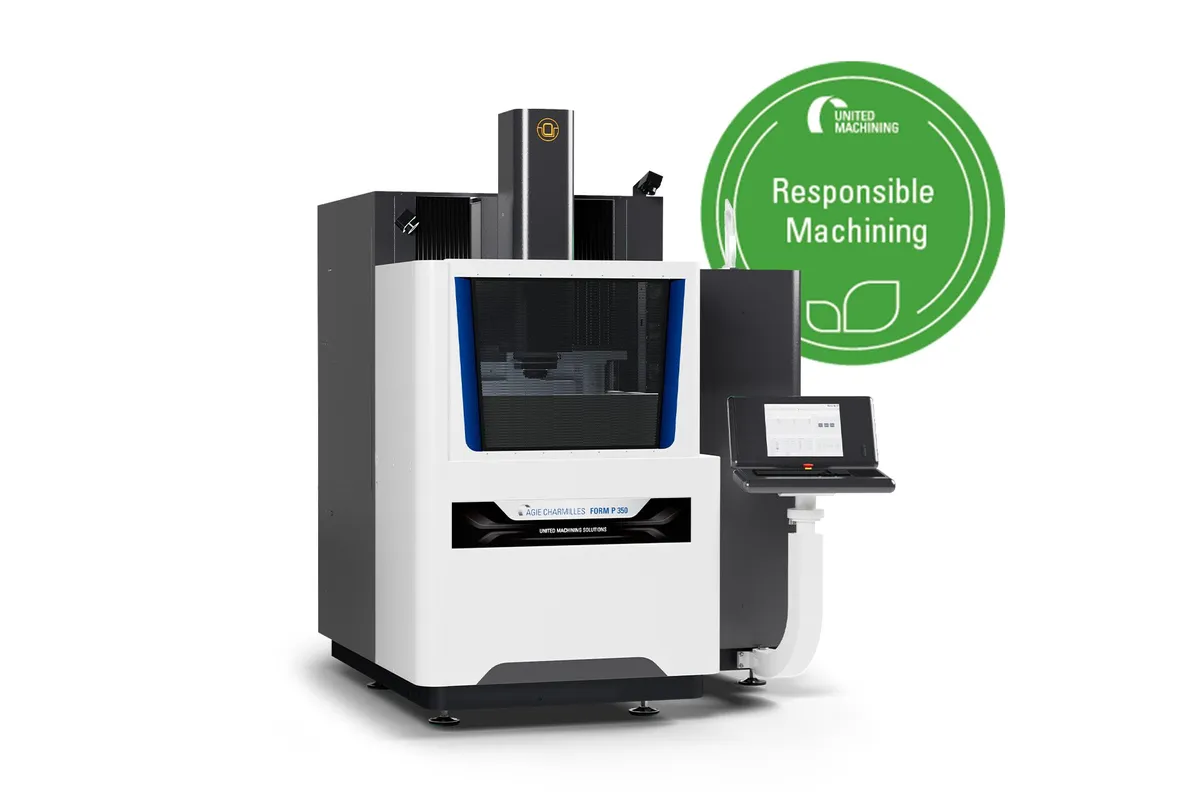

GF Machining AgieCharmilles FORM P 900
Key Specifications
X/Y/Z Travel
Max Workpiece Dimensions
Max Workpiece Weight
Max Electrode Weight
Surface Finish Ra
Dielectric Capacity
Overview
The GF Machining Solutions AgieCharmilles FORM P 900 is the largest FORM P sinker EDM. X/Y/Z 900x700x500mm, workpiece 1,670x1,120x560mm at 3,000 kg. Full ITM with extended sensors, 2,500L dielectric. IPG achieves Ra 0.1 micron. 7,000 kg. AEC support. $280K-$420K. Competes with Makino EDAC8, Mitsubishi EA40V, ONA AV80.
Full Specifications
| Parameter | Value |
|---|---|
| X/Y/Z Travel | 900 x 700 x 500 mm (35.4 x 27.6 x 19.7 in) |
| Max Workpiece Dimensions | 1,670 x 1,120 x 560 mm |
| Max Workpiece Weight | 3,000 kg (6,614 lb) |
| Max Electrode Weight | 50 kg (110 lb) |
| Surface Finish Ra | 0.1 µm |
| Dielectric Capacity | 2,500 L (663 gal) |
| Thermal Management | ITM extended sensor array |
| Control System | AC FORM CNC |
| Power Supply | IPG with iGAP |
| Auto Electrode Changer | AEC option |
| Machine Dimensions | 2,970 x 3,100 x 3,320 mm |
| Machine Weight | 7,000 kg (15,432 lb) |
| Machine Dimensions | 2970 x 3100 x 3320 mm116.93 x 122.05 x 130.71 in |
| Total Weight | 7000 kg15432 lbs |
| Travel X Y Z | 900 x 700 x 500 mm35.43 x 27.56 x 19.68 in |
| Min Max Distance Between Table And Chuck | 322-822 mm12.68-32.36 in |
| Best Surface Finish Ra | 0.1 μm |
| Capacity | 2500 l662.5 gal |
| Max Workpiece Dimensions | 1670 x 1120 x 560 mm65.75 x 40.09 x 22.05 in |
| Max Workpiece Weight | 3000 kg6613.86 lbs |
| Max Electrode Weight | 50 kg110.23 lbs |
| Bath Level | 100 - 500 mm3.94 - 21.65 in |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 900x700mm travel, 3,000 kg capacity
- Full ITM extended sensors
- 2,500L dielectric stability
- IPG optimizes removal rate
- 500mm Z for deep cavities
- AEC unattended operation
Limitations
- 7,000 kg infrastructure needs
- Ra 0.1 vs 0.08 on smaller models
- 50 kg electrode limit
- 2,500L fluid costs
Best For
Frequently Asked Questions
01
1,670x1,120x560mm at 3,000 kg.
02
IPG configured for removal rate on large volumes.
03
Reinforced concrete for 10,000 kg combined load.
04
Makino EDAC8, Mitsubishi EA40V, ONA AV80.
