Chevalier FSG-C1224CNCII

Q: How much does the Chevalier FSG-C1224CNCII cost?

The price estimate for the Chevalier FSG-C1224CNCII is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chevalier-fsg-c1224cncii#price; the request is passed to Chevalier Machinery or an authorised dealer.

Specs verified 2026-10-05 · chevalierusa.com Updated 2026-10-05

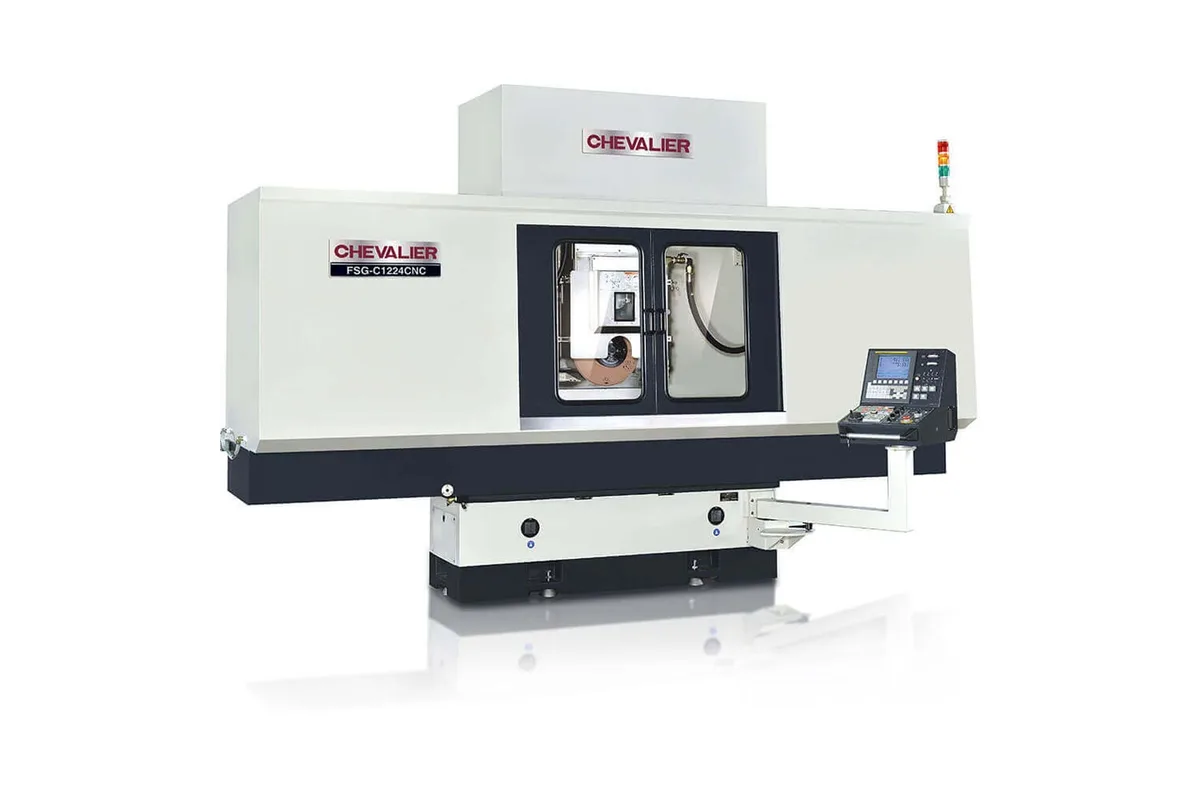

Chevalier FSG-C1224CNCII heavy duty CNC surface grinder

Image: chevalierusa.com, Chevalier Machinery

Key Specifications

Spindle Power

30 hp (opt. 50 hp); 22 kW (opt. 37.5 kW)

control

FANUC

grinding length

24 in (610 mm)

grinding width

12 in (305 mm)

distance table to wheel centerline

24 in (610 mm)

max table load

920 lb (420 kg)

How much does the Chevalier FSG-C1224CNCII cost?

Price estimate

Uncertain

We do not have a price for the Chevalier FSG-C1224CNCII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Chevalier FSG-C1224CNCII is a heavy CNC surface grinder: a 24 in (610 mm) by 12 in (305 mm) grinding area under a 30 hp spindle, with 50 hp available as an option. Chevalier sells it as its heavy-duty FANUC-controlled model, and the wheel says why. It is Ø14 in x 4 in x Ø5 in, a 4 in (102 mm) wide wheel on a machine whose whole grinding width is 12 in (305 mm).

A wheel that wide is there for stock removal and for wide forms. The spindle that drives it runs from 500 to 3500 rpm and, according to the maker, sits in six ABEC class 7 (P4) angular contact ball bearings. All three axes are AC servo driven, and Chevalier describes the machine as suitable for creep-feed grinding.

Each axis has its own way system. The table (X) rides on double V guideways coated with Turcite-B, the vertical axis (Y) on hardened and ground box guideways, and the cross axis (Z) on linear guideways. Table speed is variable from 0.393 to 590 ipm (10 to 15,000 mm/min), which covers both a slow creep-feed pass and conventional reciprocating strokes. Travel is 32 in (810 mm) along the table and 16 in (400 mm) across.

The control runs four automatic cycles: rapid approach, rough grinding, fine grinding, and wheel dressing with automatic compensation. The table takes 920 lb (420 kg). The machine itself weighs 19,800 lb (9,000 kg) and needs 158 in x 116 in x 105 in of floor and height, so it is a foundation job and not something to move in on skates between two other machines.

Full Specifications

Parameter	Value
CNC Control	FANUC
Grinding Length	24 in (610 mm)
Grinding Width	12 in (305 mm)
Distance Table to Wheel Centerline	24 in (610 mm)
Max Table Load	920 lb (420 kg)
Table Speed	0.393 to 590 ipm (10 to 15,000 mm/min)
Longitudinal Travel X	32 in (810 mm)
Cross Travel Z	16 in (400 mm)
Column Feed	0 to 118 ipm (0 to 3,000 mm/min)
Wheelhead Feed	0 to 39 ipm (0 to 1,000 mm/min)
Spindle Speed	500 to 3500 rpm
Spindle Motor Power	30 hp (opt. 50 hp); 22 kW (opt. 37.5 kW)
Wheel Size	Ø14 in x 4 in x Ø5 in (Ø356 x 102 x Ø127 mm)
Machine Dimensions	158 in x 116 in x 105 in (4,000 x 2,940 x 2,660 mm)
Machine Weight	19,800 lb (9,000 kg)

Specifications sourced from chevalierusa.com — verified 2026-10-05

Strengths & Limitations

Strengths

30 hp spindle as standard, with a 50 hp option, on a 24 in (610 mm) by 12 in (305 mm) grinding area
Takes a 4 in (102 mm) wide, 14 in diameter wheel for heavy stock removal and wide forms
Table speed is variable from 0.393 to 590 ipm (10 to 15,000 mm/min), from creep-feed rates to reciprocating strokes
Four automatic cycles are listed: rapid approach, rough grinding, fine grinding, and wheel dressing with automatic compensation
The spindle is carried in six ABEC class 7 (P4) angular contact ball bearings, according to the maker

Limitations

Weighs 19,800 lb (9,000 kg) and occupies 158 in x 116 in x 105 in, far more than a toolroom grinder of the same chuck size
Table load is 920 lb (420 kg), modest next to the spindle power
The 50 hp motor is an option; the standard machine has 30 hp
Cross travel is 16 in (400 mm), so parts wider than the 12 in (305 mm) grinding width cannot be covered

Best For

Creep-feed grinding of forms in hardened steel Heavy stock removal on parts up to 24 in (610 mm) long Wide-wheel plunge and form work with a 4 in (102 mm) wheel Production cells that run rough, finish and dress cycles unattended

Frequently Asked Questions

01 How does the FSG-C1224CNCII differ from the FSG-B818CNCII?

Size and power. The FSG-C1224CNCII grinds 24 in (610 mm) by 12 in (305 mm) with a 30 hp spindle (50 hp optional) and a 4 in wide wheel. The FSG-B818CNCII grinds 18 in (457 mm) by 8 in (203 mm) with 15 hp (20 hp optional) and a 1.25 in wide wheel. Both use a FANUC control and AC servo drives on all three axes.

02 What guideways does the FSG-C1224CNCII have?

Chevalier lists a different way system on each axis. The X axis has double V guideways coated with Turcite-B, the Y axis has hardened and ground box guideways, and the Z axis runs on linear guideways. All three are driven by AC servo motors.

03 How fast does the table move?

Table speed is variable from 0.393 to 590 ipm (10 to 15,000 mm/min). The column feeds at 0 to 118 ipm (0 to 3,000 mm/min) and the wheelhead at 0 to 39 ipm (0 to 1,000 mm/min). Table travel is 32 in (810 mm) and cross travel is 16 in (400 mm).

04 What does the FSG-C1224CNCII need on the shop floor?

The table gives a floor space of 158 in x 116 in x 105 in (4,000 x 2,940 x 2,660 mm) and a net weight of 19,800 lb (9,000 kg). The electrical supply is not stated in the maker's table, so ask for it with the 30 hp or 50 hp spindle you intend to order.
