Chevalier SMART-H/B2464IV

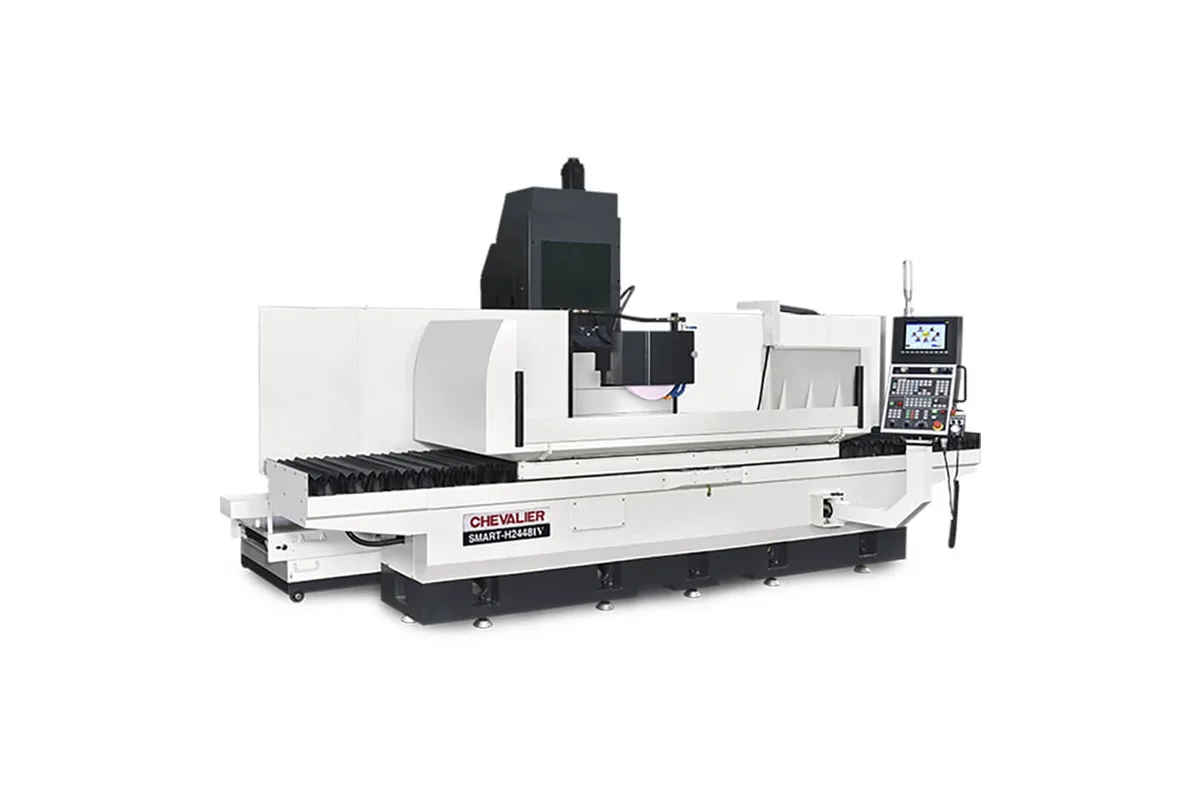

Image: chevalierusa.com, Chevalier Machinery
Key Specifications
Spindle Power
control
grinding length
grinding width
distance table to wheel centerline
max table load
How much does the Chevalier SMART-H/B2464IV cost?
Price estimate
We do not have a price for the Chevalier SMART-H/B2464IV that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Chevalier SMART-H/B2464IV is the middle length of the 24 in wide SMART-IV grinders, with 63.0 in (1,600 mm) of grinding length and 23.6 in (600 mm) of width. In the range it sits between the 47.2 in SMART-H/B2448IV and the 78.7 in SMART-H/B2480IV, and all three share one cross section: 27.0 in (685 mm) of cross travel and 33.5 in (850 mm) from table to wheel centerline.
So the choice within the frame comes down to length, load and floor. This model travels 66.9 in (1,700 mm), carries 3,855 lb (1,750 kg) and weighs 20,900 lb (9,500 kg). Unusually for the series, the maker gives a single footprint for both versions: 242.7 in x 130.7 in x 112.2 in (6,165 x 3,320 x 2,850 mm). That is over 20 feet of wall, most of it the table's stroke and guarding.
The spindle is a 15 hp (11 kW) cartridge unit, variable from 500 to 2,200 rpm, with a Ø16 in x 2 in x Ø5 in wheel. Table speed is 16 to 98.4 fpm on the H version and 0 to 65.6 fpm on the B. The cross axis feeds at 0 to 16.4 fpm, quicker than the 0 to 10 fpm of the 20 in wide SMART-H/B2064IV, which shortens the non-cutting time on wide surface passes.
Both horizontal axes run on hand-scraped, Turcite-B coated double V ways, and Chevalier lists automatic dressing with compensation in the grinding cycle. The table size row in the maker's table is not printed cleanly for this model.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | SMART iControl |
| Grinding Length | 63.0 in (1,600 mm) |
| Grinding Width | 23.6 in (600 mm) |
| Distance Table to Wheel Centerline | 33.5 in (850 mm) |
| Max Table Load | 3,855 lb (1,750 kg) |
| Table Speed | H: 16 to 98.4 fpm / B: 0 to 65.6 fpm (H: 5 to 30 m/min / B: 0 to 20 m/min) |
| Longitudinal Travel X | 66.9 in (1,700 mm) |
| Cross Travel Z | 27.0 in (685 mm) |
| Cross Feed Speed | 0 to 16.4 fpm (0 to 5,000 mm/min) |
| Spindle Speed | 500 to 2,200 rpm |
| Spindle Motor Power | 15 hp (11 kW) |
| Wheel Size | Ø16 in x 2 in x Ø5 in (Ø405 x 50 x Ø127 mm) |
| Machine Dimensions | H/B: 242.7 in x 130.7 in x 112.2 in (H/B: 6,165 x 3,320 x 2,850 mm) |
| Machine Weight | 20,900 lb (9,500 kg) |
Specifications sourced from chevalierusa.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 63.0 in (1,600 mm) by 23.6 in (600 mm) grinding area
- Table load of 3,855 lb (1,750 kg)
- Cross feed of 0 to 16.4 fpm, against 0 to 10 fpm on the SMART-H/B2064IV
- 33.5 in (850 mm) of height from table to wheel centerline
- Spindle variable from 500 to 2,200 rpm with a 16 in wheel
Limitations
- Footprint of 242.7 in x 130.7 in x 112.2 in for either version
- Weighs 20,900 lb (9,500 kg)
- 15 hp (11 kW) spindle, the same as on much smaller SMART-IV models
- The 2 in (50 mm) wheel needs many cross steps to cover the 23.6 in (600 mm) width
Best For
Frequently Asked Questions
01
In the middle. The SMART-H/B2448IV grinds 47.2 in (1,200 mm), this model 63.0 in (1,600 mm) and the SMART-H/B2480IV 78.7 in (2,000 mm). Table loads rise from 3,525 lb (1,600 kg) on the SMART-H/B2448IV to 3,855 lb (1,750 kg) here and 4,406 lb (2,000 kg) on the SMART-H/B2480IV. Width, cross travel, clearance and spindle are shared.
02
The table lists one figure for both the H and B versions: 242.7 in x 130.7 in x 112.2 in (6,165 x 3,320 x 2,850 mm). Net weight is 20,900 lb (9,500 kg). Allow extra room for coolant filtration and for loading the table.
03
Both grind 63.0 in (1,600 mm). Against the SMART-H/B2064IV, this machine is 23.6 in (600 mm) wide instead of 19.7 in (500 mm), has 33.5 in (850 mm) to the wheel centerline instead of 28.7 in (730 mm), and carries 3,855 lb (1,750 kg) instead of 3,483 lb (1,580 kg). It also has the 16 in wheel and the faster cross feed.
04
The H version's table speed is 16 to 98.4 fpm (5 to 30 m/min) and the B version's is 0 to 65.6 fpm (0 to 20 m/min). The cross feed speed is 0 to 16.4 fpm (0 to 5,000 mm/min) on both.
