Brother Industries Vertical Machining Centers (VMC)

Brother Speedio S500Xd1

Est. $95,000 - $140,000 (new) Specs verified 2026-10-03 · machinetool.global.brother Updated 2026-10-03

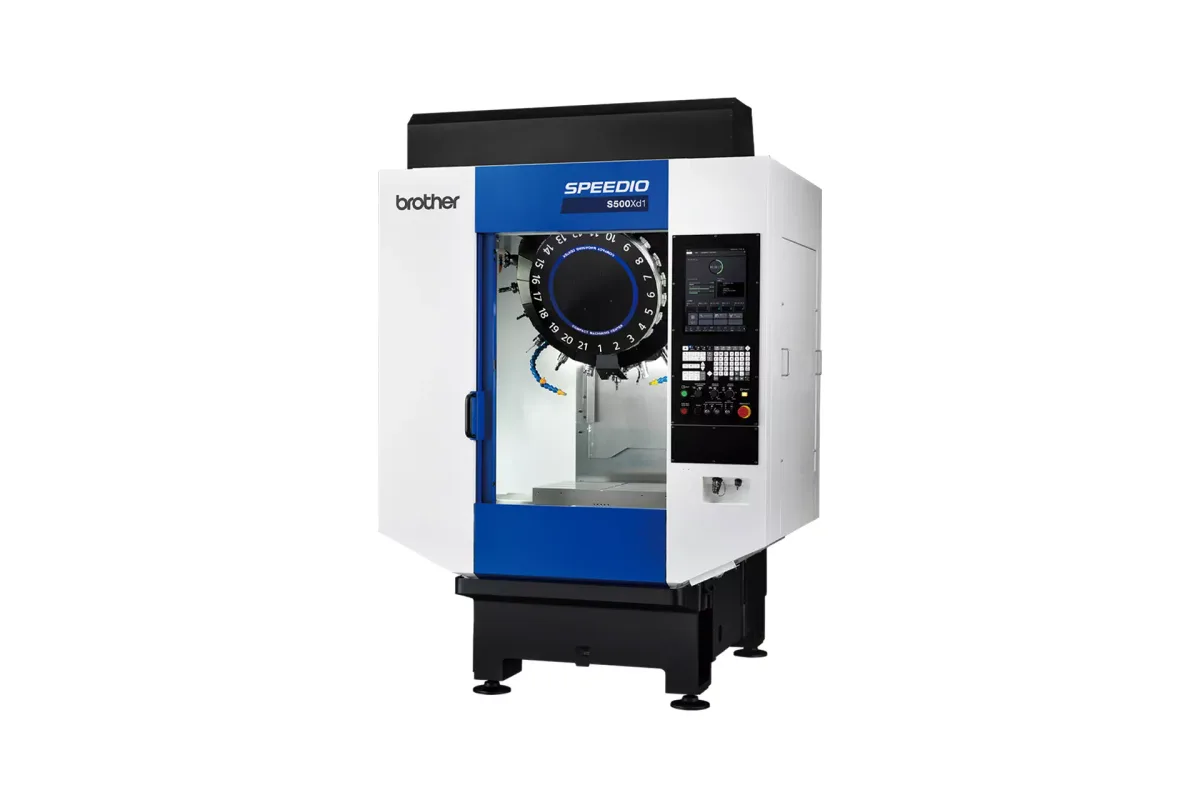

Image: machinetool.global.brother, Brother Industries

Key Specifications

X Travel

500 mm (19.7 in)

Y Travel

400 mm (15.7 in)

Z Travel

300 mm (11.8 in)

Max Spindle

10,000 rpm (16,000 or 27,000 rpm optional)

Spindle Taper

BT30 (7/24 taper No. 30)

Tool Capacity

14/21/28 tools

How much does the Brother Speedio S500Xd1 cost?

Estimated price range

Est.$95,000 - $140,000 (new)

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Brother Industries. Configuration moves it a long way.

Overview

The Brother Speedio S500Xd1 is a 30-taper vertical machining center with 500 × 400 × 300 mm (19.7 × 15.7 × 11.8 in) of travel, a 600 x 400 mm (23.6 x 15.7 in) table, a 10,000 rpm BT30 spindle as standard and a magazine of 14, 21 or 28 tools, controlled by Brother's CNC-D00.

Two options define how far this machine can be pushed. The first is table load: 250 kg (551 lb) as standard, or 400 kg (881 lb) with the option. That higher figure opens the machine to a steel fixture plate loaded with several parts, or a vise plus a compact rotary unit, which would be marginal at the standard rating. The second is the 28-tool magazine. A shop running a family of parts can leave every tool for the family in the machine and switch jobs by program rather than by reloading the changer.

Tool changes stay fast with the bigger magazine. Tool to tool is 0.6 sec with 14 or 21 tools and 0.7 sec with 28; chip to chip is 1.2 and 1.3 sec. Tools up to 250 mm (9.8 in) long and ø110 mm (4.3 in) in diameter fit, at 3.0 kg (6.6 lb) each.

The spindle is rated 10.1 kW for 10 min and 7.1 kW continuous. Options are 16,000 and 27,000 rpm spindles and a high-torque 10,000 rpm spindle listed in the power-capacity row. Tapping reaches 6,000 rpm, or 8,000 with the 27,000 rpm spindle. Rapids are 50 m/min (1,969 ipm) on X and Y and 56 m/min (2,205 ipm) on Z.

Against the older SPEEDIO S500X1, which covers 1,560 x 2,220 mm (61.4 x 87.4 in), the S500Xd1 is shallower at 1,560 × 2,026 mm (61.4 × 79.8 in), though it weighs more at 2,400 kg (5,292 lb). It needs AC 200 to 230 V three-phase, 9.5 kVA with the standard spindle and 45 L/min of air at 0.4 - 0.6 MPa.

Full Specifications

Parameter	Value
CNC Control	Brother CNC-D00
X-Axis Travel	500 mm (19.7 in)
Y-Axis Travel	400 mm (15.7 in)
Z-Axis Travel	300 mm (11.8 in)
Spindle Nose to Table	180 - 480 mm (7.1 - 18.9 in)
Table Size	600 x 400 mm (23.6 x 15.7 in)
Max Table Load	250 kg (551 lb); 400 kg (881 lb) with option
Max Spindle Speed	10,000 rpm (16,000 or 27,000 rpm optional)
Tapping Speed Max	6,000 rpm (8,000 with 27,000 rpm spindle)
Spindle Taper	BT30 (7/24 taper No. 30)
Dual Contact Spindle	Optional
Coolant Through Spindle	Optional
Rapid Traverse Rate	50 / 50 / 56 m/min (1,969 / 1,969 / 2,205 ipm)
Max Cutting Feedrate	30,000 mm/min (1,181 ipm)
Tool Shank	MAS-BT30
Pull Stud	MAS-P30T-2
Tool Capacity	14/21/28 tools
Max Tool Length	250 mm (9.8 in)
Max Tool Diameter (full magazine)	ø110 mm (4.3 in)
Max Tool Weight	3.0 kg (6.6 lb) per tool
Tool Selection	Random shortcut method
Tool to Tool Time	0.6 / 0.7 sec (14 or 21 tools / 28 tools)
Chip to Chip Time	1.2 / 1.3 sec (14 or 21 tools / 28 tools)
Spindle Motor Power	10.1 kW (10 min) / 7.1 kW continuous
Axis Feed Motor	X,Y: 1.0 / Z: 2.0 kW
Power Supply	AC 200 to 230 V±10%, 3-phase, 50/60Hz±2%
Power Capacity	10,000min-1 specifications : 9.5 16,000min-1 specifications(Optional) : 9.5 10,000min-1 high-torque specifications(Optional) : 10.4 27,000min-1 specifications(Optional) : 9.5 kVA
Air Pressure	0.4 - 0.6 MPa
Air Flow	45 L/min
Machine Height	2,498 mm (98.4 in)
Floor Space Required	1,560 × 2,026 mm (61.4 × 79.8 in)
Machine Weight	2,400 kg (5,292 lb)
Positioning Accuracy	0.006 - 0.020 mm (0.00024 - 0.00079 in)
Repeatability	< 0.004 mm (0.00016 in)
Front Door	2 doors

Specifications sourced from machinetool.global.brother — verified 2026-10-03

Strengths & Limitations

Strengths

Table load option of 400 kg (881 lb) over the standard 250 kg (551 lb)
28-tool magazine available alongside the 14 and 21-tool versions
0.6 sec tool-to-tool and 1.2 sec chip-to-chip with 14 or 21 tools
Tools up to 250 mm (9.8 in) long and ø110 mm (4.3 in) in diameter
Spindle choices up to 27,000 rpm, plus a high-torque 10,000 rpm option

Limitations

Standard table load is 250 kg (551 lb); 400 kg (881 lb) needs the option
Z travel of 300 mm (11.8 in), with no taller Z listed for this model
Continuous spindle rating of 7.1 kW limits heavy steel roughing
Dual-contact taper and through-spindle coolant are options, not standard

Best For

Families of parts that keep all their tools in the 28-tool magazine Multi-part steel fixtures within the optional 400 kg (881 lb) table rating Two-vise setups across 500 mm (19.7 in) of X Deep holes and long taps with tools up to 250 mm (9.8 in)

Frequently Asked Questions

01 How much weight can the Speedio S500Xd1 table carry?

250 kg (551 lb) as standard and 400 kg (881 lb) with the option. The older SPEEDIO S500X1 offered 300 kg (661 lb) with its option, so the S500Xd1 takes noticeably heavier fixtures when specified that way.

02 How does the S500Xd1 differ from the Speedio S500Xd2?

The Speedio S500Xd2 has 450 mm (17.7 in) of Y on a 600 × 450 mm (23.4 × 17.7 in) table, a 12,000 rpm standard spindle and an optional 380 mm (15.0 in) Z. The S500Xd1 has 400 mm (15.7 in) of Y on a 600 x 400 mm table, a 10,000 rpm standard spindle and 300 mm (11.8 in) of Z.

03 Is there a five-axis version of the S500Xd1?

The Speedio U500Xd1 shares the 500 × 400 × 300 mm (19.7 × 15.7 × 11.8 in) travels and adds a tilting table with an A axis of 120 to -30° and a 360° C axis on a ø260 mm (ø10.2 in) table. The Speedio U500Xd1 table carries 100 kg (220 lb), and the machine weighs 2,650 kg (5,843 lb).

04 What tool-change times does the S500Xd1 achieve?

With the 14 or 21-tool magazine, 0.6 sec tool to tool and 1.2 sec chip to chip. With the 28-tool magazine, 0.7 sec and 1.3 sec. Tool selection uses Brother's random shortcut method.
