Arclight Dynamics Arc Pro 6000X 5x5

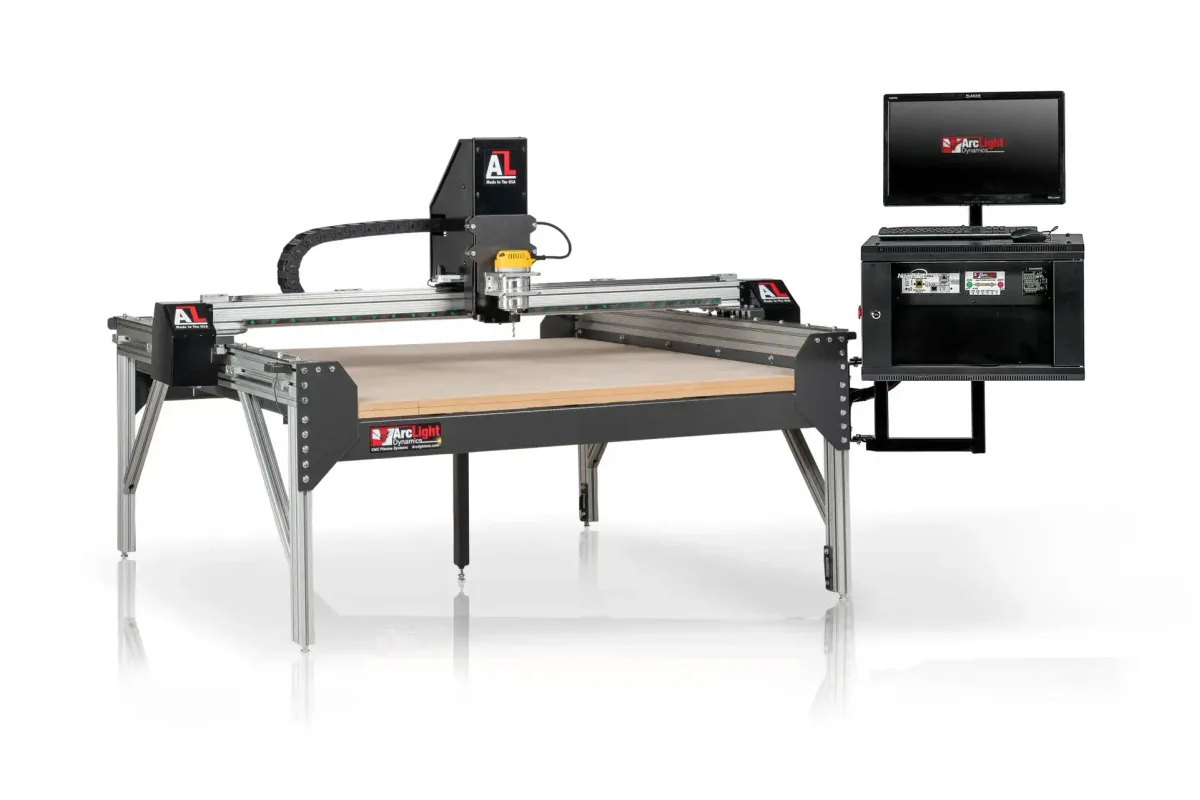

Image: arclightcnc.com, Arclight Dynamics
Key Specifications
Spindle Power
Accuracy
cutting area
cutting area high clearance gantry
machine dimensions
base dimensions
How much does the Arclight Dynamics Arc Pro 6000X 5x5 cost?
Price estimate
We do not have a price for the Arclight Dynamics Arc Pro 6000X 5x5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Arclight Dynamics Arc Pro 6000X 5x5 is a CNC router table with a 60 x 60 in cutting envelope and 5.5 in of Z on the standard gantry, or 8.5 in with the high clearance gantry. It is the one router in a range that otherwise consists of plasma tables, and it shares their dual-drive gantry layout and Hiwin 20 mm precision linear guide rails.
The cutting tool is a 2.25 hp variable speed router that accepts 1/4 in or 1/2 in collet bits; bits are sold separately. A 620 oz motor on each side moves the aluminum extrusion gantry and a single 620 oz motor drives the X axis. Three point bearing blocks hold the gantry tight to the side rails, so cutting forces cannot lift it. Positioning accuracy is listed as 0.001 in.
The frame is a hybrid of steel and aircraft grade aluminum, and the whole table weighs 825 lb. Its base measures 73.5 x 79.5 in and the overall dimensions are 87.5 x 80 x 58 in. A 1.5 in spoilboard is included, as is a dust collection shroud with a 3 in opening for the shop's own collector. Caster wheels that can be lowered let the table be rolled into place. It runs on 110 V at 15 to 20 A.
The standard software package is SheetCAM, InkScape, QCAD and CommandCNC, and Arclight describes the control software as industrial Linux. The controller can pause, fast forward, rewind and re-cut a part, which can save a panel when a bit breaks in the middle of a program. Wood, acrylic, plastic, foam, composites and phenolic are among the materials Arclight names. Buyers who need a full 4 x 8 sheet on the bed will not get it here, since the envelope is 60 in in each direction.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 60 x 60 x 5.5 in (1,524 x 1,524 x 140 mm), standard gantry |
| Cutting Area High Clearance Gantry | 60 x 60 x 8.5 in (1,524 x 1,524 x 216 mm) |
| Machine Dimensions | 87.5 x 80 x 58 in (2,223 x 2,032 x 1,473 mm) |
| Base Dimensions | 73.5 x 79.5 in (1,867 x 2,019 mm) |
| Machine Weight | 825 lb (374 kg) |
| Positioning Accuracy | 0.001 in (0.025 mm) |
| Frame | Hybrid Steel and Aircraft Grade Aluminum |
| Spoilboard | 1.5 in (38 mm) spoilboard included |
| Table Power | 110 V / 15-20 A |
| Spindle Motor Power | 2.25 hp (1.7 kW) variable speed router |
| Collet | 1/4 in or 1/2 in collet bits |
| Motors | 620 oz motor on each side of the gantry; single 620 oz motor on the X axis |
| Gantry | Dual-drive aluminum extrusion gantry |
| Linear Guides | Hiwin 20 mm precision linear guide rails |
| Dust Collection | Dust collection shroud with 3 in (76 mm) opening |
| CNC Control | CommandCNC, with SheetCAM, InkScape and QCAD (standard software package); industrial Linux software |
Specifications sourced from arclightcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 60 x 60 in envelope with 5.5 in of Z, or 8.5 in with the high clearance gantry
- Dual-drive gantry with a 620 oz motor on each side, on Hiwin 20 mm precision linear guide rails
- Comes with a 2.25 hp variable speed router, a dust collection shroud and a 1.5 in spoilboard
- Standard software package of SheetCAM, InkScape, QCAD and CommandCNC
- Runs on 110 V at 15 to 20 A and weighs 825 lb
Limitations
- The 60 in envelope each way means a 4 x 8 sheet has to be cut down first
- The 2.25 hp router takes 1/4 in or 1/2 in collet bits, and router bits are sold separately
- Ships 98% assembled, so a little assembly remains after delivery
Best For
Frequently Asked Questions
01
A 2.25 hp variable speed router that accepts 1/4 in or 1/2 in collet bits, a dust collection shroud with a 3 in opening, a 1.5 in spoilboard and the standard software package of SheetCAM, InkScape, QCAD and CommandCNC. Router bits are sold separately.
02
The cutting envelope is 60 x 60 x 5.5 in with the standard gantry and 60 x 60 x 8.5 in with the high clearance gantry. The included spoilboard is 1.5 in thick, so check which gantry suits the thickest stock you plan to cut.
03
Overall dimensions are 87.5 x 80 x 58 in and the base is 73.5 x 79.5 in. The table weighs 825 lb, and it has caster wheels that can be lowered for rolling it. Table power is 110 V at 15 to 20 A.
04
Arclight names wood, acrylic, plastic, foam, composites and phenolic. The router is a 2.25 hp variable speed unit taking 1/4 in or 1/2 in collet bits, which sets the practical limit on cutter size and on depth of cut per pass.
