Huron AX MSY 300
Image: huron.fr, Huron
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
Accuracy
Repeatability
How much does the Huron AX MSY 300 cost?
Price estimate
We do not have a price for the Huron AX MSY 300 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron AX MSY 300 is the largest and most complete AX turning centre. Its 36 kW main spindle is backed by a secondary spindle of 21.6 kW, and a 12-station live turret with ± 50 mm of Y works at both.
Unusually, the second spindle is strong enough for real cutting. It delivers 135 Nm at up to 5,000 rpm on an A2-6 nose with a 65 mm bore. On many lathes the pick-off spindle only supports finishing cuts, but 21.6 kW allows proper turning and drilling on the second side, so operations can be balanced between the two ends of the part.
The main spindle provides 385 Nm at up to 4,000 rpm through an A2-8 nose, with 75 mm of bore and 65 mm of bar capacity. Parts up to 420 mm (16.5 in) in diameter and 600 mm long fit the envelope, over a swing of 650 mm.
Tooling is BMT 55, driven at up to 4,000 rpm. Rapid feedrates are 24 m/min on X and Y and 30 m/min on Z. Huron positions the AX as a multitasking centre for production runs of engineering parts in the automotive and hydraulics industries. The table shows no tailstock for this version. Positioning is 0.005 mm on X and Z, and the footprint is 4,225 x 4,220 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 650 mm (25.6 in) |
| Max Turning Diameter | 420 mm (16.5 in) |
| Max Turning Length | 600 mm (23.6 in) |
| X Axis Travel | 250 mm (9.8 in) |
| Z Axis Travel | 625 mm (24.6 in) |
| Y Axis Travel | ± 50 mm (± 2.0 in) |
| Rapid Traverse Rate | X-Y: 24 m/min; Z: 30 m/min |
| Max Spindle Speed | 4,000 rpm |
| Spindle Motor Power | 36 kW (48.3 hp) |
| Spindle Torque | 385 Nm (284.0 lb-ft) |
| Spindle Bore | 75 mm (3.0 in) |
| Spindle Nose | A2-8 |
| Bar Capacity | 65 mm (2.6 in) |
| Sub Spindle Speed | 5,000 rpm |
| Sub Spindle Power | 21.6 kW (29.0 hp) |
| Sub Spindle Torque | 135 Nm (99.6 lb-ft) |
| Sub Spindle Bore | 65 mm (2.6 in) |
| Sub Spindle Nose | A2-6 |
| Turret Type | Live tools |
| Turret Stations | 12 |
| Turret Tooling | BMT 55 |
| Live Tool Speed | 4,000 rpm |
| Positioning Accuracy | 0.005 mm (0.0002 in) |
| Repeatability | 0.003 mm (0.0001 in) |
| Machine Width | 4,225 mm (166.3 in) |
| Machine Depth | 4,220 mm (166.1 in) |
| Machine Height | 2,210 mm (87.0 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 21.6 kW, 135 Nm secondary spindle for full machining on the second side
- 36 kW, 385 Nm main spindle
- Y axis of ± 50 mm on the live-tool turret
- 12-station BMT 55 live-tool turret
- 420 mm turning diameter with complete machining in one cycle
Limitations
- No tailstock is listed for the MSY version
- Secondary spindle bore is 65 mm, smaller than the 75 mm main bore
- Both spindles share a single turret
- Driven tools and main spindle are limited to 4,000 rpm
Best For
Frequently Asked Questions
01
It is rated 21.6 kW and 135 Nm with a top speed of 5,000 rpm. The nose is A2-6 and the bore 65 mm. The AX MSY 200, by comparison, has a 7.5 kW, 95 Nm secondary spindle.
02
36 kW, 385 Nm and 4,000 rpm on an A2-8 nose. Spindle bore is 75 mm and bar capacity 65 mm, with a swing over bed of 650 mm.
03
A 12-station live-tool turret with BMT 55 holders, driven tools at up to 4,000 rpm, and a Y axis of ± 50 mm. Huron describes the AX as able to carry out a number of turning and milling operations.
04
X travel is 250 mm, Z travel 625 mm and Y travel ± 50 mm. Rapid feedrates are 24 m/min on X and Y and 30 m/min on Z.
More from Huron
Other CNC Lathes / Turning Centers
Tsugami M10D
Johnford ST-80D
Hwacheon Hi-Eco 21
Hyundai WIA E160A

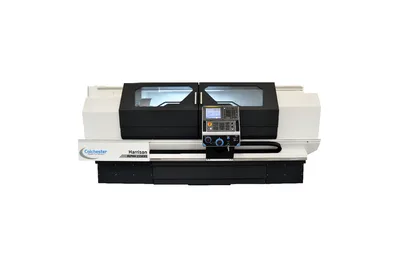

Harrison Alpha 1660XS
