WFL Millturn Technologies Mill-Turn / Multi-Tasking Machines

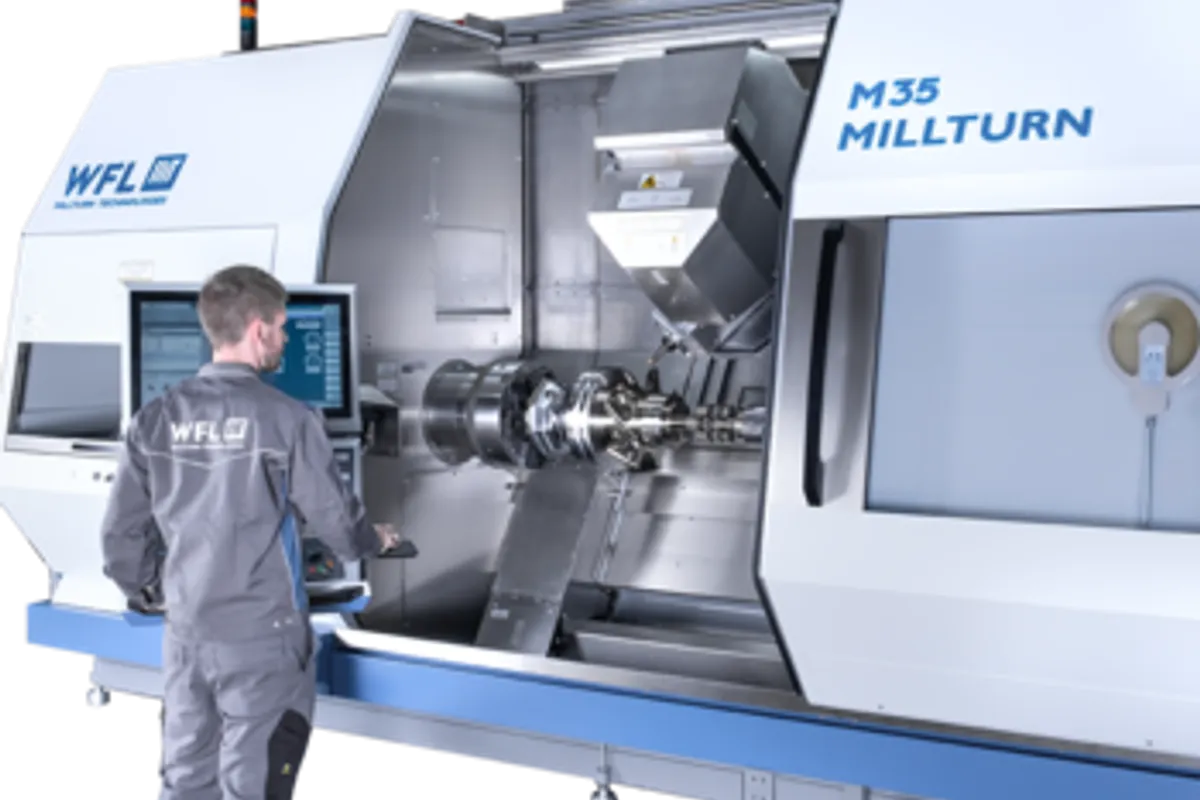

WFL M35 MILLTURN

Est. $900,000 – $1,400,000 Specs verified 2026-10-03 · ellisontechnologies.com Updated 2026-10-03

Key Specifications

X Travel

600 mm (23.6 in)

Y Travel

250 mm (9.8 in)

Max Spindle

3,300/4,000 rpm

Tool Capacity

40/80/120

Spindle Power

33/54 kW (44.2/72.4 hp)

Max Turn Length

2,000 mm (78.7 in)

How much does the WFL M35 MILLTURN cost?

Estimated price range

Est.$900,000 – $1,400,000

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from WFL Millturn Technologies. Configuration moves it a long way.

Overview

On the WFL M35 MILLTURN the milling spindle carries the same 33 kW (44.2 hp) rating as the smaller of the two turning drives. For a machine with a Ø520 mm (20.5 in) turning diameter and 2,000 mm (78.7 in) between centres, that is a strong hint about the intended work: parts where milling, drilling and boring take as much of the cycle as turning does.

That spindle sits on a B-axis with a swivel range of -110° to +110° and is offered in a 9,000 rpm and a 12,000 rpm version. Torque is 284 Nm (209.5 ft-lb) or 213 Nm (157.1 ft-lb) at 40% duty cycle, dropping to 233 Nm or 175 Nm at 100%, and power drops from 33 kW to 27 kW in step. For face milling and larger drills in steel the 284 Nm version is the one to ask for.

Linear travel is 600 mm (23.6 in) in X and 250 mm (9.8 in) in Y. Set against a 520 mm swing, 250 mm of Y reaches a little under half the diameter, so a wide flat or a far-off-centre bore on a large part means rotating the workpiece between cuts. Tool storage is 40, 80 or 120 stations.

For turning there is a 33 kW drive with 630 Nm (464.7 ft-lb) or a 54 kW (72.4 hp) drive with 1,600 Nm (1,180.1 ft-lb), both at 40% duty cycle, and listed top speeds of 3,300 and 4,000 rpm. The M35-G is entered in the centre-distance row at 1,800 or 1,680 mm. When a part outgrows the swing, the M50 is the step up: Ø670 mm (26.4 in) with 800 mm (31.5 in) of X and 400 mm (15.7 in) of Y.

Full Specifications

Parameter	Value
Nominal Center Distance	2,000 mm (M35-G: 1,800 / 1,680 mm)
Swing Diameter Over Top Slide	520 mm
Max Turning Diameter Between Centers	520 mm
Turning Spindle Power Max	33 (29) / 54 (37) kW at 40% (100%) duty cycle
Turning Spindle Torque Max	630 (550) / 1,600 (1,100) Nm at 40% (100%) duty cycle
Milling Spindle Power Max	33 (27) kW at 40% (100%) duty cycle
Milling Spindle Torque Max	284 (233) / 213 (175) Nm at 40% (100%) duty cycle
B Axis Swivel Angle	-110° ... +110°
Y-Axis Travel	250 mm (9.8 in)
X-Axis Travel	600 mm (23.6 in)
Tool Magazine	40 / 80 / 120 stations
B Axis Range	±110°
Tool Capacity	40/80/120
Max Turning Diameter	Ø520 mm (20.5 in)
Max Turning Length	2,000 mm (78.7 in)
Milling Spindle Speed	9,000/12,000 rpm
Milling Spindle Power	33 kW (44.2 hp)
Milling Spindle Torque	213/284 N·m (157.1/209.5 ft-lb)
Max Spindle Speed	3,300/4,000 rpm
Spindle Motor Power	33/54 kW (44.2/72.4 hp)
Spindle Torque	630/1,600 N·m (464.7/1,180.1 ft-lb)

Specifications sourced from ellisontechnologies.com (authorised dealer / distributor, not the manufacturer's own site) — verified 2026-10-03

Strengths & Limitations

Strengths

Milling spindle rated 33 kW (44.2 hp) at 40% duty cycle and 27 kW at 100%, equal in headline power to the smaller turning drive
Up to 284 Nm (209.5 ft-lb) of milling torque at 40% duty cycle, or a 12,000 rpm version for small tools
B-axis swivel range of -110° to +110°
Tool storage of 40, 80 or 120 stations
Turning drive choice of 630 Nm (464.7 ft-lb) or 1,600 Nm (1,180.1 ft-lb) at 40% duty cycle

Limitations

Y travel is 250 mm (9.8 in) against a 520 mm swing, so wide milled features on large parts need the workpiece rotated between cuts
Milling torque falls to 233 Nm or 175 Nm at 100% duty cycle, depending on the spindle version
The fastest milling spindle listed is 12,000 rpm
Turning diameter stops at Ø520 mm (20.5 in); the M50 takes Ø670 mm (26.4 in)

Best For

Milling-heavy complete machining of parts up to Ø520 mm (20.5 in) Face milling and drilling in steel on the 284 Nm spindle version Angled bores and surfaces inside the -110° to +110° B-axis range Long cycles with many tools, using the 120-station magazine Shafts up to 2,000 mm (78.7 in) between centres

Frequently Asked Questions

01 What milling spindle does the M35 MILLTURN have?

A B-axis milling spindle rated 33 kW (44.2 hp) at 40% duty cycle and 27 kW at 100%. It comes in a 9,000 rpm and a 12,000 rpm version. Torque is listed as 284 Nm and 213 Nm at 40% duty cycle, and 233 Nm and 175 Nm at 100%. The table does not tie each torque to a speed, but at equal power the higher torque goes with the lower speed.

02 How far does the B-axis swivel, and what are the X and Y travels?

The B-axis swivels from -110° to +110°. X travel is 600 mm (23.6 in) and Y travel is 250 mm (9.8 in). No Z travel is listed as such; the working length follows from the nominal centre distance of 2,000 mm (78.7 in).

03 What is the M35-G?

It appears in one row of the table, the nominal centre distance, where it is listed at 1,800 or 1,680 mm against 2,000 mm for the M35. The other rows give no separate M35-G values, so spindle, travel and magazine details for that variant should be confirmed before ordering.

04 How many tools can the M35 MILLTURN hold?

The tool magazine is listed with 40, 80 or 120 stations. The table gives no maximum tool length, diameter or weight, so check those limits against long boring bars and large cutters before settling on a magazine size.

05 When does it make sense to look at the M50 instead?

When the part is too big or the milling too far off centre. The M50 turns Ø670 mm (26.4 in) and has 800 mm (31.5 in) of X and 400 mm (15.7 in) of Y, against Ø520 mm (20.5 in), 600 mm (23.6 in) and 250 mm (9.8 in) on the M35. Turning torque on the M50 is listed at 2,000 or 3,600 Nm, above the 1,600 Nm maximum of the M35.
