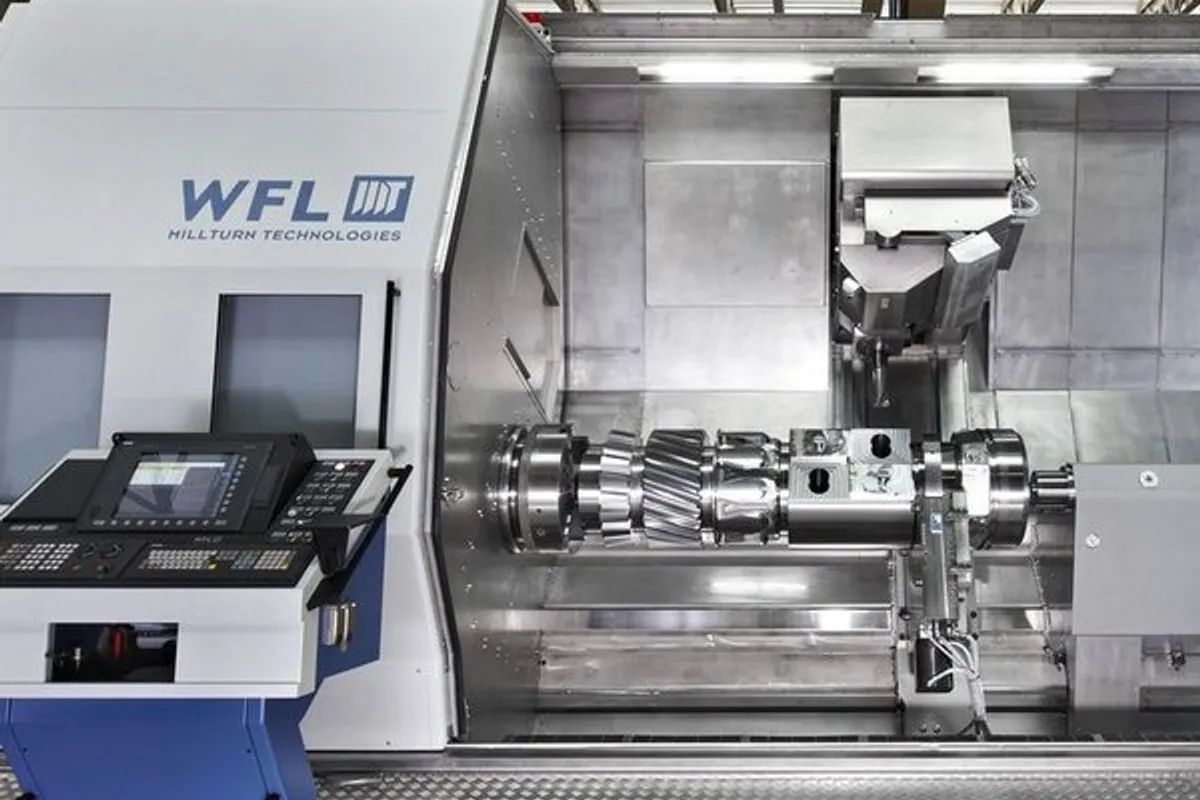

WFL M120 MILLTURN
Key Specifications
X Travel
Y Travel
Max Spindle
Tool Capacity
Spindle Power
Max Turn Length
How much does the WFL M120 MILLTURN cost?
Estimated price range
Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from WFL Millturn Technologies. Configuration moves it a long way.
Overview
The WFL M120 MILLTURN swings 1,140 mm (44.9 in) over the cross slide and turns that same Ø1,140 mm, in lengths up to 12,000 mm (472.4 in). Both of its spindles come in a standard and a high-torque version, and the choice between them defines the machine.
On the turning side the standard version runs to 1,600 rpm and the high-torque version to 1,000 rpm. Torque is listed at 10,160 and 14,000 Nm (7,493.6 and 10,325.9 ft-lb) and power at 103 and 113 kW (138.1 and 151.5 hp), with a continuous rating of 100 kW (134 hp). The lower top speed of the high-torque version is a small cost on a part more than a metre across, where surface speed is reached at low revolutions anyway. It costs more on long shafts with slim journals.
The milling spindle follows the same pattern: 6,000 rpm standard, 3,200 rpm high-torque, with a maximum of 730 Nm (538 ft-lbf). Power is listed as 30, 45 or 55 kW (40.2, 60.3 or 73.8 hp). The table's speed row also names 5,000 and 8,000 rpm and a 500 Nm figure, so there are more spindle variants than the two labelled ones. Coolant through the spindle is rated at 150 bar (2,175 psi), a level suited to flushing chips out of deep drilled and bored holes.
X travel is 1,110 or 1,120 mm (43.7 or 44.1 in), Y is 650 mm (25.6 in) and the B-axis swivels from -110° to +90°. Magazines hold 36, 72 or 108 tools. The M100 below it and the M150 above carry the same turning figures on Ø900 mm (35.4 in) and Ø1,480 mm (58.3 in).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Cross Slide | 1,140 mm (44.9 in) |
| Turning Spindle Power 100pct | 100 kW (134 hp) |
| Turning Spindle Speed Max | 1,600 RPM (standard) / 1,000 RPM (high-torque) |
| Milling Spindle Power | 30/45/55 kW (40.2/60.3/73.8 hp) |
| Milling Spindle Torque Max | 730 Nm (538 ft-lbf) |
| Milling Spindle Speed Max | 6,000 RPM (standard) / 3,200 RPM (high-torque) |
| B Axis Swivel | -110° to +90° |
| Coolant Through Spindle | 150 bar (2,175 psi) |
| Travel Distance B Axis | -110°/+90° |
| Max Turning Diameter | Ø1,140 mm (44.9 in) |
| Max Turning Length | Up to 12,000 mm (472.4 in) |
| Size | Varies by Configuration |
| Speed | 1000/1600 rpm |
| Power | 103/113 kW (138.1/151.5 Hp) |
| Torque | 10160/14000 Nm (7493.6/10325.9 ft-lbs) |
| X-Axis Travel | 1,110/1,120 mm (43.7/44.1 in) |
| Y-Axis Travel | 650 mm (25.6 in) |
| B Axis Range | -110°/+90° |
| Tool Capacity | 36/72/108 |
| Milling Spindle Speed | 3,200/5,000/8,000/6,000 rpm |
| Milling Spindle Torque | 500/730 N·m (368.8/538.4 ft-lb) |
| Max Spindle Speed | 1,000/1,600 rpm |
| Spindle Motor Power | 103/113 kW (138.1/151.5 hp) |
| Spindle Torque | 10,160/14,000 N·m (7,493.6/10,325.9 ft-lb) |
Specifications sourced from ellisontechnologies.com (authorised dealer / distributor, not the manufacturer's own site) — verified 2026-10-03
Strengths & Limitations
Strengths
- Turning spindle offered as a 1,600 rpm standard or a 1,000 rpm high-torque version, with torque listed at 10,160 and 14,000 Nm
- Continuous turning power of 100 kW (134 hp)
- High-torque milling spindle with up to 730 Nm (538 ft-lbf) at 3,200 rpm top speed, or a 6,000 rpm standard version
- Coolant through the spindle at 150 bar (2,175 psi)
- 1,140 mm (44.9 in) swing over the cross slide with turning lengths up to 12,000 mm (472.4 in)
Limitations
- The high-torque turning version is limited to 1,000 rpm and the high-torque milling version to 3,200 rpm
- Y travel is 650 mm (25.6 in) on a 1,140 mm swing; the M150 has 800 mm (31.5 in)
- B-axis swivel is -110° to +90°, so reach differs between the two directions
- Magazine capacity stops at 108 tools
Best For
Frequently Asked Questions
01
Top speed, on both spindles. The turning spindle reaches 1,600 rpm as standard and 1,000 rpm in the high-torque version. The milling spindle reaches 6,000 rpm as standard and 3,200 rpm in the high-torque version, with a maximum of 730 Nm (538 ft-lbf). Turning torque is listed at 10,160 and 14,000 Nm; the higher figure can be expected on the slower version.
02
The continuous rating is 100 kW (134 hp). The table also lists 103 and 113 kW (138.1 and 151.5 hp) without a duty cycle, alongside torque of 10,160 and 14,000 Nm (7,493.6 and 10,325.9 ft-lb). Use the 100 kW figure for sustained roughing.
03
Coolant through the spindle is listed at 150 bar (2,175 psi). That pressure is aimed at deep drilling and boring, where chips have to be flushed out of long holes. The table does not give a flow rate or tank size, so ask for both if the work is mostly deep-hole.
04
Swing over the cross slide and maximum turning diameter are both 1,140 mm (44.9 in), with turning lengths up to 12,000 mm (472.4 in). X travel is listed as 1,110 or 1,120 mm (43.7 or 44.1 in), Y travel as 650 mm (25.6 in), and the B-axis swivels from -110° to +90°.
05
Power is given as 30, 45 or 55 kW (40.2, 60.3 or 73.8 hp) and torque as 500 or 730 Nm. One row names 6,000 rpm as standard and 3,200 rpm as high-torque; another also lists 5,000 and 8,000 rpm. The table does not match each power to a speed, so get the data sheet of the exact spindle quoted.
