Victor Taichung Mill-Turn / Multi-Tasking Machines

Victor Taichung VMT-X400

Q: How much does the Victor Taichung VMT-X400 cost?

The price estimate for the Victor Taichung VMT-X400 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/victor-taichung-vmt-x400#price; the request is passed to Victor Taichung or an authorised dealer.

Specs verified 2026-10-05 · machine-tools.victortaichung.com Updated 2026-10-05

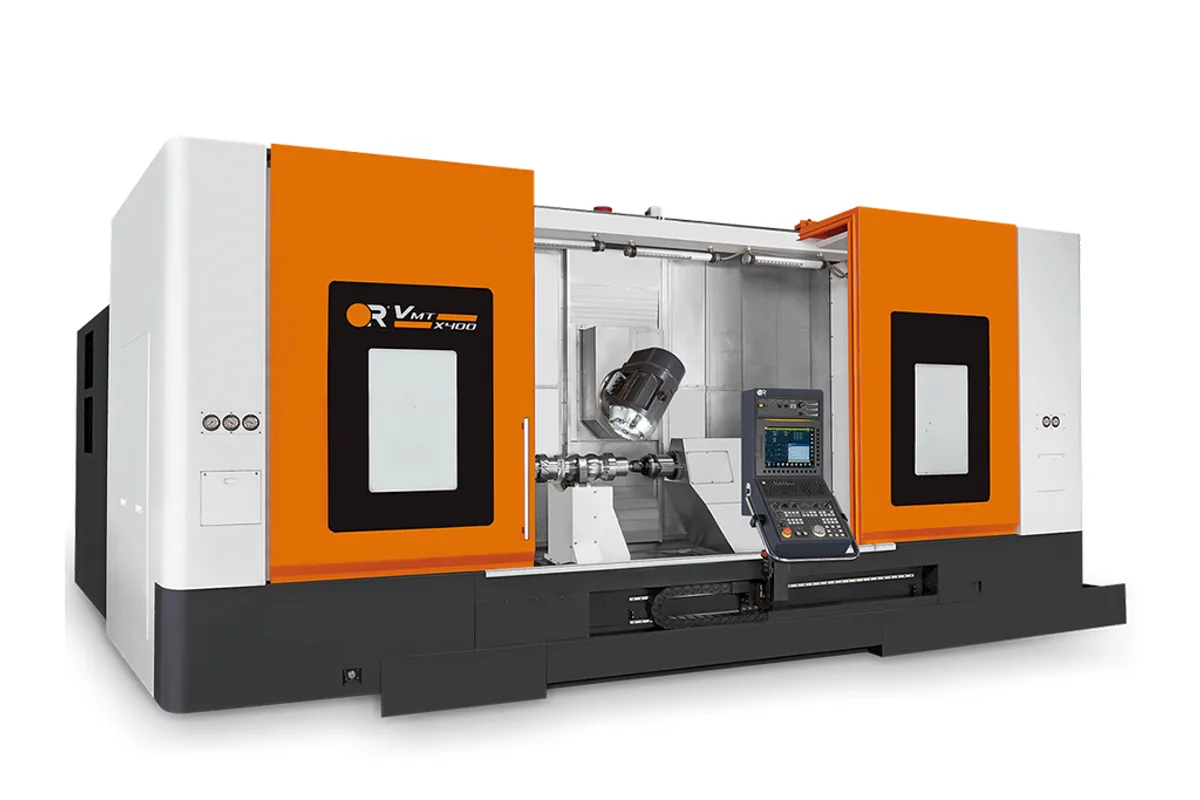

Victor Taichung VMT-X400 multi-tasking turning center

Image: machine-tools.victortaichung.com, Victor Taichung

Key Specifications

Max Spindle

2,500 rpm

Tool Capacity

Max Turn Length

2,100 mm (82.67 in)

swing over bed

Ø1,120 mm (Ø44.09 in)

max turning diameter

Ø720 mm (Ø28.34 in)

spindle nose

A2-11 (15")

How much does the Victor Taichung VMT-X400 cost?

Price estimate

Uncertain

We do not have a price for the Victor Taichung VMT-X400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Victor Taichung VMT-X400 is the heaviest-chucking model of the VMT-X turn-mill range: a 15 in chuck on an A2-11 spindle nose, 2,500 rpm, and a turning envelope of Ø720 mm (Ø28.34 in) by 2,100 mm (82.67 in). It shares its bed with the VMT-X360 and differs from it in the chuck and the top speed.

A 15 in chuck grips the large-diameter end of the range properly. Flanged shafts, valve bodies and rolls near the Ø720 mm (Ø28.34 in) limit sit better in it than in the 12 in chuck of the VMT-X360, and 2,500 rpm is ample at those diameters. Bar capacity stays at Ø91 mm (Ø3.58 in), so nothing is gained for bar work. The maker gives 30 kW of turning power.

Ordered as a Double SP, the machine gets a second spindle with the same 15 in chuck, A2-11 nose, 2,500 rpm and Ø91 mm (Ø3.58 in) bore. Two full-size chucks on a 2,100 mm (82.67 in) bed allow a heavy part to be turned end for end without a crane lift between operations. The Single SP column lists an M.T. #5 tailstock quill instead.

The milling side is an HSK-T63 spindle at 12,000 rpm, rated 15 / 18.5 / 22 kW (20 / 25 / 30 HP), with 60 tools. Weight is listed at 23,600 kg (52,029.03 lb).

Full Specifications

Parameter	Value
Swing Over Bed	Ø1,120 mm (Ø44.09 in)
Max Turning Diameter	Ø720 mm (Ø28.34 in)
Max Turning Length	2,100 mm (82.67 in)
Max Spindle Speed	2,500 rpm
Spindle Nose	A2-11 (15")
Bar Capacity	Ø91 mm (Ø3.58 in)
Sub Spindle Speed	Double SP: 2,500 rpm (Single SP: not listed)
Sub Spindle Nose	Double SP: A2-11 (15") (Single SP: not listed)
Sub Spindle Bar Capacity	Double SP: Ø91 mm (Ø3.58 in) (Single SP: not listed)
Milling Spindle Speed	12,000 rpm
Milling Spindle Power	15 / 18.5 / 22 kW (20 / 25 / 30 HP)
Tool Shank	HSK-T63
Tool Capacity	60
Tailstock Quill Taper	Single SP: M.T. #5 (Double SP: not listed)
Machine Weight	23,600 kg (52,029.03 lb)

Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05

Strengths & Limitations

Strengths

15 in chuck on an A2-11 nose for work up to Ø720 mm (Ø28.34 in)
Double SP adds a second 15 in chuck spindle at 2,500 rpm with Ø91 mm (Ø3.58 in) through it
2,100 mm (82.67 in) turning length under a Ø1,120 mm (Ø44.09 in) swing over the bed
60 HSK-T63 tools for the 12,000 rpm milling spindle

Limitations

2,500 rpm is the lowest main spindle speed in the VMT-X range
Bar capacity is Ø91 mm (Ø3.58 in), no more than the VMT-X360
Milling spindle power, 15 / 18.5 / 22 kW (20 / 25 / 30 HP), is modest beside the 30 kW given for turning
The machine weighs 23,600 kg (52,029.03 lb)

Best For

Heavy chuck work near Ø720 mm (Ø28.34 in) with milling in the same set-up Large parts machined on both ends between two 15 in chucks Long shafts on the M.T. #5 tailstock of the Single SP Parts with many milled and drilled features, up to 60 tools

Frequently Asked Questions

01 What chuck size does the VMT-X400 take?

A 15 in chuck on an A2-11 spindle nose, with a maximum speed of 2,500 rpm. The Double SP column lists the same nose, chuck size and speed for the sub-spindle.

02 Should I pick the VMT-X400 or the VMT-X360?

Both turn Ø720 mm (Ø28.34 in) by 2,100 mm (82.67 in) and pass Ø91 mm (Ø3.58 in) bar. The VMT-X400 has a 15 in chuck at 2,500 rpm; the VMT-X360 has a 12 in chuck at 3,000 rpm. Larger, heavier chuck work points to the 15 in chuck, bar and slender shaft work to the faster spindle.

03 What is the weight of the VMT-X400?

23,600 kg (52,029.03 lb) in both the Single SP and Double SP columns. Plan the foundation, the access route and the lifting equipment around that figure before the machine ships.

04 Which options does Victor Taichung list for the VMT-X400?

The option list for the VMT-X series includes a sub-spindle, a steady rest, coolant through the spindle, a bar feeder interface and a Siemens control with a 19 in screen. A Fanuc control with a 15 in screen is the standard.
