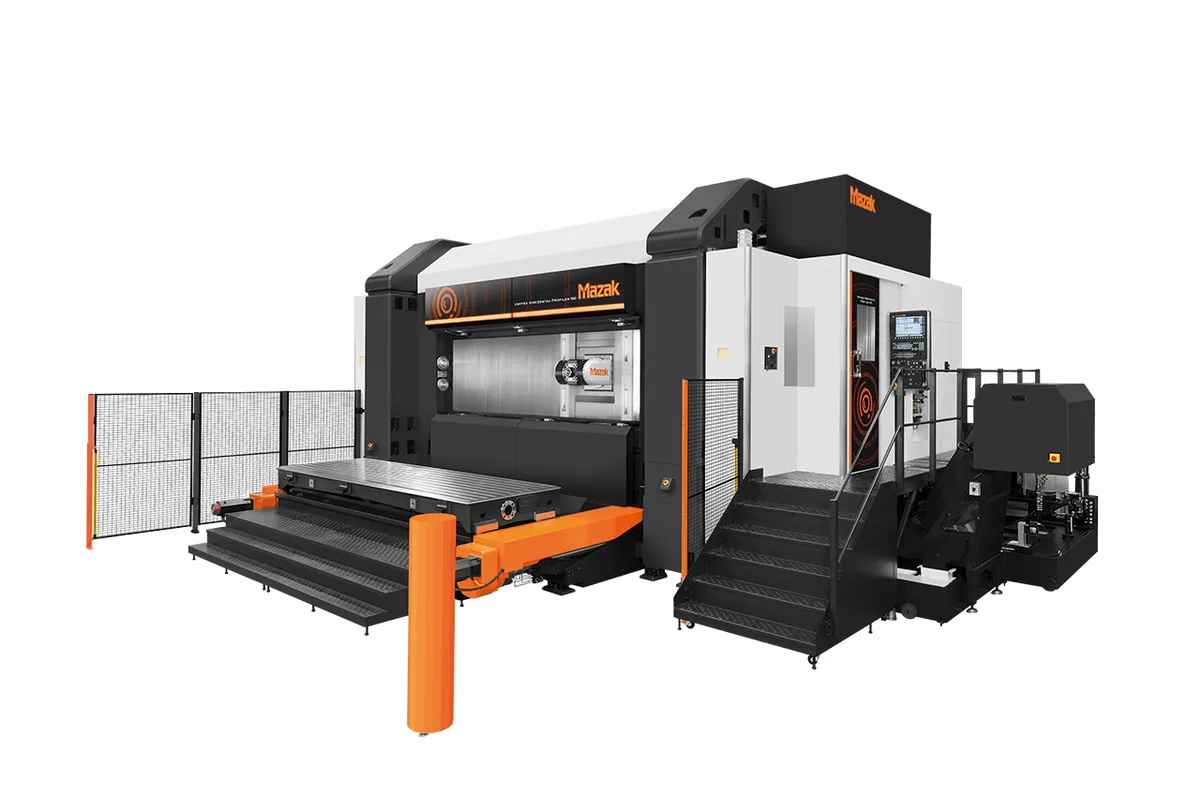

Mazak VORTEX HORIZONTAL PROFILER 160
Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Mazak VORTEX HORIZONTAL PROFILER 160 cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak VORTEX HORIZONTAL PROFILER 160 is a 5-axis horizontal profiler with a 157.48 in (4,000 mm) × 49.21 in (1,250 mm) table, 165 in (4,191 mm) of X travel and a 26,000 rpm HSK-A63 spindle. Of the two models in its series it has the narrower table and the smaller spindle; the travels and the table load match the 160 XP.
Its spindle is rated 45 kW (60 HP) and 13.2 ft-lb (18 Nm) continuous, rising to 55 kW (74 HP) and 17.6 ft-lb (24 Nm) on the 30 min. rating. Those are high-speed figures, with plenty of power near the top of the range and very little torque, which suits small and medium cutters in light alloys and rules out heavy cuts in steel. The tool limits say the same thing: Ø3 in (76 mm) maximum diameter, 8 in (203 mm) maximum length and 11 lb (5 kg), across a 30-tool magazine. The VORTEX HORIZONTAL PROFILER 160 XP, by comparison, has a 30,000 rpm spindle with 120 kW (161 HP) and 31 ft-lb (42 Nm) continuous and holds 60 tools.
Mazak describes the series table as horizontal for loading and tilted 90 degrees for machining, so a plate stands upright in front of the spindle. The rotary axes are A at ±110° and C at ±200°. Z travel is 22 in (559 mm) and the spindle nose sits between 2 in (51 mm) and 24 in (610 mm) from the table, so this is a machine for plate and shallow structural parts within the 6,614 lb (3,000 kg) table load, not for deep blocks.
Rapids are 1,378 ipm (35 m/min) on X and 1,181 ipm (30 m/min) on Y and Z. The machine weighs 152,200 lb (69,037 kg), stands 181 in (4,597 mm) high and occupies 406 in (10,312 mm) × 369 in (9,373 mm), a footprint Mazak quotes with MAZAK FX. For the series, Mazak lists 1.5 MPa (218 PSI) through-spindle coolant as standard, with 3.5 MPa (508 PSI) and 7.0 MPa (1015 PSI) systems optional.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 157.48 in (4,000 mm) × 49.21 in (1,250 mm) |
| Max Table Load | 6,614 lb (3,000 kg) |
| Spindle Taper | HSK-A63 |
| Max Spindle Speed | 26,000 rpm |
| Spindle Max Torque 30 Min Rating | 17.6 ft-lb (24 Nm) (30 min. rating) |
| Spindle Torque | 13.2 ft-lb (18 Nm) continuous |
| Spindle Power Intermittent | 55 kW (74 HP) (30 min. rating) |
| Spindle Motor Power | 45 kW (60 HP) continuous |
| Tool Capacity | 30 tools |
| Max Tool Diameter (full magazine) | Ø3 in (76 mm) |
| Max Tool Length | 8 in (203 mm) |
| Max Tool Weight | 11 lb (5 kg) |
| X-Axis Travel | 165 in (4,191 mm) |
| Y-Axis Travel | 59 in (1,499 mm) |
| Z-Axis Travel | 22 in (559 mm) |
| A Axis Range | ±110° |
| C Axis Range | ±200° |
| Spindle Nose to Table | 2 in (51 mm) to 24 in (610 mm) |
| Rapid Traverse X | 1,378 ipm (35 m/min) |
| Rapid Traverse Y | 1,181 ipm (30 m/min) |
| Rapid Traverse Z | 1,181 ipm (30 m/min) |
| Floor Space Required | 406 in (10,312 mm) × 369 in (9,373 mm) (W × L, MAZAK FX) |
| Machine Height | 181 in (4,597 mm) |
| Machine Weight | 152,200 lb (69,037 kg) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 26,000 rpm HSK-A63 spindle with 45 kW (60 HP) continuous and 55 kW (74 HP) on the 30 min. rating
- 165 in (4,191 mm) of X travel over a table 157.48 in (4,000 mm) long
- Series table lies flat for loading and tilts 90 degrees for machining
- Same travels and 6,614 lb (3,000 kg) table load as the VORTEX HORIZONTAL PROFILER 160 XP
- 1.5 MPa (218 PSI) through-spindle coolant is listed as standard for the series
Limitations
- Continuous torque is 13.2 ft-lb (18 Nm), so heavy cuts in steel are out of reach
- Tools are limited to Ø3 in (76 mm) in diameter, 8 in (203 mm) in length and 11 lb (5 kg)
- 30 tools, half the 60 of the VORTEX HORIZONTAL PROFILER 160 XP
- Table is 49.21 in (1,250 mm) wide, against 62.99 in (1,600 mm) on the VORTEX HORIZONTAL PROFILER 160 XP
- The series high-torque spindle option is offered for the 160 XP only
Best For
Frequently Asked Questions
01
The VORTEX HORIZONTAL PROFILER 160 XP has a wider table, 62.99 in (1,600 mm) against 49.21 in (1,250 mm), a 30,000 rpm spindle rated 120 kW (161 HP) and 31 ft-lb (42 Nm) continuous, and 60 tools. The 160 has a 26,000 rpm spindle rated 45 kW (60 HP) and 13.2 ft-lb (18 Nm) continuous, and 30 tools. Travels, rapids and the 6,614 lb (3,000 kg) table load are the same.
02
The HSK-A63 spindle runs to 26,000 rpm. Continuous ratings are 45 kW (60 HP) and 13.2 ft-lb (18 Nm). On the 30 min. rating the figures are 55 kW (74 HP) and 17.6 ft-lb (24 Nm). The low torque means the power is only available at high spindle speed.
03
The magazine holds 30 tools. Maximum tool diameter is Ø3 in (76 mm), maximum length is 8 in (203 mm) and maximum weight is 11 lb (5 kg). Those limits fit the high-speed spindle: compact, balanced tooling, not large face mills.
04
X is 165 in (4,191 mm), Y is 59 in (1,499 mm) and Z is 22 in (559 mm). The A-axis range is ±110° and the C-axis range is ±200°. The distance from spindle nose to table runs from 2 in (51 mm) to 24 in (610 mm).
05
The footprint is 406 in (10,312 mm) × 369 in (9,373 mm), width by length, which Mazak quotes with MAZAK FX. Machine height is 181 in (4,597 mm) and machine weight is 152,200 lb (69,037 kg), so the foundation has to be planned with the installer.
Videos
MazakEurope
Mazak North America
Mazak North America
Yamazaki Mazak Corporation
More from Yamazaki Mazak
Other 5-Axis Machining Centers
Northwood Iron Horse Compact 5

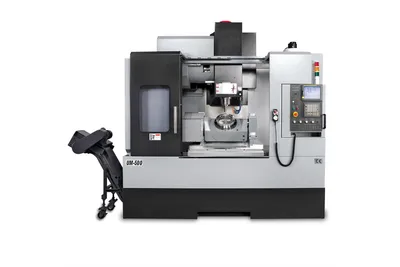

Accuway UM-500
DMG Mori DMC 80 u FD duoBLOCK
Onsrud 501EX

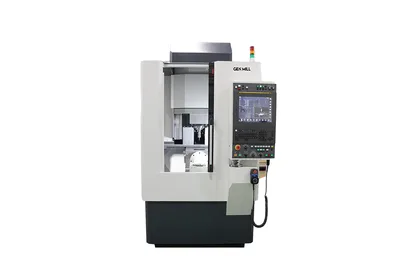

Ganesh GEN MILL PM320-5X
