Hurco TMX8MYi
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview

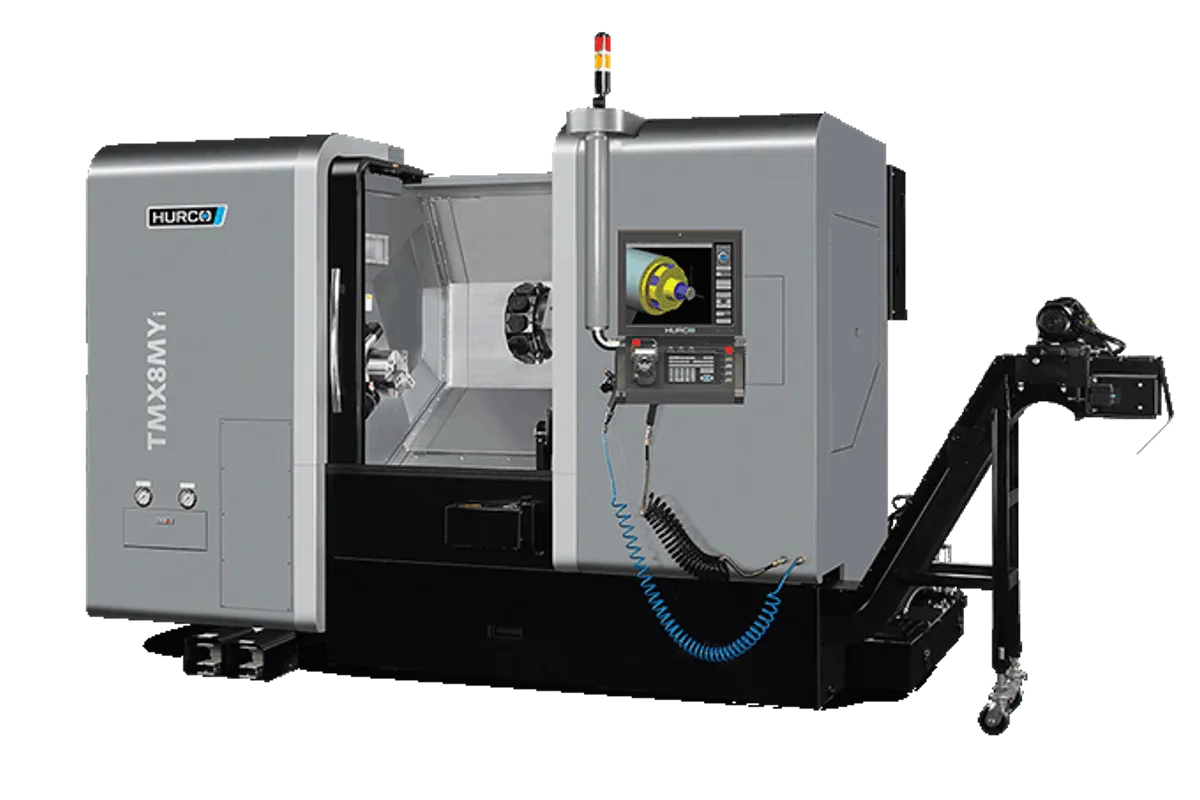

The Hurco TMX8MYi is the flagship 8-inch chuck mill-turn machine in Hurco's current lineup, combining a powerful spindle, Y-axis, C-axis, and BMT65 live tooling in a package designed for job shops that want to complete complex parts in a single setup. It represents the best of what Hurco offers in the mill-turn space — production-grade turning performance with genuine milling capability and the WinMax conversational control that makes it all accessible.
The main spindle delivers 27.8 kW (37.3 hp) with 239 Nm (176.3 ft-lbs) of torque at 1,000 RPM, topping out at 4,500 RPM. That's serious power for an 8-inch chuck machine, and it means you can take aggressive cuts in steel and stainless without worrying about stalling. The BMT65 turret carries 12 stations of live tooling spinning at up to 5,000 RPM with 6.4 kW (8.5 hp) at 2,190 RPM.
The Y-axis adds 55 mm (+/- 27.5 mm) of off-center travel, which is the feature that separates true mill-turn from simple live tooling. With the Y-axis, you can mill pockets with flat bottoms and straight walls, cut hex features, machine keyways, and perform off-center drilling — operations that are impossible on C-axis-only machines. Maximum turning diameter is 336 mm (13.2 in) with a turning length of 530 mm (20.9 in).
Travels are 286 mm (11.3 in) in X, 560 mm (22 in) in Z, 55 mm in Y, and 640 mm (25.2 in) in W (tailstock). The machine weighs 4,125 kg (9,095 lb), providing solid rigidity for both turning and milling operations. A spindle chiller maintains thermal stability during extended production runs, and absolute encoders on all axes eliminate the need for homing on startup.
The WinMax control is where the TMX8MYi really shines. Programming mill-turn parts on most other platforms requires CAM software and significant programming expertise. WinMax lets operators define both turning and milling operations conversationally, blend G-code where needed, and get parts running faster. The TMX8MYi competes with the Haas ST-20Y, Doosan Lynx 2100Y, Mazak QT-200MY, and DN Solutions Lynx 2100SY.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 8 in (203 mm) |
| Bar Capacity | 51 mm (2.0 in) |
| Max Turning Diameter | 10.9 in (336 mm) |
| Max Turning Length | 20.7 in (527 mm) |
| Swing Over Bed | 560 mm (22 in) |
| X-Axis Travel | 286 mm (11.3 in) |
| Z-Axis Travel | 560 mm (22 in) |
| Y-Axis Travel | 55 mm (2.17 in) / +/-27.5 mm |
| Travel W | 640 mm (25.2 in) |
| Max Spindle Speed | 4,500 RPM |
| Spindle Motor Power | 33.5 hp (25 kW) |
| Spindle Torque | 239 Nm (176.3 ft-lbf) @ 1,000 RPM |
| Live Tool Speed | 5,000 RPM |
| Live Tool Power | 6.4 kW (8.5 hp) @ 2,190 RPM |
| Turret Stations | 12 (BMT65) |
| Axes | X, Z, Y, W, C |
| Rapid Traverse Rate | 24 m/min (945 ipm) |
| Tailstock | Hydraulic, programmable |
| CNC Control | Hurco WinMax |
| Machine Weight | 4,125 kg (9,095 lb) |
| Travels Capacitydistance Between Centers | 29.7 in (754 mm) |
| Swing Over Bed Diameter | 20.0 in (508 mm) |
| Swing Over Cross Slide Diameter | 20.0 in (508 mm) |
| Draw Tube Diameter | 2.53 in (64.5 mm) |
| X Z Y W Axis Travel | 11.24 x 22 x 4.3 x 25.2 in (286 x 560 x 110 x 640 mm) |
| Spindlemax Spindle Speed | 4500 rpm |
| Max Torque High Gear | 176.1 ft. lbs @ 1000 rpm (238.7 Nm @ 1000 rpm) |
| Spindle Taper | A2-6 |
| Chuck Diameter | 8.27 in (210 mm) |
| Turrettool Type | BMT65 / DIN 1809 (VDI 40 - DIN 1089) |
| Tool Capacity | 12 Stations |
| Tool Shank | 1 x 1 in (25 x 25 mm) |
| Max Boring Bar Diameter | 1.5 in (40 mm) |
| Turret Index Time Adjacent | 1.3 seconds |
| Turret Index Time Furthest | 1.7 seconds |
| Live Spindlelive Tooling Max Spindle Speed | 5000 rpm |
| Live Spindle Max Torque | 20.4 ft. lbs (27.6 Nm) |
| Live Tooling Spindle Power | 8.5 hp @ 2190 rpm (6.4 kw @ 2190 rpm) |
| Feedratesrapid Traverse X Z Y W Axis | 1,181, 1,181, 472 in/min (30, 12, 30 m/min) |
| Sizemax Operating Floor Space | 211.34 x 137.56 in (5,368 x 3,494 mm) |
| Machine Height | 105.24 in (2,552 mm) |
| Machine Weight | 16,500 lbs (7,500 kg) |
Specifications sourced from hurco.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Y-axis enables true mill-turn operations including off-center pockets, hex features, and keyways that C-axis-only machines cannot produce
- 37.3 hp spindle with 239 Nm torque handles production-grade turning in steel and stainless without compromise
- BMT65 turret provides superior rigidity over VDI tooling for live milling operations
- WinMax conversational control makes mill-turn programming accessible to operators without CAM expertise
- 5,000 RPM live tools with 8.5 hp deliver real milling capability, not just light cross-drilling
- Spindle chiller and absolute encoders provide thermal stability and instant-on readiness for production environments
Limitations
- 55 mm Y-axis travel is limited compared to 100+ mm on larger mill-turn platforms — deep pockets may not be reachable
- 4,500 RPM main spindle speed is adequate but not fast for small-diameter aluminum high-speed turning
- 51 mm bar capacity limits bar feeding to smaller stock — some shops need 65 mm or more
- 12-station turret can fill up quickly when running complex mill-turn programs with many turning and milling tools
- Hurco dealer network is smaller than Haas, Mazak, and Doosan for service coverage in some areas
Best For
Frequently Asked Questions
01
A new Hurco TMX8MYi typically sells between $130,000 and $175,000 depending on options. Key options affecting price include tailstock, chip conveyor, through-spindle coolant, and tooling packages. Used TMX8MYi machines trade between $70,000 and $110,000.
02
The TMX8MYSi adds a sub-spindle for complete done-in-one machining. The sub-spindle grabs the part from the main spindle, and the machine completes operations on the back side of the part. The TMX8MYi uses a tailstock instead of a sub-spindle. The sub-spindle version costs approximately $30,000-$50,000 more.
03
Both are 8-inch chuck Y-axis mill-turn machines at similar price points. The Hurco delivers more spindle power (37.3 hp vs 20 hp on the Haas) and WinMax conversational programming. The Haas wins on purchase price, dealer network, and parts availability. For shops that value at-the-machine programming and spindle power, the Hurco is the better choice.
04
BMT (Base Mount Tooling) is a turret standard that mounts tools to a flat face rather than a VDI wedge lock. BMT65 provides better rigidity, repeatability, and tool-change accuracy than VDI, especially for live milling operations. The stiffer tool mounting produces better surface finishes and longer tool life during milling.
05
For parts within its turning envelope (336 mm diameter, 530 mm length) with milling features within 55 mm Y-travel, yes. This covers the majority of job shop work. Parts requiring heavy 3D milling, complex contoured surfaces, or large milling envelopes still benefit from a dedicated VMC.
