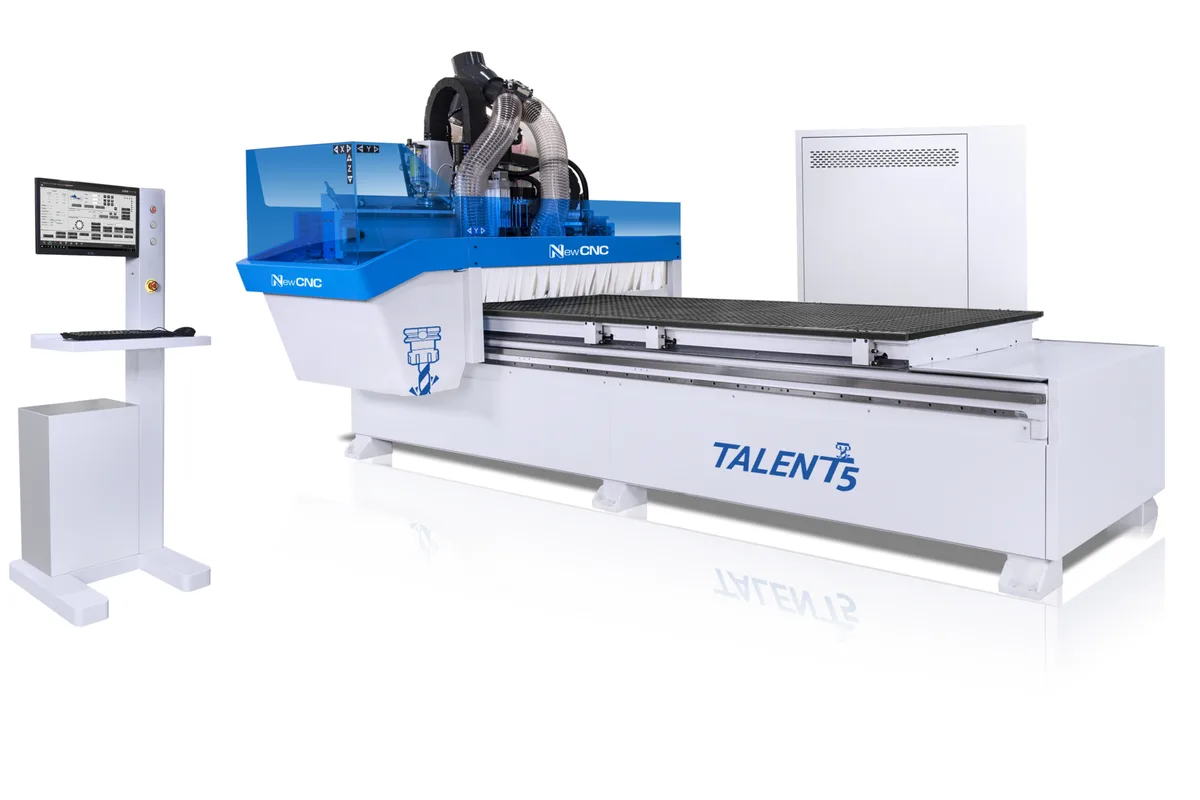

NEW CNC Talent T5D
Image: newcnc.com, NEW CNC
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
available sizes
spindle speed range
How much does the NEW CNC Talent T5D cost?
Price estimate
We do not have a price for the NEW CNC Talent T5D that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The NEW CNC Talent T5D is a nesting router for cabinet and panel shops, offered in six table sizes from 4 x 9 ft to 7 x 13 ft. The D in the name stands for the drill: next to the 16 hp (11.9 kW) HSK 63 routing spindle sits a boring block with 10 independent vertical spindles, so shelf-pin rows and hardware holes are drilled without a tool change.
That combination is what sets the cycle time on cabinet parts. A typical nest needs one or two profile cutters and a great many 32mm system holes. On a router without a drill block each of those holes is plunged with the main spindle; here the block handles them, and NEW CNC states that it runs together with the routing operations. The routing spindle is programmable up to 21,000 rpm and is fed by a 12-position ride-along tool changer carousel, with 8 HSK 63 tool holders included.
Axis speed is high for the class. X and Y move at 3,673 ipm (93.3 m/min) on helical rack and pinion driven by 1.5 kW servo motors, and Z runs on a ball screw. Hold-down comes from dual 10 HP Becker vacuum pumps through a multi-zone table that the control switches zone by zone, so small sheets do not need valves closed by hand.
Material handling is built into the base machine as far as unloading goes. The Clean Sweep arm pushes the finished nest off the table and clears dust from the spoilboard, pins align the next panel automatically, and a sensor measures material thickness. An automatic loading table, an unload conveyor and label printing before or after cutting are options.
The page gives no travels in inches or millimetres, no Z stroke and no machine weight for the T5D, so those have to come from the quotation for the chosen size.
Full Specifications
| Parameter | Value |
|---|---|
| Available Sizes | 4 x 9 ft, 5 x 10 ft, 5 x 12 ft, 6 x 12 ft, 7 x 10 ft, 7 x 13 ft |
| Spindle Motor Power | 16 hp (11.9 kW) |
| Spindle Taper | HSK 63 |
| Max Spindle Speed | Programmable up to 21,000 rpm |
| Spindle Speed Range | 5,000 - 21,000 rpm |
| Tool Capacity | 12 Position Ride Along Automatic Tool Changer Carousel |
| Tool Holders Included | 8 (HSK 63) |
| Boring Block | 10 Independent Spindle Boring Block |
| Rapid Traverse Xy | 3,673 ipm (93.3 m/min) |
| Xy Drive | Helical Rack & Pinion |
| Z Drive | Ball Screw |
| Servo Motors | 1.5 kW |
| Vacuum Pumps | Dual 10 HP Becker Vacuum Pumps |
| Vacuum Table | Multi Zone Programmable Vacuum Table |
| Unloading | Clean Sweep Unload |
| Panel Alignment | Automatic Panel Alignment |
Specifications sourced from newcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Boring block with 10 independent vertical spindles drills system holes without a tool change
- 16 hp (11.9 kW) HSK 63 spindle, programmable up to 21,000 rpm
- X and Y rapid speed of 3,673 ipm (93.3 m/min) on helical rack and pinion
- Six table sizes, from 4 x 9 ft to 7 x 13 ft
- Dual 10 HP Becker vacuum pumps and a multi-zone programmable vacuum table
- Clean Sweep unloading, automatic panel alignment and a material thickness sensor are in the specification list
Limitations
- The tool changer holds 12 positions; jobs with many profile cutters will fill it
- The boring block is vertical only, as described; horizontal boring is not mentioned
- No working travels, Z stroke, footprint or weight are published for the T5D
- Automatic loading, the unload conveyor and labelling are optional
Best For
Frequently Asked Questions
01
The Talent T5D adds a boring block with 10 independent spindles, uses an HSK 63 spindle, has dual 10 HP Becker vacuum pumps and comes in six table sizes. The Talent T5SKL is a 4 x 9 ft machine with an ISO 30 spindle, a single 10 HP Becker vacuum pump and no drill block in its list. Both have a 16 hp spindle and 3,673 ipm (93.3 m/min) rapids.
02
NEW CNC lists 4 x 9 ft, 5 x 10 ft, 5 x 12 ft, 6 x 12 ft, 7 x 10 ft and 7 x 13 ft. The page does not give exact X and Y travels for each size, so confirm the usable cutting area against your largest sheet before ordering.
03
The routing spindle is served by a 12-position ride-along automatic tool changer carousel, and 8 HSK 63 tool holders are included. Drilling is separate: the boring block has 10 independent vertical spindles of its own.
04
A multi-zone programmable vacuum table, fed by dual 10 HP Becker vacuum pumps, holds the sheet, with the control directing vacuum to the area the workpiece occupies. After cutting, the Clean Sweep arm pushes the nest to the offload table and sweeps the spoilboard.
05
X and Y rapid speed is 3,673 ipm (93.3 m/min), on helical rack and pinion with 1.5 kW servo motors. The spindle runs from 5,000 to 21,000 rpm. Cutting feed rates and Z-axis speed are not published.
