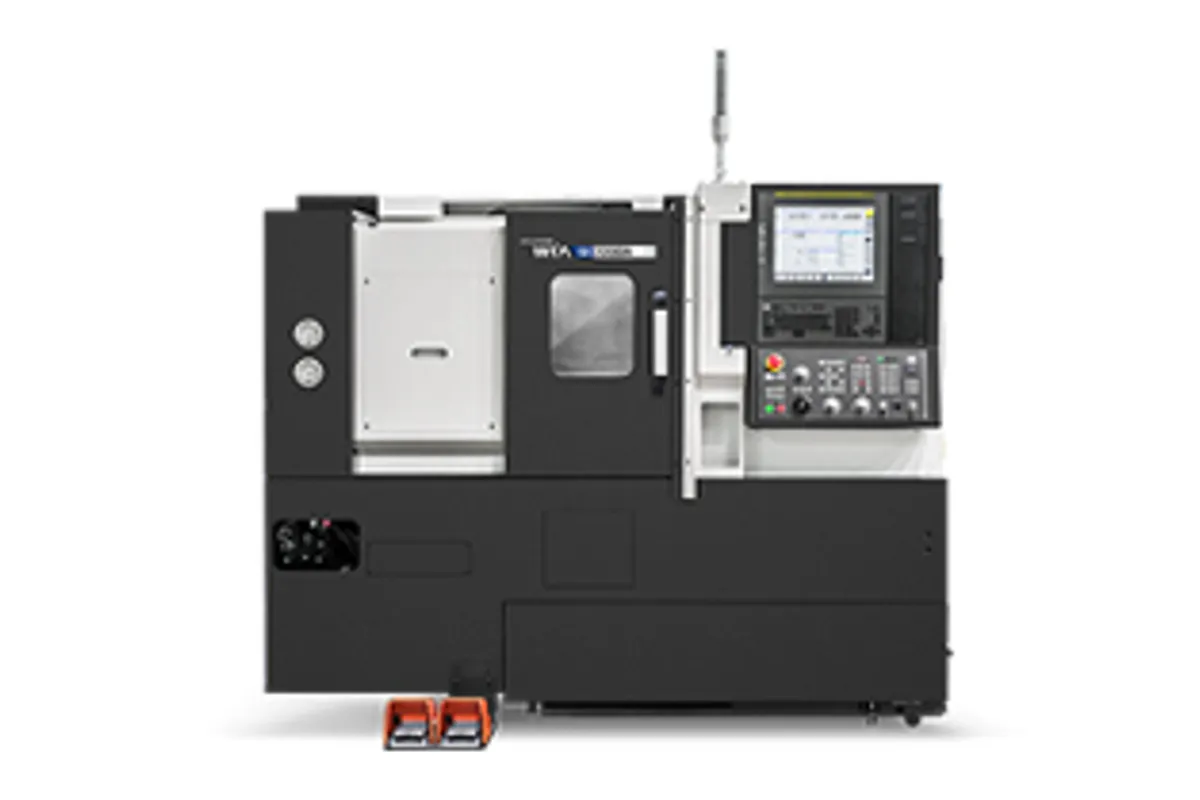

Hyundai WIA SE2200A Series
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle torque
Overview
The Hyundai WIA SE2200A Series encompasses four turning center variants — SE2200A, SE2200LA, SE2200MA, and SE2200LMA — built on a 30-degree slant bed with roller guideways for high-rigidity, high-speed production turning. The series covers standard and long-bed configurations with optional live tooling, providing a versatile platform for shops that need to standardize on a single machine family across diverse part requirements.
All SE2200A variants share a 6-inch chuck and 15/11 kW (20/15 hp) belt-driven spindle reaching 6,000 RPM with 127/70 Nm torque. The standard models (SE2200A, SE2200MA) offer 340 mm (13.4 in) turning length, while the long-bed variants (SE2200LA, SE2200LMA) extend to 560 mm (22 in). Maximum turning diameter is 350 mm (13.8 in) on non-milling models and 300 mm (11.8 in) on milling variants due to the live tooling turret configuration.
The 12-station turret accepts 25/40 mm tooling on standard models and 20/32 mm on milling variants, with milling tool speed of 6,000 RPM on the MA and LMA configurations. Rapid traverse is 30 m/min on X and 36 m/min on Z across all variants. The roller guideway system on the 30-degree one-piece bed provides exceptional rigidity and vibration damping for consistent surface finish quality.
The SE2200A Series runs on the latest Fanuc control platform. Pricing ranges from approximately $55,000-$85,000 new depending on variant and options, positioning the series competitively against the DN Solutions Lynx 2100 family and Haas ST-10/ST-15 range. The series is well-suited to shops standardizing on a single platform across 2-axis turning and mill-turn applications.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 350 mm (13.8 in) / 300 mm (11.8 in) M-variants |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 6,000 RPM |
| Spindle Motor Power | 15/11 kW (20/15 hp) |
| Spindle Torque | N.m |
| X Axis Travel | 210 mm (8.3 in) |
| Z Axis Travel | 340 mm (13.4 in) / 560 mm (22 in) L-variants |
| Rapid Traverse X | 30 m/min (1,181 ipm) |
| Rapid Traverse Z | 36 m/min (1,417 ipm) |
| Turret Stations | 12 |
| Tool Size | mm |
| Milling Tool Speed | r/min |
| Guideway Type | Roller guideways |
| Bed Angle | 30 degrees |
| Spindle Drive | Belt driven |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Four variants (standard/long, turning/milling) allow shops to standardize on one platform across diverse part requirements
- Roller guideways on 30-degree bed provide superior rigidity and vibration damping compared to ball-type linear guides
- 6,000 RPM spindle with 127 Nm torque delivers strong cutting performance for the 6-inch chuck class
- 36 m/min Z-axis rapid traverse minimizes non-cutting time on production programs
- 12-station turret with live tooling option enables done-in-one operations on milling variants
- Long-bed variants (LA/LMA) extend turning length to 560 mm for shaft-type components
Limitations
- 6-inch chuck limits workpiece diameter for shops regularly machining parts above 6 inches
- Milling variants reduce max turning diameter from 350 mm to 300 mm due to turret configuration
- Roller guideways require more careful maintenance than standard linear guides
- Hyundai WIA dealer network in North America is smaller than Haas or Mazak coverage
Best For
Frequently Asked Questions
01
SE2200A is standard 2-axis turning, SE2200LA adds long bed (560 mm Z), SE2200MA adds live tooling at 6,000 RPM, and SE2200LMA combines long bed with live tooling. All share the same 6-inch chuck, 15 kW spindle, and 12-station turret.
02
The SE2200A uses a 6-inch chuck versus the SE2200's 8-inch, and runs at 6,000 RPM versus 4,500 RPM. The SE2200A has higher spindle torque (127 Nm vs 92 Nm at rated speed). Choose the SE2200A for small-diameter high-speed work and the SE2200 for larger parts needing more clamping force.
03
All SE2200A variants run on the latest Fanuc 0i-TF Plus control with Manual Guide i conversational programming. This is the standard Fanuc platform used across Hyundai WIA's current turning center lineup.
04
Pricing ranges from approximately $55,000-$85,000 new depending on variant. Standard SE2200A is at the lower end, while the SE2200LMA with long bed and live tooling is at the upper end. Used machines from 2020 onward are available for $35,000-$55,000.
