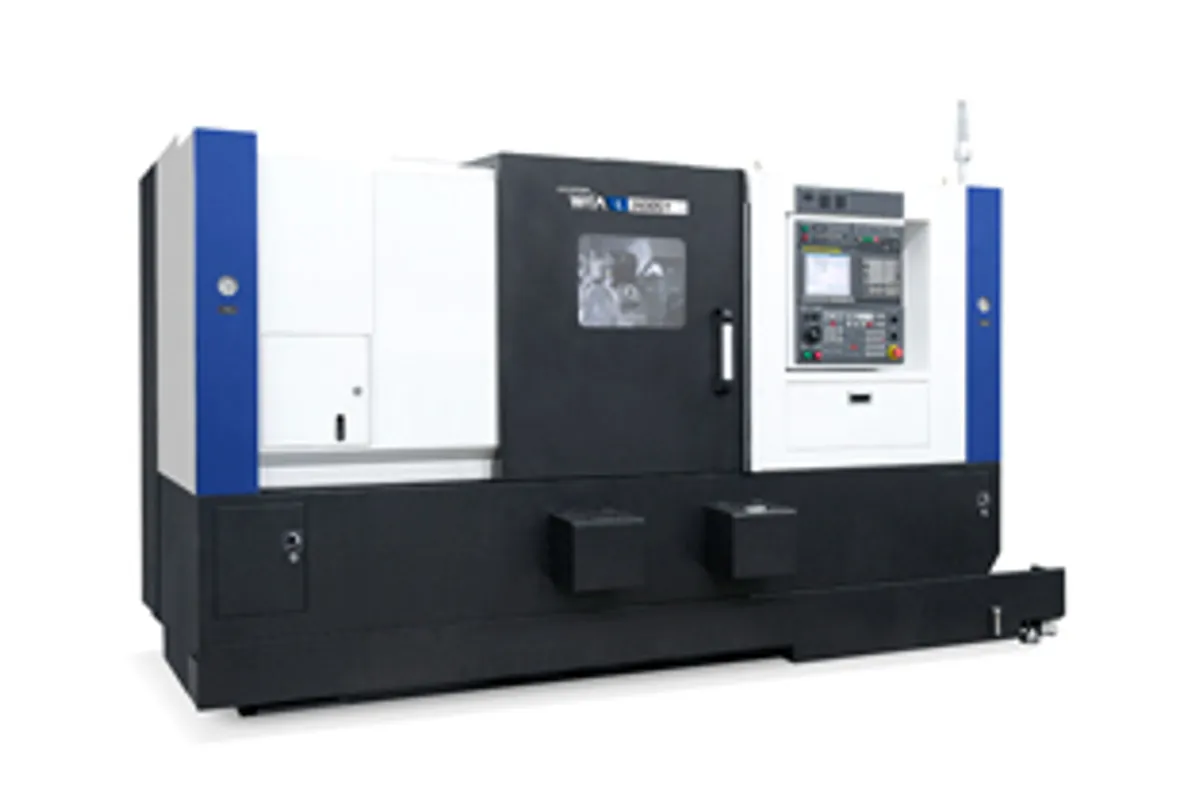

Hyundai WIA L2600SY Series
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Rapid Traverse
Spindle Power
Overview
The Hyundai WIA L2600SY Series is a mid-size multi-axis CNC turning center with sub-spindle, Y-axis, and live tooling, designed for complete done-in-one machining of complex parts. With a 10-inch main chuck and 6-inch sub-spindle, the L2600SY steps up from the L2000SY to handle larger-diameter workpieces up to 420 mm (16.5 in) turning diameter with 760 mm (29.9 in) maximum turning length. The wedge-type Y-axis BMT65P turret delivers exceptional rigidity for milling operations.
The spindle delivers 22/15 kW (29.5/20.1 hp) at up to 4,000 RPM with 599/409 N.m of torque. Box way construction on the slide provides the rigidity needed for stable combined turning and milling operations. The machine offers synchronized control of main and sub spindles for coordinated part handoff and simultaneous operations. Y-axis travel of 120 mm (+/-60 mm) with X/Z/ZB travels of 265/830/830 mm provides comprehensive reach for complex part geometries.
The wedge-type BMT65P turret is a significant feature -- this turret design provides superior rigidity compared to standard VDI turrets, enabling more aggressive milling parameters and better surface finishes during live tooling operations. The 12-station turret with 5,000 RPM live milling and 25/50 mm tool capacity handles the full range of turning, milling, drilling, and tapping operations required for complex multi-operation parts.
Rapid traverse rates of 30/10/30/30 m/min on X/Y/Z/ZB axes keep non-cutting time short. New L2600SY Series machines price between $150,000 and $220,000, competing with the DN Solutions Lynx 2600 LMSY, Mazak QT-250MSY, and Okuma LB3000 EX MY. For shops machining complex parts requiring the rigidity and capability of a 10-inch chuck mill-turn platform, the L2600SY delivers strong value.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 420 mm (16.5 in) |
| Max Turning Length | mm |
| Main Chuck Size | 10" (254 mm) |
| Sub Spindle Chuck | 6" (150 mm) |
| Max Spindle Speed | 4,000 RPM |
| Spindle Motor Power | 22/15 kW (29.5/20.1 hp) |
| Spindle Torque | N.m |
| X-Axis Travel | 265 mm (10.4 in) |
| Y-Axis Travel | 120 mm (4.7 in) |
| Z-Axis Travel | 830 mm (32.7 in) |
| Travel Zb | 830 mm (32.7 in) |
| Rapid Traverse Rate | 30/10/30/30 m/min X/Y/Z/ZB |
| Turret Stations | 12 |
| Turret Type | Wedge-type Y-axis BMT65P |
| Tool Size | mm |
| Live Tool Speed | 5,000 RPM |
| Guideway Type | Box ways |
| Machine Configuration | Mill-turn with sub-spindle and Y-axis |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Chuck Size | inch |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Milling Tool Speed | r/min |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Wedge-type BMT65P turret delivers superior rigidity for milling operations compared to standard VDI turrets, enabling more aggressive milling parameters
- 10-inch main chuck provides larger workpiece capacity than 8-inch class machines while maintaining full mill-turn capability with sub-spindle and Y-axis
- 760 mm maximum turning length accommodates medium-length shaft components that 8-inch class machines cannot handle
- 30 m/min rapid traverse on X and Z axes is fast for a box way machine, keeping non-cutting time competitive with linear guide alternatives
- Synchronized main/sub spindle control enables coordinated part handoff and simultaneous operations for maximum throughput
- Box way construction provides the rigidity essential for stable combined turning and milling operations on complex parts
Limitations
- 4,000 RPM maximum spindle speed is lower than the L2000SY's 5,000 RPM -- limiting surface speed on small-diameter finishing passes
- 10 m/min Y-axis rapid traverse is relatively slow, adding time when frequent Y-axis repositioning is required
- 22 kW spindle power may limit material removal rates during heavy roughing on larger-diameter workpieces in tough materials
- 12 tool stations may be limiting for very complex parts requiring many different operations -- consider twin-turret options for extreme complexity
Best For
Frequently Asked Questions
01
New L2600SY Series machines price between $150,000 and $220,000 depending on options. A complete cell with bar feeder and parts catcher typically runs $175,000-$250,000. The L2600SY offers 10-20% savings versus comparable Mazak QT-250MSY and Okuma LB3000 EX MY machines.
02
BMT (Base Mount Tooling) turrets clamp tools at the base rather than the shank, providing significantly higher rigidity than VDI turrets. The wedge-type design adds additional clamping force. This rigidity translates to better surface finishes, longer tool life, and the ability to take more aggressive milling cuts during live tooling operations.
03
The L2600SY has a larger 10-inch main chuck (vs. 8-inch), 760 mm turning length (vs. 520 mm), and BMT65P turret. The L2000SY has a faster spindle (5,000 vs. 4,000 RPM) and built-in spindle. Choose the L2600SY for larger parts and more aggressive milling; the L2000SY for smaller parts at higher speeds.
04
ZB refers to the sub-spindle Z-axis travel (830 mm). The sub-spindle moves independently along its own Z-axis to meet the main spindle for part handoff and to position for backworking operations. The equal Z and ZB travels indicate the sub-spindle has full range for flexible part positioning.
