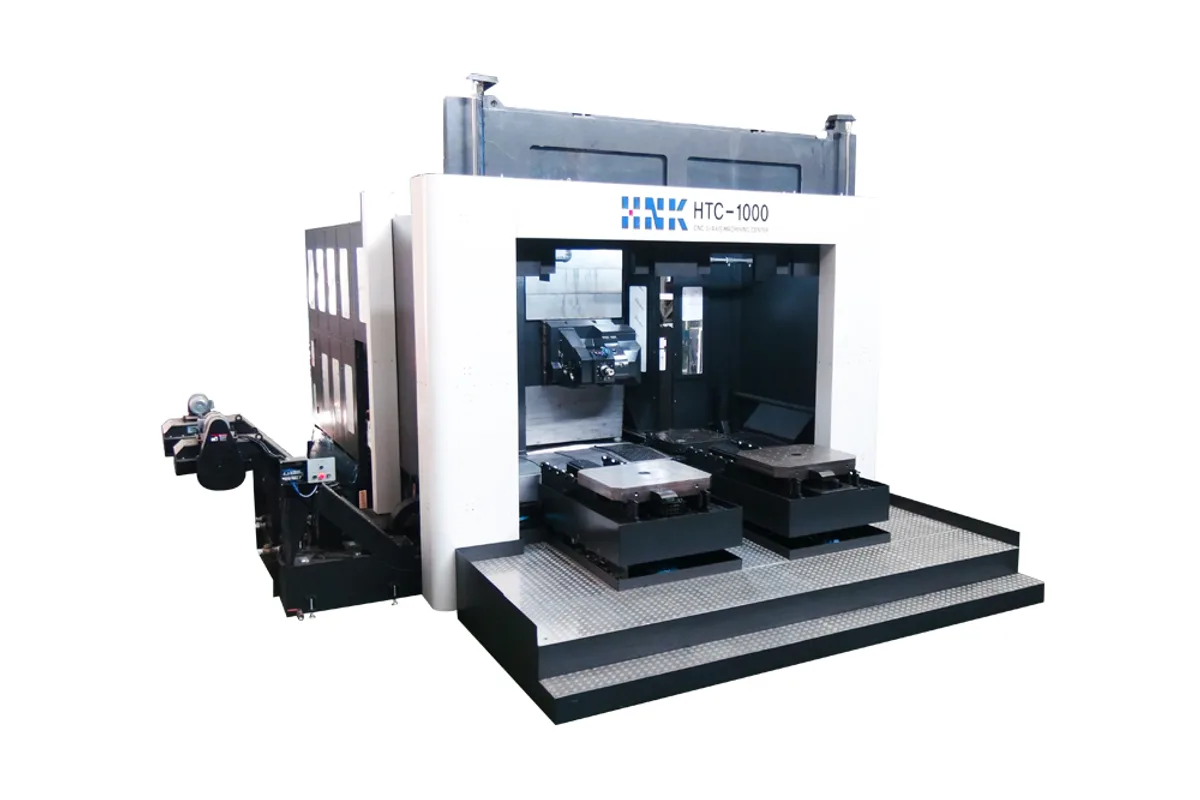

HNK HTC-1000
Image: en.hnkkorea.com, HNK
Key Specifications
workpiece swing diameter
max workpiece height
x axis travel
y axis travel
z axis travel
b axis range
How much does the HNK HTC-1000 cost?
Price estimate
We do not have a price for the HNK HTC-1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK HTC-1000 is a 5-axis horizontal machining center with a tilting head, built for aerospace parts. It swings a workpiece of 1,700 mm (66.9 in) diameter through the head's tilting range and accepts a part or fixture up to 1,650 mm (65.0 in) tall.
Linear travels are 1,700 mm (66.9 in) in X, 1,600 mm (63.0 in) in Y and 1,950 mm (76.8 in) in Z. Z is the longest of the three, which is unusual and useful: the column can back well away from a large ring or casing so the head can tilt without fouling it. The A-axis tilts from -100˚ to +60˚ and the B-axis table rotates without limit.
A row labelled only Dimensions reads 800 x 1,000 mm (31.5 x 39.4 in). The maker does not say of what, though the figure tracks the model number and sits beside the load row, so it reads as the pallet. Maximum loading mass is 3,000 kg (6,614 lb).
HNK says the machine is specialized for materials from titanium and Inconel to aluminium. No spindle speed, power or taper appears in the table, so the spindle has to be specified with the maker. Control is Siemens 840D.
Full Specifications
| Parameter | Value |
|---|---|
| Workpiece Swing Diameter | 1,700 mm (66.9 in) |
| Max Workpiece Height | 1,650 mm (65.0 in) |
| X Axis Travel | 1,700 mm (66.9 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel | 1,950 mm (76.8 in) |
| B Axis Range | ∞ |
| A Axis Range | -100˚ / +60˚ |
| Dimensions | 800 x 1,000 mm (31.5 x 39.4 in) |
| Max Loading Mass | 3,000 kg (6,614 lb) |
| CNC Control | Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Tilting head with an A-axis range of -100˚ / +60˚
- Endless B-axis rotation of the table
- Z travel of 1,950 mm (76.8 in), longer than X or Y
- Workpiece swing of 1,700 mm (66.9 in) inside the tilting range
Limitations
- Loading mass limited to 3,000 kg (6,614 lb), the lowest of the HTC sizes
- No spindle speed, power or taper in the published table
- The 800 x 1,000 mm row is labelled only Dimensions
Best For
Frequently Asked Questions
01
X (longitudinal) is 1,700 mm (66.9 in), Y (vertical) is 1,600 mm (63.0 in) and Z (traverse) is 1,950 mm (76.8 in). The A-axis tilts -100˚ / +60˚ and the B-axis range is given as endless.
02
03
HNK describes a 5-axis simultaneous horizontal machining center with a high-rigidity driven tilting head, specialized for aerospace parts in materials from titanium and Inconel to aluminium, the last with high spindle speed. The speed itself is not in the table.
04
Siemens 840D is the only control listed for the HTC series. Unlike many HNK machines, the table shows no second control in braces for these models.
