DN Solutions PUMA VTR 2025

Est. $800,000 - $1,100,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

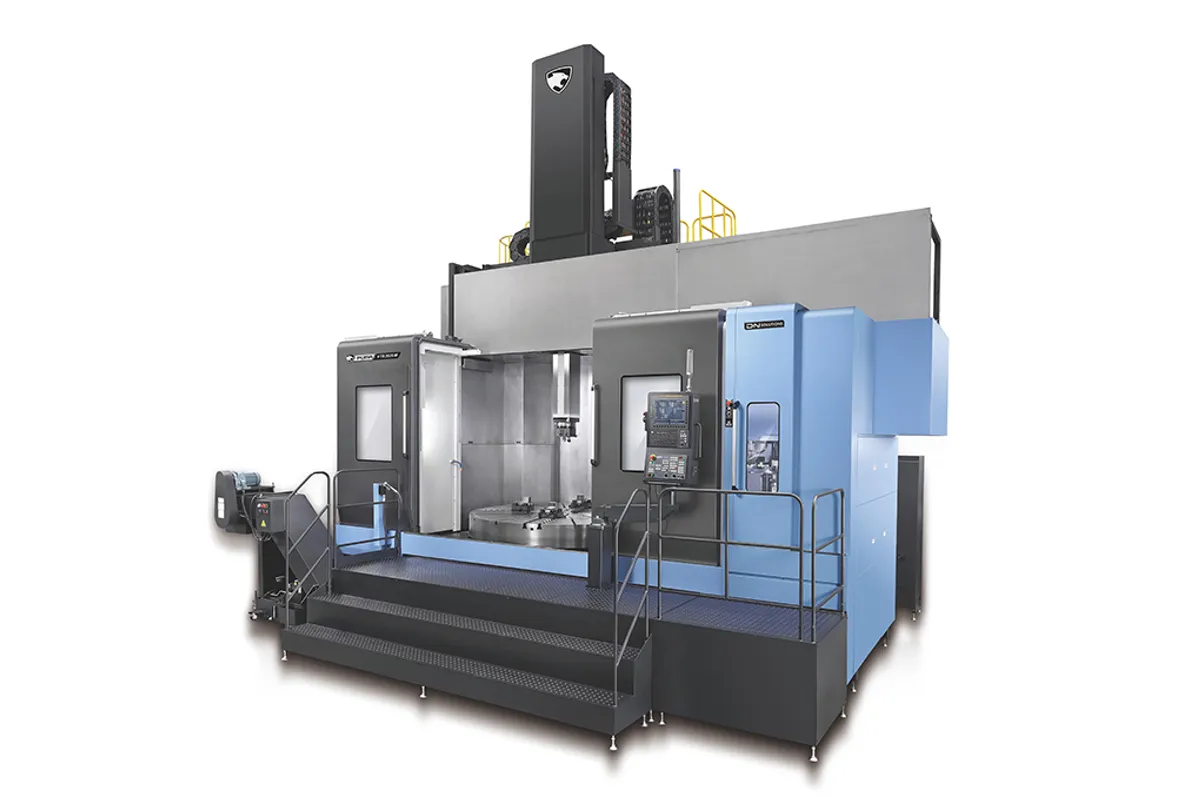

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

2,640 mm (104 in)

Z Travel

1,400 mm (55 in)

Max Spindle

200 rpm

Rapid Traverse

10 m/min (394 ipm)

Spindle Power

75 kW (101 hp)

Max Turn Length

2,000 mm (79 in)

How much does the DN Solutions PUMA VTR 2025 cost?

Estimated price range

Est.$800,000 - $1,100,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions PUMA VTR 2025 sits at the top of DN's box way vertical turning series: its 2,500 mm (98 in) turning diameter and 2,000 mm (79 in) turning length are the largest figures the series reaches. It is the turning-only version. The PUMA VTR 2025 M has the same spindle and travels and adds a 3,000 rpm live tool speed, so the choice between the two comes down to whether parts need drilling and milling in the same setup.

Everything about the spindle follows from the diameter. Top speed is 200 rpm, drive power is 75 kW (101 hp) and torque is 46,720 N·m (34,459 ft-lb). Against the PUMA VTR 1620, listed at 24,668 N·m (18,194 ft-lb) and 300 rpm, that is roughly 89% more torque at two thirds of the speed. The work that suits it is big and slow: bearing rings, wheel and gear blanks, valve bodies, where depth of cut matters more than rpm.

The ram moves 2,640 mm (104 in) in X and 1,400 mm (55 in) in Z at a single rapid rate of 10 m/min (394 ipm). Z stroke is less than the turning length, so confirm with DN how a full-height part is reached. DN's description of the series has the ram carrying a quad tool holder, so that 4 tools can be used straight from the ram without calling the tool changer, with 8,000 kg of tool clamping force. A servo-driven magazine, sized from 12 to 34 across the series, feeds the rest, and an automatic chuck changer is an option.

At 55,000 kg (121,254 lb), 7,600 mm (299 in) tall and 7,296 × 4,836 mm (287 × 190 in) on the floor, this is a foundation and crane project as much as a machine purchase. The table gives no workpiece weight limit and no chuck or table diameter. Both belong in the quotation.

Full Specifications

Parameter	Value
Max Turning Diameter	2,500 mm (98 in)
Max Turning Length	2,000 mm (79 in)
Rapid Traverse Rate	10 m/min (394 ipm)
X-Axis Travel	2,640 mm (104 in)
Z-Axis Travel	1,400 mm (55 in)
Max Spindle Speed	200 rpm
Spindle Motor Power	75 kW (101 hp)
Spindle Torque	46,720 N·m (34,459 ft-lb)
Floor Space Required	7,296 × 4,836 × 7,600 mm (287 × 190 × 299 in)
Machine Weight	55,000 kg (121,254 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

2,500 mm (98 in) turning diameter and 2,000 mm (79 in) turning length, the top of both ranges DN gives for the series
46,720 N·m (34,459 ft-lb) of spindle torque from a 75 kW (101 hp) drive
X travel of 2,640 mm (104 in) is longer than the turning diameter, so the ram can cross the whole face of the part
A quad tool holder on the ram lets 4 tools be used without a tool change
DN describes a thermally symmetrical spindle with a high-capacity cooler for the series

Limitations

No live tool speed is listed; drilling and milling in the same setup need the PUMA VTR 2025 M with its 3,000 rpm live tools
The 200 rpm maximum spindle speed restricts cutting speed on small diameters
One rapid rate of 10 m/min (394 ipm), where the PUMA VTR 1620 is listed at 12 m/min (472 ipm) in X
A machine weight of 55,000 kg (121,254 lb) and a height of 7,600 mm (299 in) call for a dedicated foundation and a high bay

Best For

Rings, wheels and flanges up to 2,500 mm (98 in) in diameter Heavy roughing that needs 46,720 N·m (34,459 ft-lb) of torque Turning-only work that has no use for live tools Tall workpieces up to the 2,000 mm (79 in) turning length

Frequently Asked Questions

01 What is the largest part the PUMA VTR 2025 can turn?

The table gives a maximum turning diameter of 2,500 mm (98 in) and a maximum turning length of 2,000 mm (79 in). X travel is 2,640 mm (104 in) and Z travel is 1,400 mm (55 in). No workpiece weight limit is listed, so ask DN for the table load before planning a heavy part.

02 How does the PUMA VTR 2025 differ from the PUMA VTR 2025 M?

The PUMA VTR 2025 M is listed with a live tool speed of 3,000 rpm and weighs 56,000 kg (123,459 lb). The PUMA VTR 2025 has no live tool row and weighs 55,000 kg (121,254 lb). Turning diameter, turning length, travels, rapid rate and the 200 rpm, 75 kW (101 hp) spindle are identical.

03 How does it compare with the PUMA VTR 1620?

The PUMA VTR 1620 turns 2,000 mm (79 in) by 1,800 mm (71 in) with 45 kW (60 hp), 24,668 N·m (18,194 ft-lb) and 300 rpm, and weighs 39,000 kg (85,980 lb). The PUMA VTR 2025 is larger in both diameter and turning length and has roughly 89% more torque, with a lower 200 rpm top speed and 55,000 kg (121,254 lb) of machine weight.

04 Is the 70 kW spindle option available on this model?

DN lists the 70 kW spindle as an option for the PUMA VTR 1216 and PUMA VTR 1620 series. The PUMA VTR 2025 does not need it: its table figure is already 75 kW (101 hp), with 46,720 N·m (34,459 ft-lb) of torque.

05 What should be checked before installing a PUMA VTR 2025?

Floor loading, hook height and access. The machine weighs 55,000 kg (121,254 lb) and its listed length, width and height are 7,296 × 4,836 × 7,600 mm (287 × 190 × 299 in). The height figure usually decides whether the bay and the crane are tall enough.
