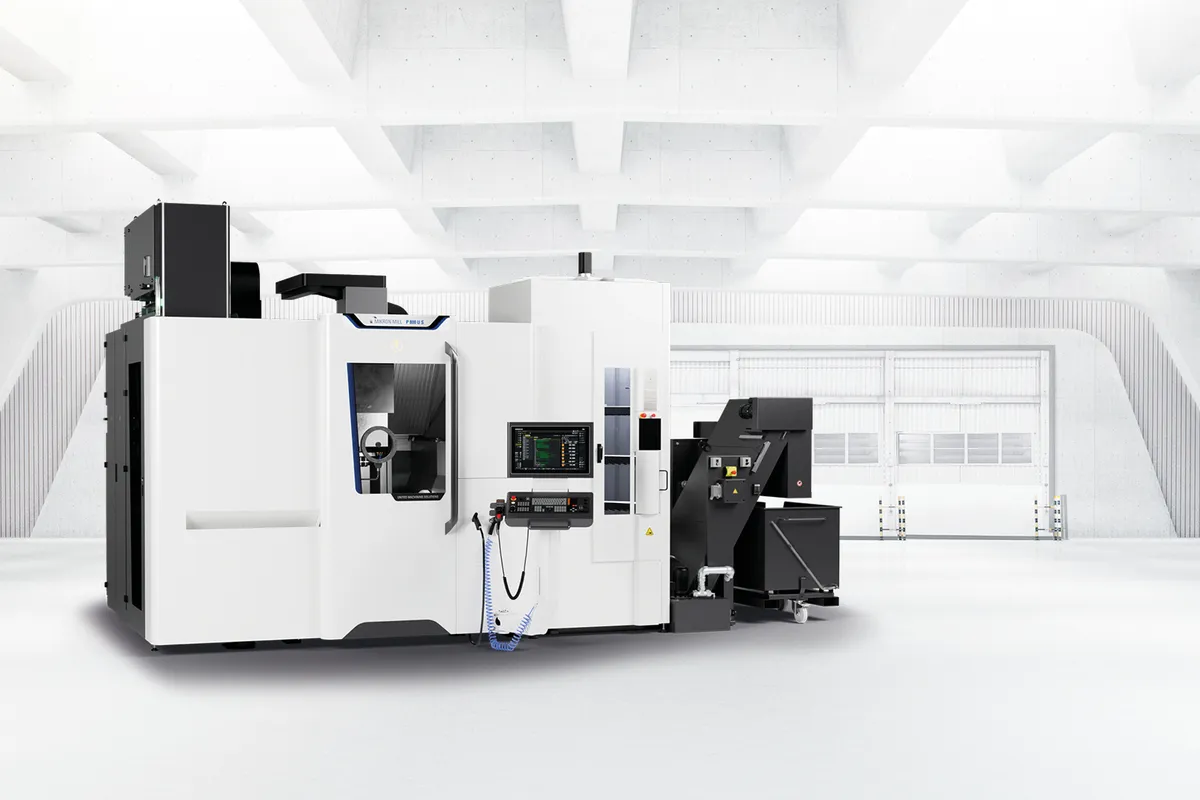

GF Machining MIKRON MILL P 800 U ST

Est. $550,000 - $900,000 Specs verified 2026-10-02 · united-mikronmill.com Updated 2026-10-02

Key Specifications

X Travel

800 mm

Y Travel

800 mm

Z Travel

550 mm

Table Size

T-slot table radial Ø 730 / Berg pallet system

feed rate xyz

61 m/min

swiveling range

+91/-121°

How much does the GF Machining MIKRON MILL P 800 U ST cost?

Estimated price range

Est.$550,000 - $900,000

Our best estimate for a 5-axis machining center in this class — not a quote from GF Machining Solutions. Configuration moves it a long way.

Overview

The MIKRON MILL P 800 U ST is the mill-turn member of the MILL P 800 family: an 800 × 800 × 550 mm 5-axis gantry whose rotary table spins at 800 rpm for simultaneous turning, against 100 rpm when milling. It carries a T-slot table radial Ø 730 rated for 800 kg, and its spindle has an HSK-T63 interface, the turning-capable form of HSK that can hold stationary turning tools as well as milling cutters.

That combination lets round features (bores, faces, sealing diameters, rings) be turned in the same clamping as the milled geometry around them. The spindle is still a 20,000 rpm unit rated 36 kW and 120 Nm, so milling capacity matches the MILL P 800 U S. The tilt axis swivels +91/-121° at 50 rpm, double the 25 rpm of the MIKRON MILL P 800 U S, and linear feed is 61 m/min.

Automation is part of the table. The pallet magazine comes as a 7x version for Ø 730 pallets or a 9x version for Ø 500, with other layouts on request, and the Berg pallet system is listed alongside the T-slot table. The tool magazine comes with 60, 120, 170 or 215 pockets, which matters because a mill-turn job needs room for turning tools on top of the milling set.

The 800 kg load limit is below the upper 1,000 kg figure of the MIKRON MILL P 800 U S. For a turned part, balance matters as much as weight: an off-centre mass at 800 rpm loads the table bearings, so plan fixtures with that in mind.

Full Specifications

Parameter	Value
X-Axis Travel	800 mm
Y-Axis Travel	800 mm
Z-Axis Travel	550 mm
Feed Rate Xyz	61 m/min
Swiveling Range	+91/-121°
Rotary Range	n x 360°
Feed Rate Swivel	50 rpm
Feed Rate Rotary	Milling 100 rpm / Simultaneous Turning 800 rpm
Table Size	T-slot table radial Ø 730 / Berg pallet system
Max Table Load	800 kg
Spindle	20,000 rpm (HSK-T63), 36 kW, 120 Nm
Tool Magazine	60 / 120 / 170 / 215 pockets
Automation	Pallet magazine 7x (Ø 730) / Pallet magazine 9x (Ø 500) / Others on request

Specifications sourced from united-mikronmill.com — verified 2026-10-02

Strengths & Limitations

Strengths

Simultaneous turning at up to 800 rpm on the rotary table, 100 rpm when milling
HSK-T63 spindle interface, 20,000 rpm with 36 kW and 120 Nm
T-slot table radial Ø 730 with an 800 kg load
Pallet magazine 7x for Ø 730 pallets or 9x for Ø 500 pallets
Tool magazines of 60, 120, 170 or 215 pockets
50 rpm swivel speed over +91/-121°

Limitations

Load limit is 800 kg, below the 500 / 1,000 kg row of the MIKRON MILL P 800 U S
Turning tools need HSK-T63 holders, a further tooling investment if the shop runs HSK-A63
Turning speed of 800 rpm limits surface speed on small diameters
Pallet layouts other than the 7x and 9x magazines are on request only

Best For

Parts with turned diameters and milled features in one clamping Rings, flanges and housings up to 800 kg Automated mill-turn cells with a 7x or 9x pallet magazine Jobs needing turning and milling tools together in up to 215 pockets

Frequently Asked Questions

01 How fast does the MILL P 800 U ST turn?

The rotary axis is listed at 800 rpm for simultaneous turning and 100 rpm for milling. The swivel axis runs at 50 rpm over +91/-121°. Linear feed is 61 m/min.

02 Why does the MILL P 800 U ST use an HSK-T63 spindle?

HSK-T63 is the HSK form used for turning, so the spindle can hold a turning tool in a fixed position while the table rotates the part. The spindle is rated 20,000 rpm, 36 kW and 120 Nm for milling. Check whether existing HSK-A63 holders are accepted for your milling tools.

03 What automation is available on the MILL P 800 U ST?

A pallet magazine 7x for Ø 730 pallets or 9x for Ø 500 pallets, the Berg pallet system, and other layouts on request. Tool magazines come in 60, 120, 170 or 215 pockets.

04 How does the MILL P 800 U ST compare with the MILL P 800 U S?

Both have 800 × 800 × 550 mm of travel and 61 m/min feed. The MIKRON MILL P 800 U S is milling-only on a System 3R Delphin 500 x 500 mm or Berg pallet system with a 500 / 1,000 kg load. The ST adds turning at 800 rpm on a T-slot table radial Ø 730 rated 800 kg.
