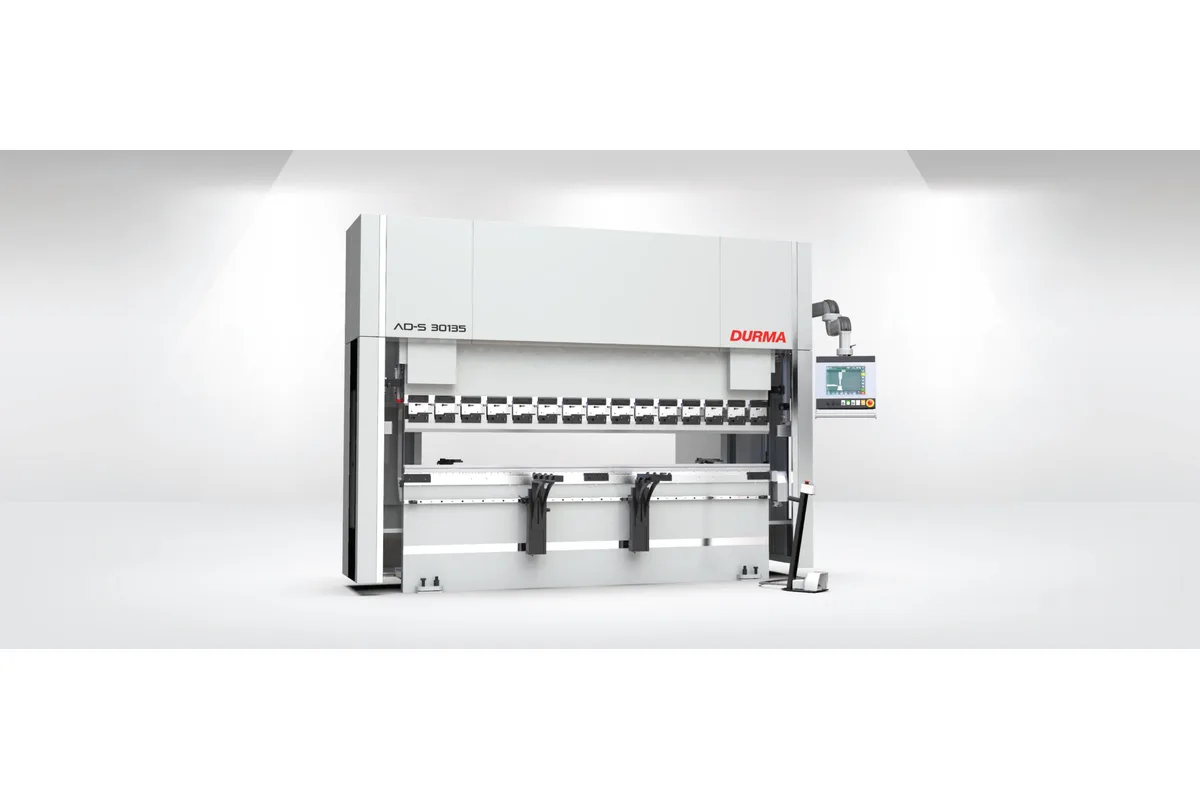

Durma AD-S 30135
Image: durmazlar.com.tr, Durma
Key Specifications
bending force
bending length
distance between columns
stroke
daylight
throat depth
How much does the Durma AD-S 30135 cost?
Price estimate
We do not have a price for the Durma AD-S 30135 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Durma AD-S 30135 is a 135 ton hydraulic press brake with a 3,050 mm (120.1 in) bending length, the size Durma shows in its own picture of the AD-S series. It is the general-purpose model of the line: one step above the lightest three-metre machine in force, and still quick.
A 15 kW (20.1 hp) motor and a 200 L oil tank supply the two cylinders. The beam comes down at 160 mm/sec, bends at 10 mm/sec and returns at 120 mm/sec. Linear scales on both sides give the Y axis a listed precision of 0.01 mm.
This is conventional hydraulics, with the pump driven by a constantly running motor. Durma also builds a hybrid on the same frame size. The AD-Servo 30135 has the same force, bed and 9,580 kg (21,120 lb) weight but a 75 L oil tank, and it comes with CNC crowning as standard. On the AD-S 30135 crowning is manual unless the CNC motorized system is ordered, and the standard control is the DT 15.
Frame figures: 2,600 mm (102.4 in) between the columns, a 450 mm (17.7 in) throat, 265 mm (10.4 in) of stroke and 530 mm (20.9 in) of daylight. The table can be had narrow at 104 mm (4.1 in) or wide at 180 mm (7.1 in).
The back gauge is built on double ballscrews and double linear guides, which Durma says protects it against collisions. Its X axis moves at 500 mm/sec over 650 mm (25.6 in). The machine is 4,200 mm (165.4 in) long and 1,680 mm (66.1 in) wide.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 135 ton |
| Bending Length | 3,050 mm (120.1 in) |
| Distance Between Columns | 2,600 mm (102.4 in) |
| Stroke | 265 mm (10.4 in) |
| Daylight | 530 mm (20.9 in) |
| Throat Depth | 450 mm (17.7 in) |
| Table Height | 900 mm (35.4 in) |
| Table Width | 104 mm (4.1 in) narrow / 180 mm (7.1 in) wide |
| Y Rapid Speed | 160 mm/sec |
| Y Working Speed | 10 mm/sec |
| Y Return Speed | 120 mm/sec |
| Y Axis Precision | 0.01 mm |
| X Axis Working Speed | 500 mm/sec |
| X Axis Precision | 0.05 mm |
| X Axis Travel | 650 mm (25.6 in) standard; 1,000 mm (39.4 in) optional |
| R Axis Working Speed | 350 mm/sec |
| R Axis Travel | 250 mm (9.8 in) |
| R Axis Precision | 0.1 mm |
| Z Axis Working Speed | 1,000 mm/sec |
| Z Axis Travel | 1,990 mm (78.3 in) |
| Motor Power | 15 kW (20.1 hp) |
| Oil Tank Capacity | 200 L |
| Machine Length | 4,200 mm (165.4 in) |
| Machine Width | 1,680 mm (66.1 in) |
| Machine Height | 2,850 mm (112.2 in) |
| Machine Weight | 9,580 kg (21,120 lb) |
Specifications sourced from durmazlar.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 135 ton on a 3,050 mm (120.1 in) bed with a 160 mm/sec approach
- 15 kW (20.1 hp) motor with a 200 L oil tank
- Y axis precision of 0.01 mm from high accuracy linear scales
- Double ballscrew, double linear guide back gauge moving at 500 mm/sec
- Narrow 104 mm (4.1 in) or wide 180 mm (7.1 in) table
Limitations
- Standard crowning is manual; the AD-Servo 30135 includes CNC crowning
- Standard back gauge has a servo X axis only; R and Z are options
- Rapid speed of 160 mm/sec is below the 180 mm/sec of the AD-S 30100
- Wide table stops at 180 mm (7.1 in)
Best For
Frequently Asked Questions
01
A CNC hydraulic press brake with 135 ton of bending force and a bending length of 3,050 mm (120.1 in). It has a stress relieved mono block frame, Y1 and Y2 cylinders controlled over linear scales, and a servo back gauge. Weight is approximately 9,580 kg (21,120 lb).
02
Force, bed length and frame opening match. The AD-Servo 30135 drives its pumps with servomotors, lists a rapid speed of 200 mm/sec and has the SKY 22 control as standard. The AD-S 30135 uses a 15 kW (20.1 hp) motor, approaches at 160 mm/sec and comes with the DT 15 control.
03
Y1, Y2 and X under the DT 15 control. Durma offers back gauge packages with motorized X and R, with X, R, Z1 and Z2, and with X1, X2, R1, R2, Z1 and Z2. The R axis is listed with 250 mm (9.8 in) of working distance and the Z axis with 1,990 mm (78.3 in).
04
Throat depth is 450 mm (17.7 in), and the distance between the columns is 2,600 mm (102.4 in). A sheet wider than that distance can be bent only to a flange depth the throat allows.
