Citizen Miyano ABX-65THY
This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-03 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

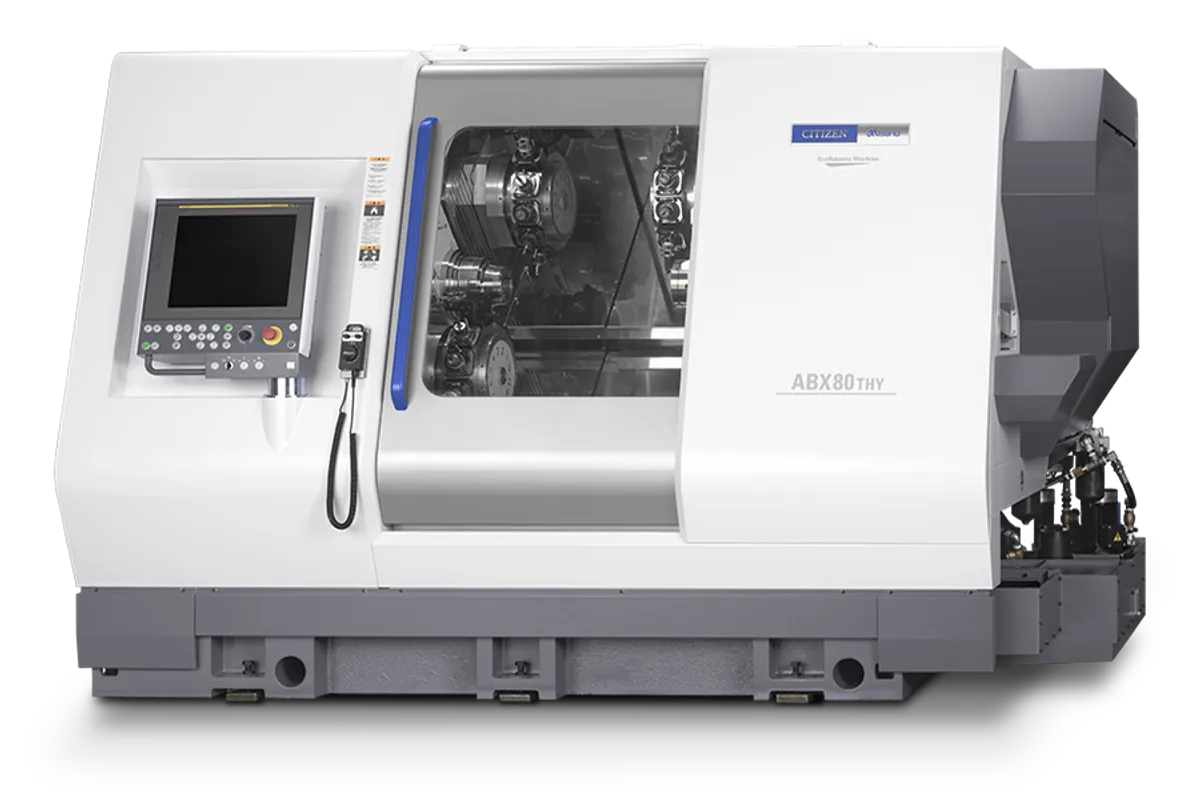

Image: cmj.citizen.co.jp, Citizen Machinery
Key Specifications
Max Turn Length
max bar capacity
max turning diameter
main spindle speed
sub spindle speed
live tool speed
How much does the Citizen Miyano ABX-65THY cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Citizen Machinery. Configuration moves it a long way.
Overview
The Miyano ABX-65THY is a three-turret, two-spindle turning center: three 12-station turrets, 36 stations in all, each with a Y stroke of 80 (±40) mm and room for 12 revolving tools, coordinated by a Mitsubishi M80W multi-path control. Citizen's current lineup does not include the ABX-65THY, so buyers will mostly be looking at used machines.
Both spindles carry the same 18.5 / 15 kW (25 / 20 HP) rating. On many two-spindle lathes the second spindle is the smaller one and only finishes the back face; here it can take roughing cuts as well, which helps balance the cycle between the two ends of the part. Each spindle has a 6-inch power chuck, and chuck work is listed to 300 mm (11.81 in) in diameter and 200 mm (7.87 in) in length.
The third turret is the reason to choose this machine. With three tool carriers, two can work one spindle while the third works the other, or each turret can take its own share of a long operation list. Turrets 1 and 3 have 270mm of Z travel and turret 2 has 550mm; all three move 190mm in X. The Zs stroke is 756mm and the spindle end faces sit 1031mm apart.
Rapids are 20 m/min on X, 24 m/min on Z and 12 m/min on Y, and driven tools run to 6,000 RPM. The machine weighs 11,300kg, stands 2,210mm high and needs 3,260×2,200mm of floor.
Full Specifications
| Parameter | Value |
|---|---|
| Max Bar Capacity | 65 mm (2.56 in) |
| Max Turning Diameter | 300 mm (11.81 in) chuck work |
| Max Turning Length | 200 mm (7.87 in) |
| Main Spindle Speed | 4,500 RPM |
| Sub Spindle Speed | 4,500 RPM |
| Live Tool Speed | 6,000 RPM |
| Number of Axes | 13+ (X1, Z1, Y1, C1, X2, Z2, Y2, C2, X3, Z3 + turret indexing) |
| Turret Positions | 36 (12 per turret, all with live tooling) |
| Rapid Traverse X | 20 m/min |
| Rapid Traverse Z | 24 m/min |
| Machine Weight | 11,300kg |
| CNC Control | Mitsubishi M80W multi-path (Citizen Miyano) |
| Items | ABX-65THY3 |
| Distance Between Spindle End Faces | 1031mm |
| Sp2 | 5,000min-1 |
| Type of Turret | 12St.Turret |
| Dimensions of Tools Used | □ 20 |
| Dimensions of Tool Mounting Holes | φ 25 |
| Slide Stroke | X1,X2,X3 axis |
| Z1 Axis | 270mm |
| Z2 Axis | 550mm |
| Z3 Axis | 270mm |
| Y1y2y3 Axis | 80（±40） |
| Zs Axis | 756mm |
| Maximum Number of Revolving Tools | 12/12/12 |
| Machine Height | 2,210mm |
| Floor Space | 3,260×2,200mm |
| Maximum Machining Diameter of Bar Work Sp1 Sp2 | 80mm Dia./65mm Dia. |
| Power Chuck Sp1 Sp2 | 6"POWER CHUCK |
| Spindle Motor Sp1sp2 | 18.5/15 kW |
| Spindle Speed Range Sp1 | - 4,000min-1 |
| Spindle Speed Range Sp2 | - 5,000min-1 |
| Slide Stroke X1x2x3 Axis | 190mm |
| Slide Stroke Z1 Axis | 270mm |
| Slide Stroke Z2 Axis | 550mm |
| Slide Stroke Z3 Axis | 270mm |
| Slide Stroke Y1y2y3 Axis | 80（±40） |
| Slide Stroke Zs Axis | 756mm |
| Max Machining Diameter | 65 mm (2.56 in) |
| Main Spindle Power | 18.5 / 15 kW (25 / 20 HP) |
| Sub Spindle Power | 18.5 / 15 kW (25 / 20 HP) |
| Chuck Size | 6-inch power chuck |
| Number of Turrets | 3 |
| Turret Stations | 12 per turret (36 total) |
| Max Driven Tools | 12 per turret (36 total) |
| Y Axis Stroke | 80 mm (+/- 40 mm) |
| X Axis Travel | 190 mm (7.48 in) |
| Z1 Axis Travel | 270 mm (10.63 in) |
| Z2 Axis Travel | 550 mm (21.65 in) |
| Z3 Axis Travel | 270 mm (10.63 in) |
| Rapid Traverse Y | 12 m/min |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Three 12-station turrets, 36 stations, each turret holding up to 12 revolving tools
- Y axis on all three turrets with 80 (±40) mm of stroke
- Both spindles rated 18.5 / 15 kW (25 / 20 HP)
- Mitsubishi M80W multi-path control
- Turret 2 has 550mm of Z travel
Limitations
- 11,300kg against 10,900kg for the two-turret Miyano ABX-65SYY
- Z travel on turrets 1 and 3 is 270mm, which limits their reach along longer parts
- Y rapid is 12 m/min against 20 m/min on X
- Three-turret programs need multi-path programming and careful collision checks
Best For
Frequently Asked Questions
01
The Miyano ABX-65THY has three 12-station turrets, 36 stations, and a Mitsubishi M80W multi-path control. The Miyano ABX-65SYY has two turrets with 24 stations and the dual-path M80W. The Miyano ABX-65SYY weighs 10,900kg against 11,300kg here; both are listed for chuck work to 300 mm (11.81 in).
02
The Miyano ABX-80THY is listed for chuck work to 350 mm (13.78 in) in diameter and 250 mm (9.84 in) in length, against 300 mm (11.81 in) and 200 mm (7.87 in) here, and its Z rapid is 30 m/min against 24 m/min. Both weigh 11,300kg and carry 36 turret stations.
03
All three turrets travel 190mm in X and have a Y stroke of 80 (±40) mm. Z travel is 270mm on Z1 and Z3 and 550mm on Z2. The Zs stroke is 756mm, and the spindle end faces sit 1031mm apart.
04
Both are rated 18.5 / 15 kW (25 / 20 HP), and each carries a 6-inch power chuck. Equal ratings let the second spindle take real cuts instead of only finishing the back face. Driven tools run to 6,000 RPM.
