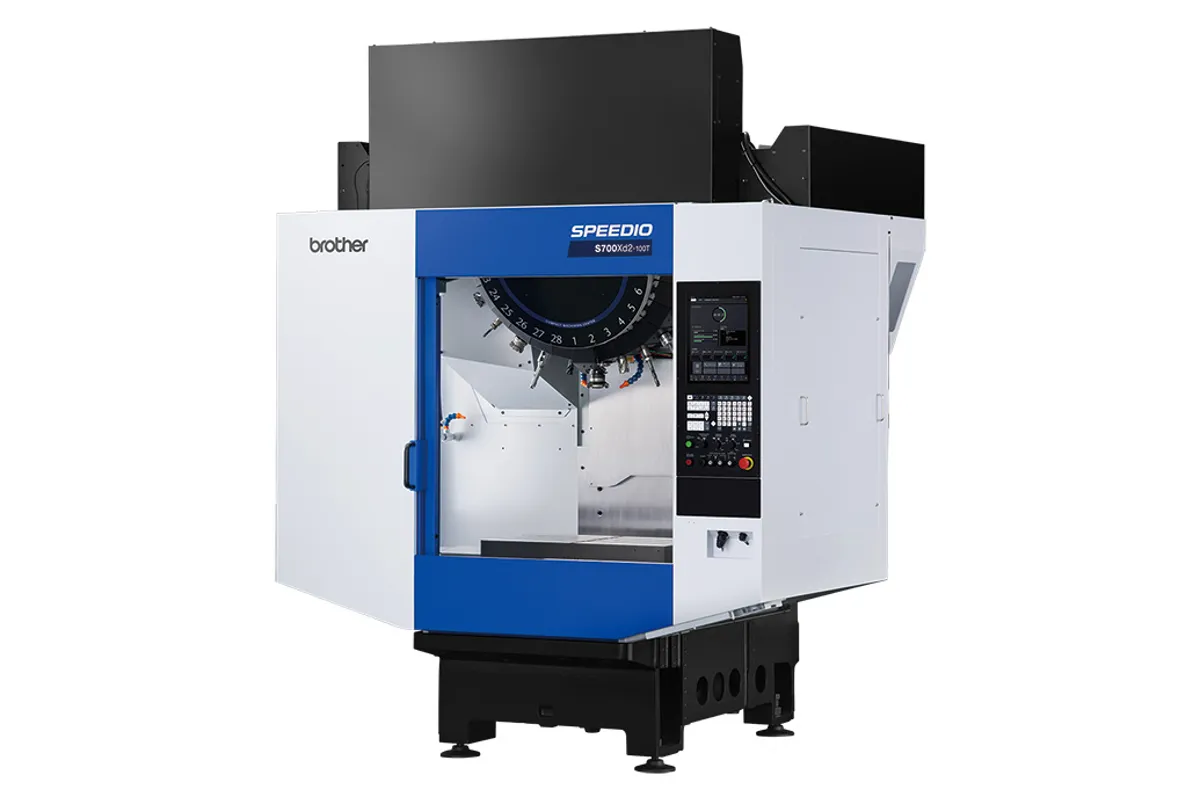

Brother SPEEDIO S700Xd2-100T
Image: machinetool.global.brother, Brother Industries
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Brother SPEEDIO S700Xd2-100T cost?
Estimated price range
Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Brother Industries. Configuration moves it a long way.
Overview
The Brother SPEEDIO S700Xd2-100T is the S700Xd2 machining center built around a 100-tool magazine. It keeps the 700 x 450 mm (27.6 x 17.7 in) X and Y travels and the 800 × 450 mm (31.4 × 17.7 in) table, always comes with the long 380 mm (15.0 in) Z axis, and runs a BT30 spindle at 12,000 rpm as standard under the CNC-D00 control.
A hundred pockets change how the machine is used rather than what it can cut. Tools for many different part numbers can stay in the magazine, so changeover between jobs becomes a program call instead of a tool-loading session, and sister tools for long unattended runs have somewhere to live. Brother's figures put the cost at 0.7 sec tool to tool and 1.4 sec chip to chip. The tool selection is by the random shortcut method, and tool limits are 110 mm (4.3 in) in diameter and 250 mm (9.8 in) in length.
All that tooling does not take more floor. The table gives the same 2,050 x 2,081 mm (80.7 x 81.9 in) footprint as the Speedio S700Xd2, though the 100T is taller at 2,568 mm (101.1 in) and heavier at 2,700 kg (5,953 lb), so check ceiling height and slab loading before it arrives.
The fixed 380 mm Z gives 150 - 530 mm (5.9 - 20.9 in) from spindle nose to table, enough for a fourth axis. Spindle choices are narrower than on the standard Xd2: the 12,000 rpm spindle, a high-torque 10,000 rpm spindle, or a 20,000 rpm option, with tapping to 6,000 rpm. Output is 10.1 kW for 10 minutes and 7.0 kW continuous. Table load is 250 kg (551 lb), or 400 kg (881 lb) with the option. The machine draws 10.4 kVA from a 200 to 230 V 3-phase supply and 40 L/min of air.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | Brother CNC-D00 |
| X-Axis Travel | 700 mm (27.6 in) |
| Y-Axis Travel | 450 mm (17.7 in) |
| Z-Axis Travel | 380 mm (15.0 in) |
| Spindle Nose to Table | 150 - 530 mm (5.9 - 20.9 in) |
| Table Size | 800 × 450 mm (31.4 × 17.7 in) |
| Max Table Load | 250 kg (551 lb); 400 kg (881 lb) with option |
| Max Spindle Speed | 12,000 rpm (10,000 high-torque, 20,000 rpm optional) |
| Tapping Speed Max | 6,000 rpm |
| Spindle Taper | BT30 (7/24 taper No. 30) |
| Dual Contact Spindle | Optional |
| Coolant Through Spindle | Optional |
| Rapid Traverse Rate | 50 / 50 / 56 m/min (1,969 / 1,969 / 2,205 ipm) |
| Max Cutting Feedrate | 30,000 mm/min (1,181 ipm) |
| Tool Shank | MAS-BT30 |
| Pull Stud | MAS-P30T-2 |
| Tool Capacity | 100 tools |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Diameter (full magazine) | 110 mm (4.3 in) |
| Tool Selection | Random shortcut method |
| Tool to Tool Time | 0.7 sec |
| Chip to Chip Time | 1.4 sec |
| Spindle Motor Power | 10.1 kW (10 min) / 7.0 kW continuous |
| Axis Feed Motor | X,Y: 1.0 / Z: 2.0 kW |
| Power Supply | AC 200 to 230 V±10%, 3-phase, 50/60Hz±2% |
| Power Capacity | 10.4 kVA |
| Air Pressure | 0.4 - 0.6 MPa |
| Air Flow | 40 L/min |
| Machine Height | 2,568 mm (101.1 in) |
| Floor Space Required | 2,050 x 2,081 mm (80.7 x 81.9 in) |
| Machine Weight | 2,700 kg (5,953 lb) |
| Positioning Accuracy | 0.006 - 0.020 mm (0.00024 - 0.00079 in) |
| Repeatability | < 0.004 mm (0.00016 in) |
| Front Door | 2 doors |
Specifications sourced from machinetool.global.brother — verified 2026-10-03
Strengths & Limitations
Strengths
- 100-tool magazine keeps tooling for many jobs loaded at once
- 380 mm (15.0 in) Z as standard, with 150 - 530 mm (5.9 - 20.9 in) from spindle nose to table
- Same 2,050 x 2,081 mm (80.7 x 81.9 in) footprint as the Speedio S700Xd2 despite the larger magazine
- 12,000 rpm standard spindle with high-torque 10,000 rpm and 20,000 rpm options
- Rapids of 50 / 50 / 56 m/min (1,969 / 1,969 / 2,205 ipm) and 30,000 mm/min (1,181 ipm) cutting feed
Limitations
- Chip to chip is 1.4 sec and tool to tool 0.7 sec, slower than the 0.6 sec of the 14 or 21 tool magazines on the Speedio S700Xd2
- The fastest spindle option is 20,000 rpm, where the Speedio S700Xd2 can take a 27,000 rpm spindle
- Tapping is listed at 6,000 rpm with no higher-speed tapping option
- At 2,700 kg (5,953 lb) and 2,568 mm (101.1 in) tall, it is the heaviest and tallest of the S700 versions in this comparison
Best For
Frequently Asked Questions
01
The Speedio S700Xd2 offers 14, 21 or 28 tools, has 300 mm (11.8 in) of Z as standard with 380 mm (15.0 in) optional, can take a 27,000 rpm spindle and weighs 2,550 kg (5,622 lb). The 100T has 100 tools, always has 380 mm of Z, tops out at a 20,000 rpm spindle option and weighs 2,700 kg (5,953 lb).
02
0.7 sec tool to tool and 1.4 sec chip to chip. Tools are selected by the random shortcut method, so the magazine takes the shorter way round to the next tool. Shanks are MAS-BT30 with MAS-P30T-2 pull studs, up to 110 mm (4.3 in) in diameter and 250 mm (9.8 in) long.
03
Not in plan. The footprint is 2,050 x 2,081 mm (80.7 x 81.9 in), the same as the Speedio S700Xd2. It is taller at 2,568 mm (101.1 in), so measure the ceiling and any overhead crane, and at 2,700 kg (5,953 lb) it is the heaviest S700 version listed here.
04
Power capacity is 10.4 kVA on a 200 to 230 V 3-phase supply. Air demand is 40 L/min at 0.4 to 0.6 MPa. The axis feed motors are 1.0 kW on X and Y and 2.0 kW on Z, and the spindle is rated 10.1 kW for 10 minutes and 7.0 kW continuous.
