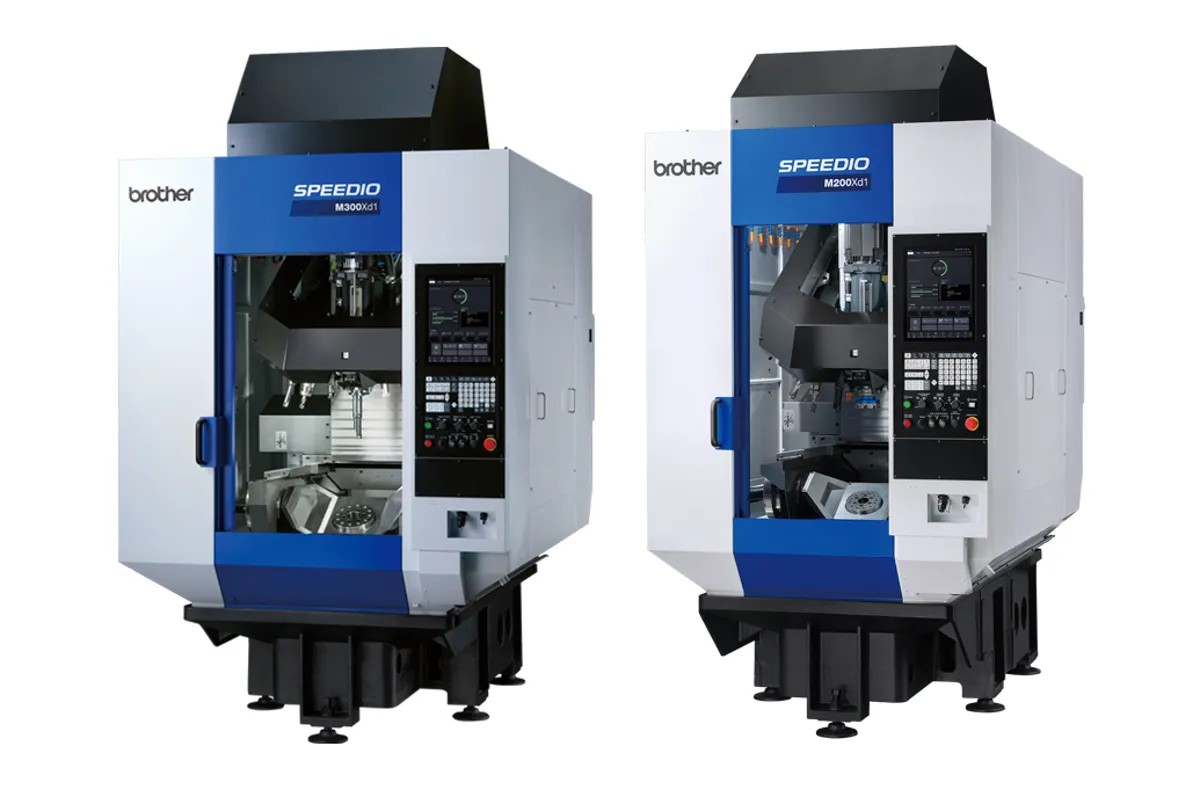

Brother Speedio M200Xd1

$200,000 - $300,000 Updated 2026-03-16

Key Specifications

X Travel

200 mm (7.9 in)

Y Travel

200 mm (7.9 in)

Z Travel

200 mm (7.9 in)

Max Spindle

27,000 rpm

Spindle Taper

BBT30 (30-taper)

Tool Capacity

21 (ATC magazine)

Overview

The Brother Speedio M200Xd1 is a 5-axis ultra-compact machining center that brings simultaneous 5-axis capability to the 30-taper Speedio platform. It extends Brother's speed-focused philosophy into full 5-axis machining for small complex parts — targeting the medical, dental, electronics, and precision engineering markets where the Speedio S-series excels, but adding a trunnion-type A/C axis table for complete 5-sided and simultaneous 5-axis machining in a single setup.

The M200Xd1's trunnion table provides A-axis tilt of +30 to -110 degrees and C-axis continuous rotation, accepting workpieces up to 200 mm diameter. The BBT30 spindle runs at up to 27,000 rpm — high speed optimized for small cutters in aluminum, titanium, and medical-grade stainless steel. Brother's remarkable 0.9-second tool-to-tool change time is preserved on the M-series, maintaining the cycle efficiency advantage even with the added complexity of 5-axis positioning.

The machine's compact footprint — approximately 1,554 x 2,088 mm — makes it suitable for tight cell integration or even cleanroom placement for medical applications. The X/Y/Z travel of 200 x 200 x 200 mm defines the workpiece envelope: this is a machine optimized specifically for small complex parts requiring 5-axis access. Shops running medical implant production, dental prosthetics, and precision aerospace hardware find the M200Xd1's combination of 5-axis capability, extreme tool change speed, and small footprint particularly compelling.

Brother's CNC-C00 control, developed in-house for the Speedio line, provides single-block processing times under 0.4 ms — essential for smooth high-speed 5-axis contouring. The Xd1 generation includes enhanced thermal management and improved dynamic accuracy for simultaneous 5-axis work. Pricing typically falls in the $200,000–$300,000 range, making it substantially more accessible than full-featured 5-axis machines from DMG MORI or Hermle. It competes directly with the Fanuc Robodrill D14MiA5 in the compact 5-axis 30-taper space.

Full Specifications

Parameter	Value
X-Axis Travel	200 mm (7.9 in)
Y-Axis Travel	200 mm (7.9 in)
Z-Axis Travel	200 mm (7.9 in)
A Axis Range	+30° / -110°
C Axis Range	360° continuous
Max Spindle Speed	27,000 rpm
Spindle Taper	BBT30 (30-taper)
Spindle Motor Power	2.2 kW (3 hp) continuous / 5.5 kW (7.4 hp) peak
Rapid Traverse Xyz	50 m/min (1,969 ipm)
Tool Change Time	0.9 sec tool-to-tool
Tool Capacity	21 (ATC magazine)
Max Workpiece Diameter	Ø 200 mm (7.9 in)
Max Workpiece Weight	8 kg (17.6 lb) on trunnion
CNC Control	Brother CNC-C00
Floor Space Required	1,554 x 2,088 mm (61.2 x 82.2 in)
主軸最高回転数 (Min-1)	10,00016,000 (オプション)
旋削主軸最高回転数 (Min-1)	M200Xd1 : 2,000
移動量 (X、Y、Z) (Mm)	M200Xd1 : X:200 Y:440 Z:305
移動量 (A、C) (度)	A : -30～120、C : 360
早送り速度 (X、Y、Z) (M/Min)	X:50 Y:50 Z:50
割り出し速度 (A、C) (Min-1)	M200Xd1 : A:60 C:200
所要床面の大きさ (Mm)	M200Xd1 : 1,280×2,667
Bt	オプション
クーラントスルースピンドル (Cts)	オプション

Specifications sourced from brother.co.jp — verified 2026-03-28

Strengths & Limitations

Strengths

Simultaneous 5-axis capability on the compact 30-taper Speedio platform enables complex medical, dental, and aerospace small parts in a single setup without larger machine investment
27,000 rpm spindle delivers the surface speeds required for small-diameter tool machining of aluminum, titanium, and stainless with excellent surface finish
0.9-second tool-to-tool change time preserved from the S-series keeps cycle efficiency high even with complex 5-axis programs
Extremely compact footprint (1,554 x 2,088 mm) allows multiple units in a small cell or cleanroom placement for medical device applications

Limitations

200 x 200 x 200 mm work envelope is genuinely small — strictly a machine for small parts; medium-sized components require moving to larger 5-axis platforms
2.2 kW continuous spindle power limits material removal rate in steel and titanium — aggressive roughing must be managed carefully to avoid spindle overload
8 kg workpiece weight limit on the trunnion restricts part density and workholding options compared to larger 5-axis trunnion machines

Best For

Medical device manufacturers machining orthopedic implants, bone screws, surgical instruments, and dental prosthetics requiring 5-axis access in compact packages Dental CAD/CAM centers producing crowns, bridges, abutments, and milled restorations from zirconia, PMMA, titanium, and cobalt-chrome Aerospace shops machining small complex structural fittings, brackets, and fluid system components requiring compound-angle features in titanium alloys Electronics manufacturers producing precision housings, connectors, and structural parts with complex geometry in aluminum and engineering plastics

Frequently Asked Questions

01 What distinguishes the M200Xd1 from the S700X1 in Brother's Speedio lineup?

The M200Xd1 adds a trunnion-type 5-axis (A/C) table to the Speedio platform, enabling simultaneous 5-axis machining of complex parts. The S700X1 is a 3-axis machine with much larger X travel (700 mm vs 200 mm) — better suited for larger 2.5D parts requiring many holes, taps, and milling features. Choose the M200Xd1 for complex geometries requiring 5-axis access; choose the S700X1 for high-volume production of simpler small parts with many features.

02 Is the Brother Speedio M200Xd1 suitable for titanium medical implants?

Yes, with appropriate toolpath strategy. The 27,000 rpm spindle delivers excellent surface speed for small-diameter Ti-6Al-4V machining, and the 5-axis capability eliminates setups on complex implant geometry. The 2.2 kW continuous rating requires conservative depths of cut in titanium, but the machine regularly produces hip stems, knee components, and spinal hardware in medical shops. Brother's thermal compensation helps maintain accuracy during long implant programs.

03 What CAM software works well with the Brother Speedio M200Xd1?

The M200Xd1 is supported by all major CAM systems with 5-axis capability: Mastercam, Fusion 360, Hypermill, WorkNC, and others provide verified Brother post-processors. The CNC-C00 control accepts standard EIA/ISO G-code. Brother provides post-processor libraries directly to CAM vendors, so shops already running any major CAM platform for 5-axis work will find support available without custom development.

04 Can the M200Xd1 be automated for lights-out production?

Yes. Brother offers a pallet changer option that allows the M200Xd1 to run automated two-pallet programs. Integration with small 6-axis robots (Universal Robots UR5, Fanuc LR Mate) is also common for loading and unloading the trunnion table. Full lights-out operation is practical for medical implant shops running long programs on expensive materials where unattended machining justifies the integration cost.

05 How does the M200Xd1 compare to the Fanuc Robodrill D14MiA5?

Both are compact 5-axis 30-taper machines targeting similar applications. The Robodrill D14MiA5 benefits from FANUC control familiarity and a robust global service network. The Speedio M200Xd1's 0.9-second tool change is slightly faster and the 27,000 rpm spindle is competitive. Work envelopes are similar in the small-part range. Choice often comes down to control preference, existing tooling ecosystem, and the value placed on FANUC's broader CNC ecosystem.
