AWEA AH-630

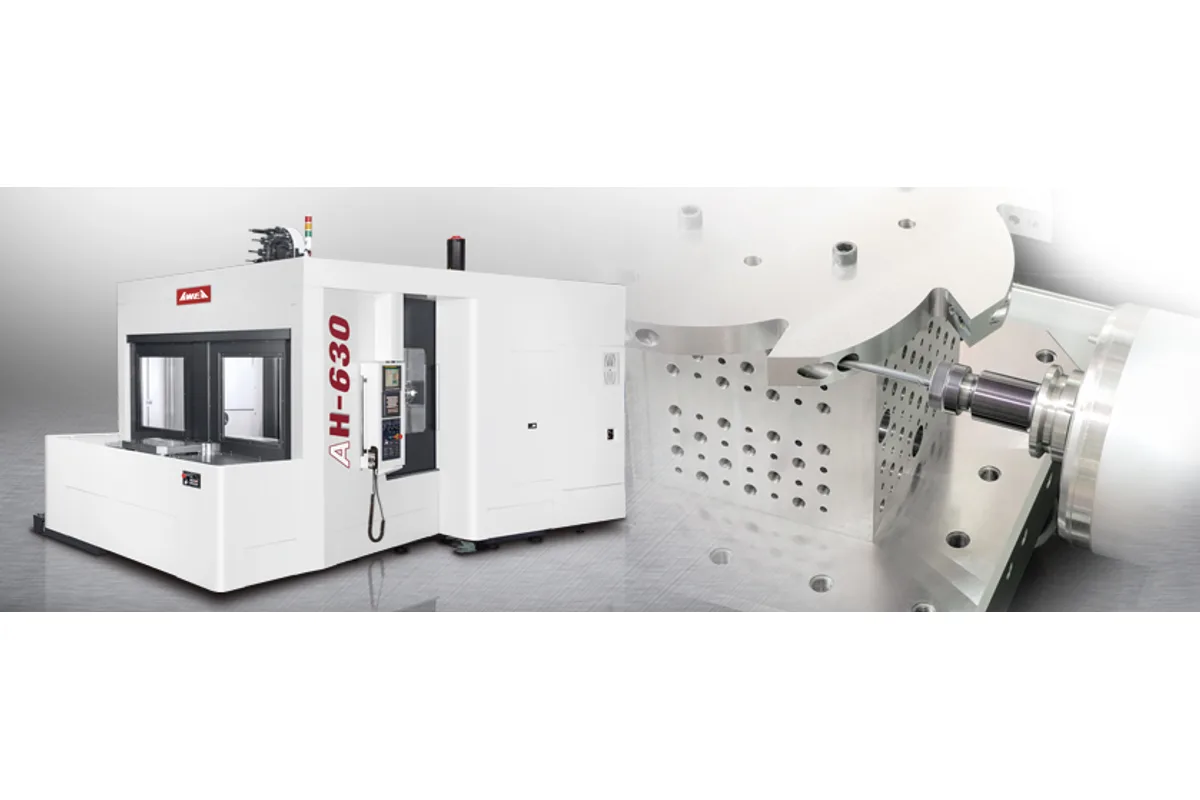

Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the AWEA AH-630 cost?
Price estimate
We do not have a price for the AWEA AH-630 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 630 x 630 mm (24.8 x 24.8 in) pallet that carries 1,200 kg (2,646 lb) puts the AWEA AH-630 in the class of horizontal machining centers used for gearbox housings, pump bodies and machine castings. The work envelope is 1,020 mm (40.2 in) in X and 900 mm (35.4 in) in both Y and Z, and the largest part it swings is Ø1,020 / 1,000 mm (Ø40.2 / 39.4 in).
The load rating is more than double that of the AH-500, and it changes what the BBT50 spindle is for. On the smaller machine the 22 / 26 kW (29.5 / 34.9 hp) motor is generous. Here it is matched to the work. The standard spindle is direct drive at 10,000 rpm; the 6,000 rpm gear spindle that AWEA describes, with 705 N-m at 352 rpm, is the one to ask about for cast iron and steel roughing with large cutters and long boring bars. The magazine accepts tools 500 mm (19.7 in) long, which is what bores through a 900 mm cube from two sides need.
Axis speeds are 48 m/min (1,890 ipm) in X and Z and 36 m/min (1,417 ipm) in Y. AWEA describes a T-shaped one-piece base, double layer ribbed castings and linear guide ways 20% larger than standard on this model's structure.
The machine occupies 5,325 x 3,485 x 3,755 mm (209.6 x 137.2 x 147.8 in) and weighs 16,500 kg (36,376 lb). The work table sits 1,180 mm above the floor for loading. Two chip augers, a chip conveyor and a flushing system around the spindle and roof handle swarf.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,020 mm (40.2 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| Table Size | 630 x 630 mm (24.8 x 24.8 in) |
| Max Table Load | 1,200 kg (2,646 lb) |
| Distance Spindle Center to Table Top | 50 ~ 950 mm (2.0 ~ 37.4 in) |
| Distance Spindle Nose to Table Center | 200 ~ 1,100 mm (7.9 ~ 43.3 in) |
| B Axis Min Index | 0.001° |
| Max Workpiece Diameter Height | Ø1,020 / 1,000 mm (Ø40.2 / 39.4 in) |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) |
| Max Spindle Speed | Direct Drive 10,000 rpm |
| Spindle Taper | BBT50 |
| Rapid Traverse X | 48 m/min (1,890 ipm) |
| Rapid Traverse Y | 36 m/min (1,417 ipm) |
| Rapid Traverse Z | 48 m/min (1,890 ipm) |
| Rapid Traverse B | 11.1 rpm |
| Cutting Feed Rate | 1 ~ 10 m/min (39 ~ 394 ipm) |
| Tool Capacity | 60 T |
| Max Tool Length | 500 mm (19.7 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Max Tool Diameter (full magazine) | Ø115 / Ø230 mm (Ø4.5 / Ø9.1 in) |
| Positioning Accuracy VDI 3441 | P ≤ 0.010 mm / Full travel |
| Repeatability VDI 3441 | Ps ≤ 0.008 mm |
| CNC Control | FANUC Oi-MD |
| Air Pressure Requirement | 6 kg/cm² |
| Machine Dimensions | 5,325 x 3,485 x 3,755 mm (209.6 x 137.2 x 147.8 in) |
| Machine Weight | 16,500 kg (36,376 lb) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,200 kg (2,646 lb) load on a 630 x 630 mm (24.8 x 24.8 in) table
- 900 mm (35.4 in) of travel in both Y and Z with 1,020 mm (40.2 in) in X
- Tool length up to 500 mm (19.7 in) and 20 kg (44 lb) for deep boring
- BBT50 spindle, direct drive 10,000 rpm or a 6,000 rpm gear spindle with 705 N-m
- 60 tools standard and up to 240 with larger magazines
Limitations
- Rapids are slower than the AH-500: 48 m/min (1,890 ipm) in X and Z, 36 m/min (1,417 ipm) in Y
- Footprint of 5,325 x 3,485 mm and 16,500 kg (36,376 lb) of weight
- Cutting feed rate is listed as 1 ~ 10 m/min (39 ~ 394 ipm)
- The table lists the FANUC Oi-MD only, with no alternative control
Best For
Frequently Asked Questions
01
The table is 630 x 630 mm (24.8 x 24.8 in) and holds 1,200 kg (2,646 lb). The maximum workpiece is Ø1,020 / 1,000 mm (Ø40.2 / 39.4 in), diameter and height. AWEA states a pallet change time of 16 seconds for the series.
02
X is 1,020 mm (40.2 in), Y is 900 mm (35.4 in) and Z is 900 mm (35.4 in). The spindle center ranges 50 ~ 950 mm (2.0 ~ 37.4 in) above the table top, and the spindle nose 200 ~ 1,100 mm (7.9 ~ 43.3 in) from the table center.
03
AWEA says the AH series can be equipped with a 10,000 rpm direct drive spindle or a 705 N-m gear spindle. The gear spindle runs to 6,000 rpm with a 26 kW motor and delivers its maximum torque at 352 rpm. The specification table itself lists the direct drive version.
04
The table lists a minimum index of 0.001°, achieved with a two-piece worm gear mechanism and a full circumference hydraulic brake. AWEA also describes a 1° clutch indexing table with a positioning accuracy of 8" and repeatability of 2", intended for heavy table loads.
