Amada WINSTAR
Key Specifications
nc control
max chuck size
traverse travel
cross travel
vertical travel
wheel spindle motor
Overview

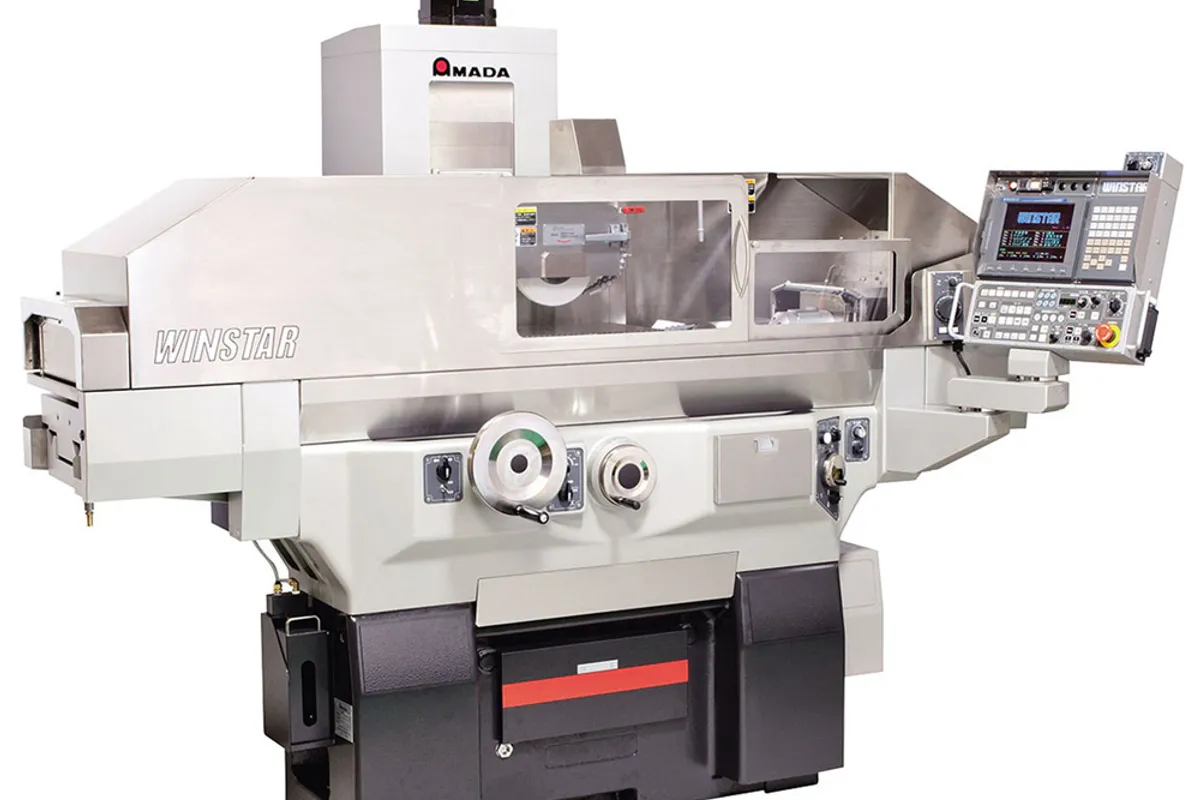

The Amada WINSTAR is an ultra-high-precision CNC forming grinder designed for large-format tooling applications. As the largest machine in Amada’s WINSTAR lineup, it features a generous 600 x 300 x 100 mm workpiece capacity -- significantly larger than any MEISTER model -- for grinding larger forming tools, die sets, and precision components.
The WINSTAR features simultaneous 2-axis plus 1-axis NC control with axis travels of 780 mm (traverse), 340 mm (cross), and 450 mm (vertical). The 3.7 kW wheel spindle drives larger grinding wheels up to 255 x 6.4-25 x 50.8 mm -- the 50.8 mm bore accommodates heavier wheel assemblies than the 31.75 mm bore on MEISTER and WINSTAR SP models.
The extended travels and larger workpiece capacity position the WINSTAR for applications that smaller forming grinders cannot reach -- wide die blocks, large forming tools, and precision plates. Despite its larger size, the WINSTAR maintains ultra-high-precision positioning and surface finish capabilities.
New WINSTAR systems typically price between $320,000 and $480,000.
Full Specifications
| Parameter | Value |
|---|---|
| Nc Control | Simultaneous 2-axis + 1 axis |
| Max Chuck Size | 600 x 300 x 100 mm (23.6 x 11.8 x 3.9 in) |
| Traverse Travel | 780 mm (30.7 in) |
| Cross Travel | 340 mm (13.4 in) |
| Vertical Travel | 450 mm (17.7 in) |
| Wheel Spindle Motor | 3.7 |
| Grinding Wheel Size | 255 x 6.4-25 x 50.8 mm |
| Model | WINSTAR |
| Nc Control Axis | Simultaneous 2-Axis + 1 Axis |
| Maximum Chuck Size | 600 x 300 x 100 |
| Travels | 780/340/450 |
| Wheel Spindle Grinding Wheel Size | ∅255 x 6.4 – 25 x ∅50.8 |
Specifications sourced from amadamca.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Largest workpiece capacity in Amada forming grinder lineup (600 x 300 mm)
- 780 mm traverse and 340 mm cross travel provide generous working range
- 3.7 kW spindle with 255 mm wheel capacity and 50.8 mm bore for heavy wheel assemblies
- Ultra-high-precision platform in a large format
- 450 mm vertical travel for tall workpieces and deep grinding
- Simultaneous 2+1 axis NC control for complex profiles on large components
Limitations
- Premium pricing of $320K-$480K reflects large-format ultra-precision
- Larger footprint requires more floor space
- Manual handling of 600 x 300 mm workpieces may require hoist assistance
- Specialized application with limited versatility outside precision tooling
Best For
Frequently Asked Questions
01
WINSTAR has larger capacity (600 x 300 mm vs 500 x 200 mm), longer traverse (780 vs 600 mm), and larger wheel bore (50.8 vs 31.75 mm). Both share 3.7 kW spindle.
02
The 2-inch bore accommodates heavier, more rigid wheel assemblies for better stability at aggressive feed rates on wider workpieces.
03
Max chuck 600 x 300 x 100 mm with 780 x 340 x 450 mm axis travels. Covers most large forming tools and die blocks.
04
No published ATC or workpiece stocker options. For automated forming grinding consider the MEISTER 52UP.
