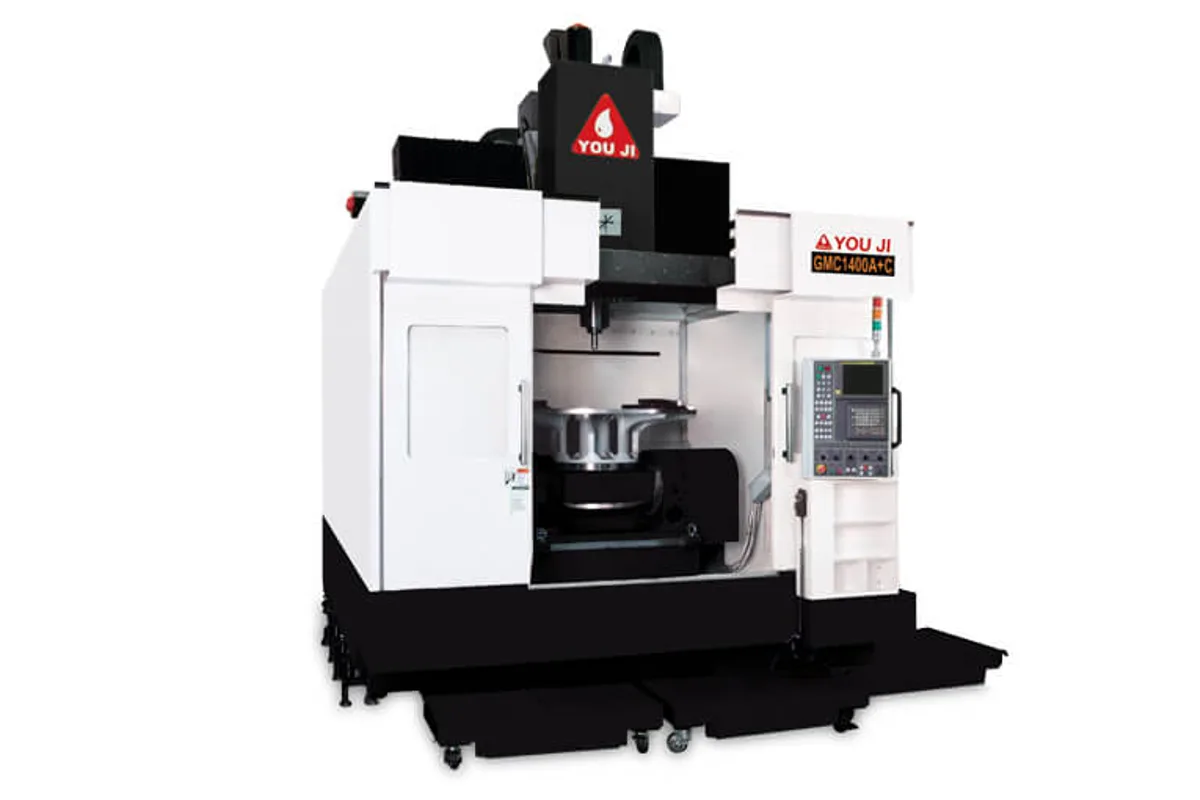

You Ji GMC1400
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
distance between columns
x axis travel
y axis travel
z axis travel
max table load
How much does the You Ji GMC1400 cost?
Price estimate
We do not have a price for the You Ji GMC1400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The You Ji GMC1400 is a gantry type machining center with a square working area: 1,400 mm (55.1 in) in X, 1,400 mm (55.1 in) in Y and 700 mm (27.6 in) in Z. The columns stand 2,100 mm (82.7 in) apart, and the spindle is listed at 10,000 rpm.
A square envelope under a gantry is a layout for round and bulky parts. The model key shows what You Ji has in mind: besides the fixed table (T) there is a swing table (S), an A-axis rotary table (A), and an A-axis rotary table with a C-axis rotary table (A+C). The A+C build tilts and rotates the work under the overhead spindle, which makes it a five-axis machine for parts such as wheels, impellers and housings.
Maximum table load is 5,000 kg (11,023 lb). That is generous for the travel, and it means a heavy trunnion unit can be carried with capacity left for the part. The 2,100 mm (82.7 in) between columns is half as wide again as the Y travel, so a fixture wider than the stroke still passes through.
The catalogue table is brief. It omits the spindle taper, motor power, tool capacity and the rotary axis ranges, and it does not say which figures change when a rotary table is fitted. Floor space is 5,100 x 3,950 mm (200.8 x 155.5 in) and height 4,300 mm (169.3 in), so the building needs a high bay.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 2,100 mm (82.7 in) |
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 1,400 mm (55.1 in) |
| Z Axis Travel | 700 mm (27.6 in) |
| Max Spindle Speed | 10,000 rpm |
| Max Table Load | 5,000 kg (11,023 lb) |
| Floor Space | 5,100 x 3,950 mm (200.8 x 155.5 in) |
| Machine Height | 4,300 mm (169.3 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Square 1,400 x 1,400 mm (55.1 x 55.1 in) travel under a gantry
- 10,000 rpm spindle for finishing with smaller cutters
- 5,000 kg (11,023 lb) maximum table load
- Listed with fixed, swing, A-axis and A+C rotary table builds
- 2,100 mm (82.7 in) between columns, wider than the Y travel
Limitations
- Z-axis travel of 700 mm (27.6 in) is short once a tilting table is installed
- Spindle taper, power and tool capacity are not published
- 4,300 mm (169.3 in) machine height
- Only one size in the GMC series
Best For
Frequently Asked Questions
01
It can be. The model key lists T (fixed table), S (swing table), A (A-axis rotary table) and A+C (A-axis rotary table plus C-axis rotary table). The A+C build adds two rotary axes to X, Y and Z. The catalogue gives no tilt range or rotary table size.
02
X-axis travel 1,400 mm (55.1 in), Y-axis travel 1,400 mm (55.1 in) and Z-axis travel 700 mm (27.6 in). The distance between columns is 2,100 mm (82.7 in).
03
Maximum loading weight is 5,000 kg (11,023 lb). The catalogue does not say whether that figure applies to the fixed table only or also to the rotary table builds, so check it for the version you intend to buy.
04
The table lists 10,000 rpm. That speed suits finishing with smaller cutters as well as general milling in a 1,400 mm (55.1 in) envelope. Taper and motor power are not printed, so confirm both with the maker.
05
The floor dimension is 5,100 x 3,950 mm (200.8 x 155.5 in) and the machine height 4,300 mm (169.3 in). Crane access over a gantry of that height should be checked against the building.
