Tsugami B0326

$180,000 - $250,000 Updated 2026-03-15

Key Specifications

Rapid Traverse

32 m/min (1,260 ipm)

Accuracy

±0.003 mm

Repeatability

±0.002 mm

max bar capacity

26 mm (1.024 in)

main spindle speed

200 – 8,000 RPM

sub spindle speed

200 – 8,000 RPM

Overview

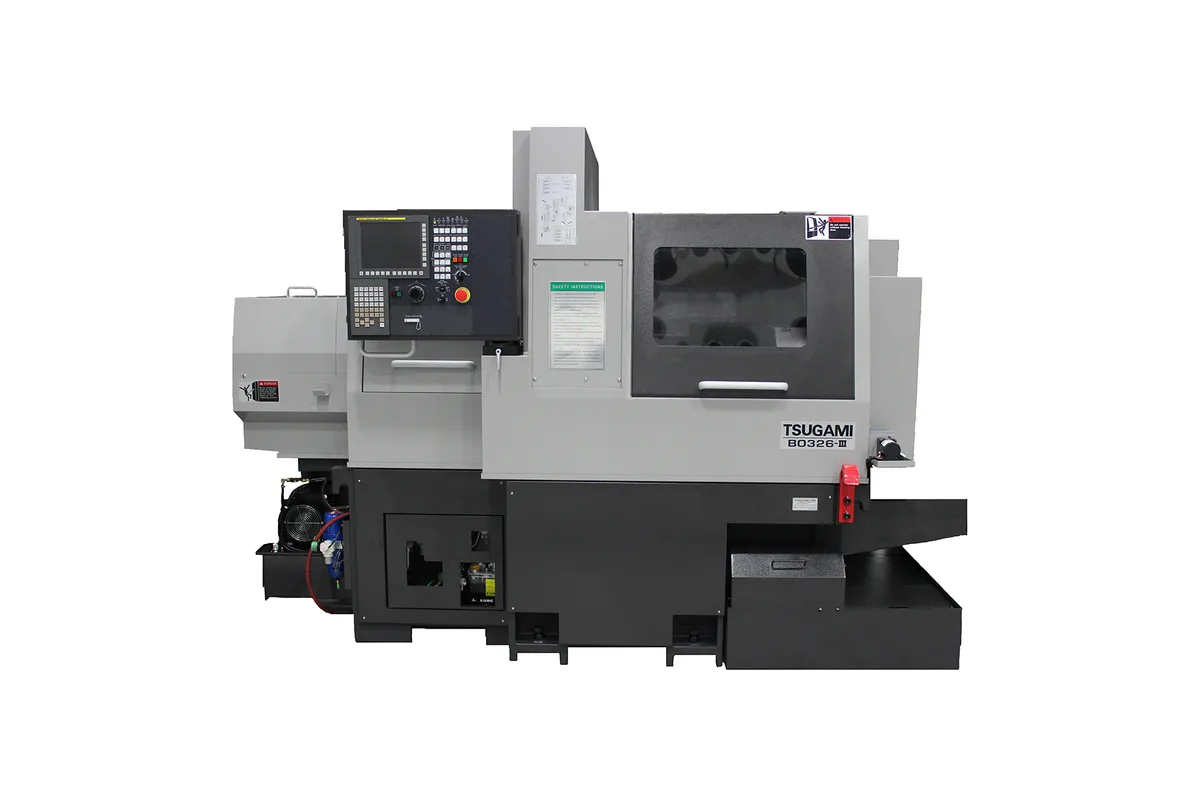

The Tsugami B0326 is a 26 mm capacity Swiss-type automatic lathe built for high-precision, high-volume production of complex small parts. Tsugami is one of the leading Swiss-type lathe manufacturers globally, and the B0326 sits in their core production lineup targeting medical device, electronics, automotive, and watchmaking industries where tight tolerances and fine surface finishes are non-negotiable.

The B0326 handles bar stock up to 26 mm (1.024 in) diameter with a main spindle speed of 10,000 RPM and a sub-spindle rated at 10,000 RPM as well. The main spindle delivers 3.7 kW (5 hp) of continuous power, which is well-suited for the small-diameter precision work this machine targets. With up to 7 axes including B-axis capability for angular drilling and milling, the B0326 can produce complete parts in a single setup, eliminating secondary operations that add cost and reduce accuracy.

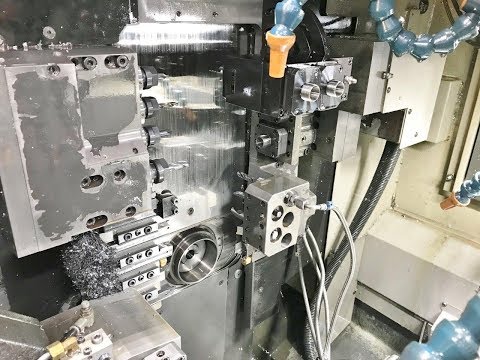

The machine features up to 27 tools across front, back, and gang-mounted positions, giving it exceptional tool density for complex part geometries. Cross-drilling, thread whirling, polygon turning, and off-center milling are all possible with the available tooling configurations. The guide bushing system ensures minimal deflection during cutting, which is critical for achieving the ±0.005 mm tolerances common in medical bone screws and dental implant components.

The B0326 runs on the Fanuc 32i-B control, providing reliable CNC operation with macro programming capability and network connectivity. Tsugami's TS series software overlay simplifies setup for operators transitioning from simpler turning centers. Pricing for the B0326 typically runs $180,000 to $250,000 depending on axis configuration, tooling packages, and options like high-pressure coolant and oil mist systems. Direct competitors include the Citizen L20, Star SR-20J, and Tornos GT 26. Tsugami has a strong North American presence through their partnership with REM Sales, ensuring reasonable parts and service availability across the US.

Full Specifications

Parameter	Value
Max Bar Capacity	26 mm (1.024 in)
Main Spindle Speed	200 – 8,000 RPM
Sub Spindle Speed	200 – 8,000 RPM
Main Spindle Power	3.7 kW (5 hp)
Number Of Axes	Up to 7 axes (including B-axis)
Tool Stations	Up to 27 tools
Guide Bushing	Standard (removable for non-guide bushing mode)
Travel X1	30 mm (1.18 in)
Travel Z1	205 mm (8.07 in)
Travel X2	30 mm (1.18 in)
Travel Z2	100 mm (3.94 in)
Rapid Traverse Rate	32 m/min (1,260 ipm)
Positioning Accuracy	±0.003 mm
Repeatability	±0.002 mm
CNC Control	Fanuc 32i-B
Machine Weight	4,000 kg / 8,818 lbs.
Maximum Part Size	32 mm / 1.26″
Axis	6
Max Headstock Stroke W Guide Bushingmax Headstock Stroke W O Guide Bushing	330 mm / 12.99″
Live Tool Speed	200 – 6,000 RPM
Run In Guide Bushing Mode	YES
Run In Guide Bushless Mode	YES
Tool Positions	32/42
Live Tool Positions	15 /26
Cnc Control	FANUC 32i-B
Footprint W X D X H	2628 x 1280 x 1970 mm103.5″ x 50.4″ x 77.5″

Specifications sourced from tsugamiamerica.com — verified 2026-03-28

Strengths & Limitations

Strengths

26 mm bar capacity with up to 7 axes and 27 tools enables complete part production in a single setup, eliminating costly secondary operations
10,000 RPM main and sub spindles provide excellent surface speed for both ferrous and non-ferrous materials at small diameters
Guide bushing system minimizes bar deflection for ±0.005 mm tolerances on long slender parts like medical bone screws and dental implants
B-axis capability allows angular drilling and milling operations that would otherwise require separate fixturing and machine time
Strong North American support through REM Sales ensures parts availability and service response competitive with Citizen and Star
Removable guide bushing allows conversion to non-guide bushing mode for shorter parts, reducing material waste from remnant bar stock

Limitations

Swiss-type setup complexity requires experienced operators; shops transitioning from conventional CNC lathes should budget 3-6 months for training
$180K+ entry price is a significant investment for shops without guaranteed production volume to keep the machine running
3.7 kW main spindle limits heavy material removal; this is a precision finishing machine, not a roughing platform
27-tool capacity requires careful planning for tool interference and clearance in the tight Swiss-type work zone

Best For

Medical device manufacturers producing bone screws, dental implants, and surgical instrument components requiring ±0.005 mm tolerances Automotive shops running high-volume production of small precision shafts, pins, and connectors under 26 mm diameter Electronics and connector manufacturers needing complex multi-feature parts completed in a single bar-fed cycle Watchmaking and micro-mechanical component production where surface finish and dimensional accuracy are paramount Contract manufacturers seeking a versatile 26 mm Swiss-type that can handle a wide variety of part geometries through its 7-axis, 27-tool configuration

Frequently Asked Questions

01 How does the Tsugami B0326 compare to the Citizen L20?

Both are 20-26 mm Swiss-type lathes targeting similar applications. The B0326 offers slightly higher tool density with up to 27 tools vs the Citizen's typical 20-24 tool configuration. The Citizen L20 counters with Citizen's LFV (Low Frequency Vibration) chip breaking technology, which is a significant advantage for stringy materials like stainless steel and titanium. Both machines hold similar tolerances and pricing. The choice often comes down to dealer relationship and existing shop experience with the respective control interfaces.

02 Can the B0326 run without the guide bushing?

Yes. The B0326 features a removable guide bushing that allows conversion to non-guide bushing (fixed headstock) mode. This is advantageous for shorter parts where the guide bushing would waste material in the remnant bar. Non-guide bushing mode reduces material waste by approximately 200-300 mm per bar, which adds up significantly in expensive materials like titanium or Inconel.

03 What materials can the B0326 machine?

The B0326 handles a full range of bar stock materials including free-machining steels, stainless steels (303, 304, 316), titanium alloys (Ti-6Al-4V), brass, aluminum, and engineering plastics like PEEK and Delrin. For difficult materials like titanium and Inconel, high-pressure coolant (up to 70 bar) is recommended. The 10,000 RPM spindle speed provides adequate surface speed for most materials at the small diameters this machine targets.

04 What is the cycle time for typical medical screw production?

Cycle times vary with part complexity, but a typical medical bone screw (8-15 mm diameter, 25-40 mm length) with thread whirling, cross-holes, and hex drive runs in 30-60 seconds on the B0326. High-volume shops producing simpler turned parts like dowel pins or connector contacts can achieve cycle times under 15 seconds. The dual-spindle configuration overlaps main and sub-spindle operations to minimize total cycle time.

05 What bar feeder is recommended for the B0326?

Tsugami typically pairs the B0326 with LNS or IEMCA hydrodynamic bar feeders designed for Swiss-type applications. A 12-foot magazine bar feeder for 26 mm stock adds approximately $20,000-$30,000. For maximum unattended runtime, LNS Alpha SL65 or IEMCA Boss 332 are popular choices among B0326 users. The bar feeder interface is standardized, so most major bar feeder brands are compatible.

06 What is the footprint of the B0326?

The B0326 has a relatively compact footprint of approximately 2,500 x 1,200 mm (98 x 47 in) plus bar feeder length. With a standard 12-foot bar feeder, total length extends to about 6,000 mm (236 in). The machine weighs 2,700 kg and does not require special foundation work beyond a level concrete floor. Multiple B0326 machines can be arranged in tight cell configurations for high-volume production.
