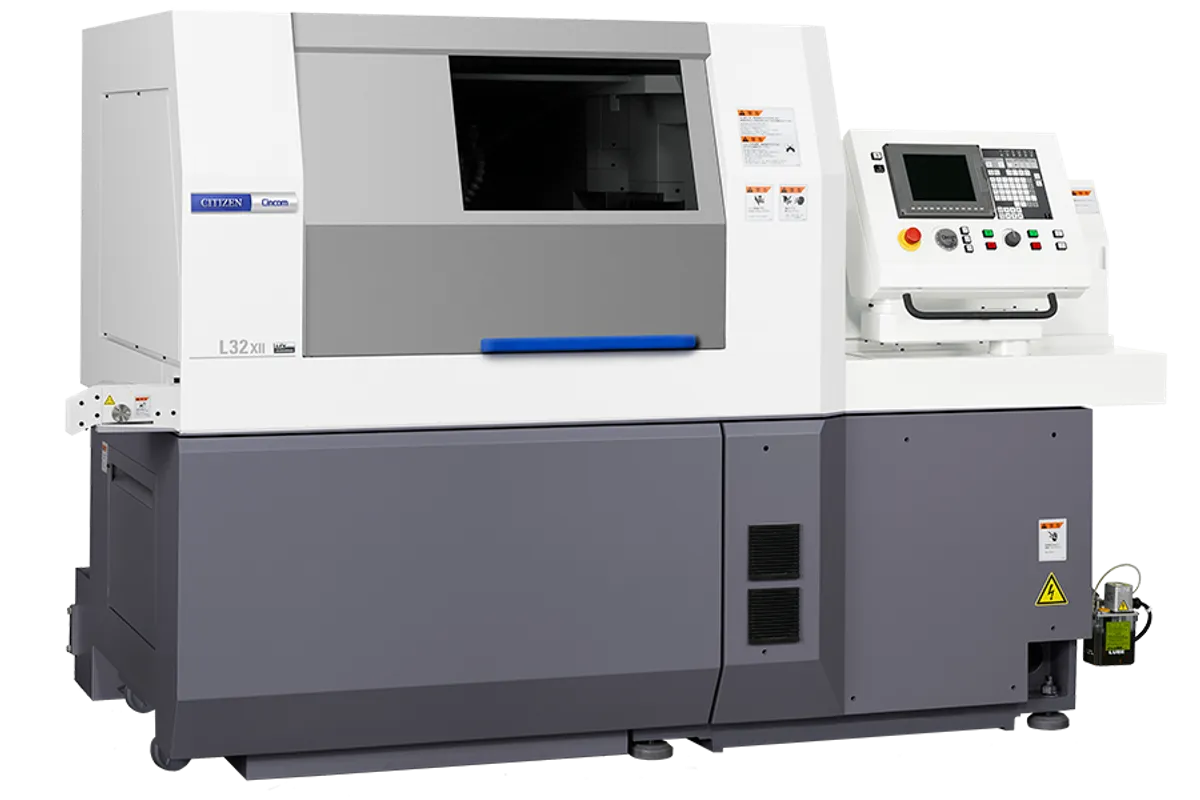

Citizen Cincom L32

A new Citizen Cincom L32 ranges from approximately $200,000 for the base L32 VIII to $350,000-$400,000 for the fully equipped L32 XII with B-axis and LFV. The mid-range L32 X typically falls around $250,000-$300,000. Used L32 machines from 2012-2020 sell for $80,000-$200,000 depending on model variant, condition, and tooling included.

The L32 VIII is ideal if your parts are primarily turned with basic cross-drilling and you want the best value. The L32 X adds Y2 axis capability for more complex back-spindle milling operations. The L32 XII is for shops producing complex parts with angular features, compound holes, and extensive milling that would otherwise require secondary operations. Most shops doing medical or aerospace work gravitate toward the L32 X or XII.

The Citizen L32 offers more model flexibility (3 tiers vs one), up to 44 tool positions (vs ~18), and LFV chip-breaking technology. The Star SR-32J counters with hydraulic-free design and Star's Motion Control System. The L32 XII's B-axis gives it an edge for complex angular work. For pure turning production where chip control matters, the L32 with LFV is compelling. For shops prioritizing low maintenance and environmental impact, the Star's hydraulic-free approach has merit.

The L32 can be configured to accept bar stock up to 38mm diameter with an optional expansion kit, extending its reach beyond the standard 32mm capacity. This is useful for shops that occasionally need to run slightly larger parts without investing in a dedicated 38mm machine, though the expanded capacity may limit some tooling configurations.

Yes. All L32 variants support non-guide bushing (NGB) operation, which reduces bar remnant waste and is preferred for shorter parts with low length-to-diameter ratios. In NGB mode, the maximum machining diameter is limited to approximately 2.5 times the bar diameter. This flexibility allows shops to optimize material utilization based on part geometry.

The L32 is heavily used in medical device manufacturing (orthopedic screws, dental implants, spinal hardware), aerospace (precision fittings, hydraulic connectors), automotive (fuel system components, sensor housings), and electronics (high-precision connectors, RF components). The medical industry is the single largest user segment due to the 32mm size range covering most implant and instrument sizes.
