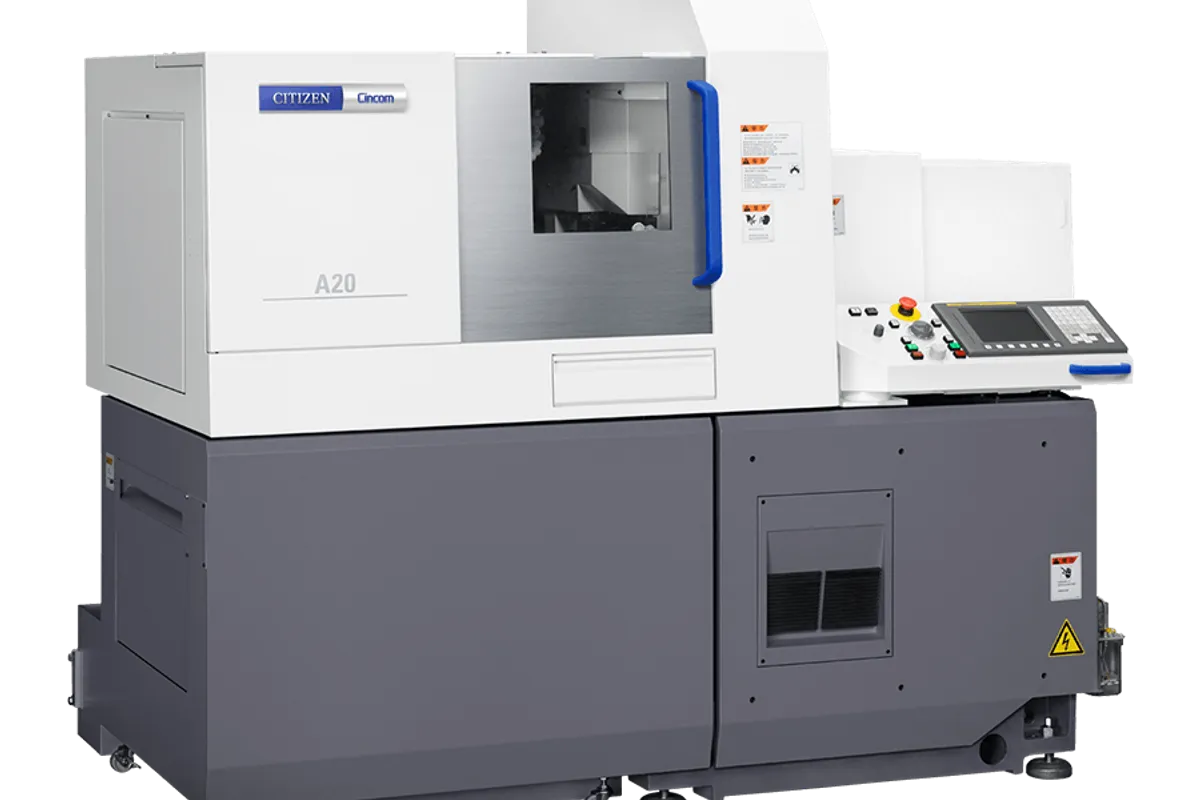

Citizen Cincom A20

Est. $100,000 - $180,000 Possible older model Specs verified 2026-09-24 · marucit.com Updated 2026-10-03

This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

Key Specifications

Max Spindle

Max. 10,000 rpm

Tool Capacity

Rapid Traverse

32 m/min

Spindle Power

2.2 / 3.7 kW

max machining diameter

20 mm (25 option)

max machining length

200 mm / 1 chucking (188 mm for 25)

How much does the Citizen Cincom A20 cost?

Estimated price range

Est.$100,000 - $180,000

Our best estimate for a swiss-type lathe in this class — not a quote from Citizen Machinery. Configuration moves it a long way.

Overview

The Citizen Cincom A20 is a 7-axis sliding-headstock lathe, the C-axis included, for 20 mm bar, with a 25 mm version listed as an option. It carries 21 tools, 4 of them live, and its main spindle runs to Max. 10,000 rpm. The A20 is not in Citizen's current lineup; the Cincom A20-VII is listed with the same max. 10,000 rpm spindle and 2,200 kg weight.

The 25 mm option changes more than bar size. At 20 mm the machine makes 200 mm per chucking through a TD25NS guide bushing; the 25 mm version uses a CD25 guide bushing and drops to 188 mm per chucking. Parts longer than one chucking stroke are made by re-chucking, so the per-chucking figure is the one to check against a drawing.

The main spindle has a 2.2 / 3.7 kW motor and a 26 mm (1.02 in) bore. The back spindle runs to Max. 8,000 rpm on 1.1 / 1.5 kW. Live tools are listed at Max. 6,000 rpm (Rating 4,500 rpm) on a 0.75 kW drive, which means cross holes, small flats and light slotting rather than real milling. With only 4 live positions, a part with many milled features will run out of driven tools before it runs out of stations.

Rapid traverse is 32 m/min, the control is listed as Citizen CNC and power consumption is 7.1 kVA. Centre height is 1,050 mm (41.3 in), which a bar feeder must match, and the machine weighs 4,851 lb (2,200 kg). For comparison the Cincom L20-XII ATC is listed with 46 (w/ ATC) tools, live tools to Max. 9,000 rpm and 2,680 kg (5,908 lb).

Full Specifications

Parameter	Value
Max Machining Diameter	20 mm (25 option)
Max Machining Length	200 mm / 1 chucking (188 mm for 25)
Number of Axes	7 (including C-axis)
Tool Positions	21 (including 4 live tools)
Rapid Traverse Rate	32 m/min
Guide Bushing	TD25NS (CD25 for 25)
Power Consumption	7.1 kVA
CNC Control	Citizen CNC
Max Spindle Speed	Max. 10,000 rpm
Sub Spindle Speed	Max. 8,000 rpm
Spindle Bore	26 mm (1.02 in)
Tool Capacity	21
Live Tool Speed	Max. 6,000 rpm (Rating 4,500 rpm)
Spindle Motor Power	2.2 / 3.7 kW
Sub Spindle Power	1.1 / 1.5 kW
Live Tool Power	0.75 kW
Center Height	1,050 mm (41.3 in)
Machine Weight	4,851 lb (2,200 kg)

Specifications sourced from marucit.com — verified 2026-09-24

Strengths & Limitations

Strengths

20 mm bar capacity, with a 25 mm version (CD25 guide bushing) listed as an option
200 mm machining length per chucking at 20 mm
21 tool positions including 4 live tools, plus a back spindle to Max. 8,000 rpm
32 m/min rapid traverse and a 7.1 kVA power consumption
Main spindle to Max. 10,000 rpm on a 2.2 / 3.7 kW motor

Limitations

Live tools run at Max. 6,000 rpm (Rating 4,500 rpm) on 0.75 kW, so milling is light
Only 4 of the 21 positions are live tools
Back spindle motor is 1.1 / 1.5 kW, which limits back-end cuts
The 25 mm version drops machining length to 188 mm per chucking
Not in Citizen's current lineup; inspect any used machine

Best For

Swiss-type turned parts from 20 mm bar Parts with light cross drilling and milling at both ends Turned parts up to 25 mm with the optional larger-bar version

Frequently Asked Questions

01 What is the bar capacity of the Cincom A20?

20 mm as standard, with a 25 mm version as an option. The 20 mm machine makes 200 mm per chucking through a TD25NS guide bushing; the 25 mm version uses a CD25 guide bushing and makes 188 mm per chucking.

02 How many tools and live tools does the A20 carry?

21 tool positions, including 4 live tools. The live tools run at Max. 6,000 rpm (Rating 4,500 rpm) on a 0.75 kW drive, which suits cross drilling, tapping and small flats.

03 How does the Cincom A20 compare with the Cincom L20-XII ATC?

The Cincom L20-XII ATC is listed with 46 (w/ ATC) tools, live tools to Max. 9,000 rpm (S3 high-power), a 2.2 / 3.7 / 5.5 kW spindle and 2,680 kg (5,908 lb). The A20 has 21 tools, live tools to Max. 6,000 rpm, a 2.2 / 3.7 kW spindle and weighs 2,200 kg.

04 What does the A20 need for installation?

A power supply for 7.1 kVA, floor for 4,851 lb (2,200 kg), and a bar feeder set to the 1,050 mm (41.3 in) centre height. The control is listed as Citizen CNC.
