Star SV-32J II

Est. $320,000 - $480,000 Specs verified 2026-10-03 · starcnc.com Updated 2026-10-03

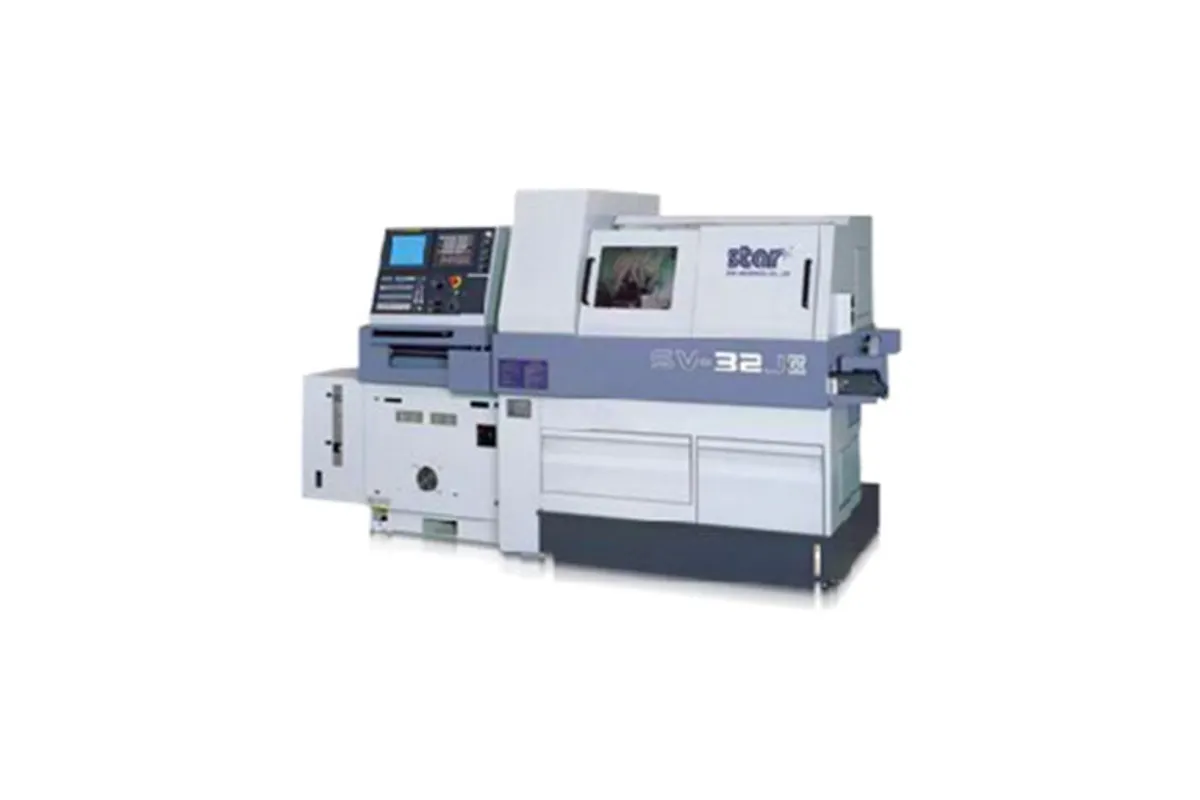

Image: starcnc.com, Star Micronics

Key Specifications

Rapid Traverse

32 m/min

max bar capacity

32 mm (1.26 in)

max machining diameter

32 mm (1.26 in)

number of axes

Up to 10 (including Y1, Y2, C1, C2)

How much does the Star SV-32J II cost?

Estimated price range

Est.$320,000 - $480,000

Our best estimate for a swiss-type lathe in this class — not a quote from Star Micronics. Configuration moves it a long way.

Overview

Star's SV-32J II takes 32 mm (1.26 in) bar and is listed with up to 10 axes, of which Y1, Y2, C1 and C2 are named. Rapid traverse is 32 m/min. Those rows are all that Star's table states for this model.

Read the axis row for what it includes and what it does not. Two Y axes and two C axes mean milling and drilling off the centreline can be done at both spindles, with each spindle positioned or rotated under control. No B-axis is named. Angled holes and inclined faces would therefore call for angled tool holders or a different model, so look through the part drawing for features that are neither parallel nor square to the bar.

For sizing against the rest of the SV family, the SV-20 is listed at ø20mm (25/32in) maximum turning diameter and the SV-38R at ø38mm (1-1/2in), with the SV-32J II between them. Spindle speed, power, tooling and weight are not in the table and should be requested with a quotation.

Full Specifications

Parameter	Value
Max Bar Capacity	32 mm (1.26 in)
Max Machining Diameter	32 mm (1.26 in)
Number of Axes	Up to 10 (including Y1, Y2, C1, C2)
Rapid Traverse Rate	32 m/min

Specifications sourced from starcnc.com — verified 2026-10-03

Strengths & Limitations

Strengths

Y1 and Y2 axes for off-centre work at both spindles
C1 and C2 axes listed, within a total of up to 10 axes
32 mm (1.26 in) bar capacity with a 32 m/min rapid traverse

Limitations

No B-axis is named in the axis row
Spindle speed, power, tool count and weight are not published in the table

Best For

Square and parallel milled features on 32 mm (1.26 in) bar parts Front and back off-centre drilling with Y1 and Y2 Turn-mill parts that need no angled holes

Frequently Asked Questions

01 Does the SV-32J II have a B-axis?

The table does not name one. It lists up to 10 axes including Y1, Y2, C1 and C2. If a part needs angled drilling or milling, raise it with the seller before assuming the machine can do it with standard tooling.

02 What size bar does the SV-32J II take?

32 mm (1.26 in), which is also the listed maximum machining diameter. Within the family the SV-20 is listed at ø20mm (25/32in) and the SV-38R at ø38mm (1-1/2in) maximum turning diameter.
