Magerle MFP 51
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Table Size
Spindle Power
How much does the Magerle MFP 51 cost?
Estimated price range
Our best estimate for a cnc grinding machine in this class — not a quote from United Grinding (Magerle). Configuration moves it a long way.
Overview
The Magerle MFP 51 is a grinding center with a 500 x 650 mm (19.7 x 25.6 inch) table, a 50 kW (67.1 hp) spindle that reaches 12000 rpm, and swiveling ranges listed for three rotary axes: 210 ° on A, 360 ° on B and 360 ° on C.
That is a lot of spindle for the wheel it drives. The maximum grinding wheel is 300 mm (11.8 inch) in diameter and 60 mm (2.4 inch) wide, so the full 50 kW (67.1 hp) can be put through a narrow contact zone. The 12000 rpm ceiling serves the other end of the range, where a small wheel has to reach into a tight form and still run at a useful surface speed.
X is the short, fast axis, with 500 mm (19.7 inch) of travel at up to 50000 mm/min (1969 inch/min). Y and Z each have 650 mm of travel, listed as 25.6 inch for Y and 25.5 inch for Z, at up to 30000 mm/min (1181 inch/min). With three swiveling axes over those travels, a part can be turned to present several faces to the wheel without being re-clamped.
The Magerle MFP 100 keeps the same 50 kW (67.1 hp) rating on a bigger frame, with 1000 mm (39.4 inch) of X travel and a 1000 x 750 mm (39.4 x 29.5 inch) table. The MFP 51 is the machine for parts that fit its smaller table and benefit from its C range.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 500 mm (19.7 inch) |
| Max Travel Speed X | 50000 mm/min (1969 inch/min) |
| Y-Axis Travel | 650 mm (25.6 inch) |
| Max Travel Speed Y | 30000 mm/min (1181 inch/min) |
| Z-Axis Travel | 650 mm (25.5 inch) |
| Max Travel Speed Z | 30000 mm/min (1181 inch/min) |
| Spindle Motor Power | 50 kW (67.1 hp) |
| Max Spindle Speed | 12000 rpm |
| Max Grinding Wheel Diameter | 300 mm (11.8 inch) |
| Max Grinding Wheel Width | 60 mm (2.4 inch) |
| Swiveling Range A | 210 ° |
| Swiveling Range B | 360 ° |
| Swiveling Range C | 360 ° |
| Table Size | 500 x 650 mm (19.7 x 25.6 inch) |
Specifications sourced from grinding.ch — verified 2026-10-03
Strengths & Limitations
Strengths
- 50 kW (67.1 hp) spindle with a maximum speed of 12000 rpm
- Swiveling ranges of 210 ° on A and 360 ° on both B and C
- X traverses at up to 50000 mm/min (1969 inch/min), Y and Z at up to 30000 mm/min (1181 inch/min)
- 650 mm of travel in both Y and Z over a 500 x 650 mm (19.7 x 25.6 inch) table
Limitations
- X travel is 500 mm (19.7 inch), half the 1000 mm (39.4 inch) of the Magerle MFP 100
- Wheel width is limited to 60 mm (2.4 inch), against 100 mm (3.9 inch) on the Magerle MFP 100
- The maximum grinding wheel diameter is 300 mm (11.8 inch)
- No table load, machine weight or footprint is given in the table
Best For
Frequently Asked Questions
01
Three linear axes, X with 500 mm (19.7 inch), Y with 650 mm (25.6 inch) and Z with 650 mm (25.5 inch), plus swiveling ranges for A, B and C. The A range is 210 °, and B and C are each 360 °.
02
The maximum grinding wheel diameter is 300 mm (11.8 inch) and the maximum width is 60 mm (2.4 inch). The spindle behind it is rated at 50 kW (67.1 hp) and runs up to 12000 rpm, which also lets much smaller wheels reach working speed.
03
Maximum travel speed is 50000 mm/min (1969 inch/min) in X and 30000 mm/min (1181 inch/min) in both Y and Z. X is the axis that carries the stroke of the cut, which is why it is the fastest of the three.
04
Size and wheel width. The Magerle MFP 100 has travels of 1000 mm (39.4 inch), 900 mm (35.4 inch) and 750 mm (29.5 inch) and a 1000 x 750 mm (39.4 x 29.5 inch) table. The MFP 51 has 500 mm (19.7 inch) of X and 650 mm in Y and Z. Both carry a 50 kW (67.1 hp) spindle, and the Magerle MFP 100 takes a wheel up to 100 mm (3.9 inch) wide where the MFP 51 stops at 60 mm (2.4 inch).
Videos
MÄGERLE
UNITED GRINDING North America
More from United Grinding (Magerle)
Other CNC Grinding Machines
Rollomatic NaNO 6X
Palmary OIG-200L50
ANCA RX7
Drake GS:TE400-750

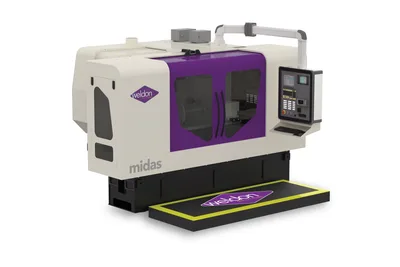

Weldon Midas
