Bystronic Xpert 40/80
This model was not found in Bystronic's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.

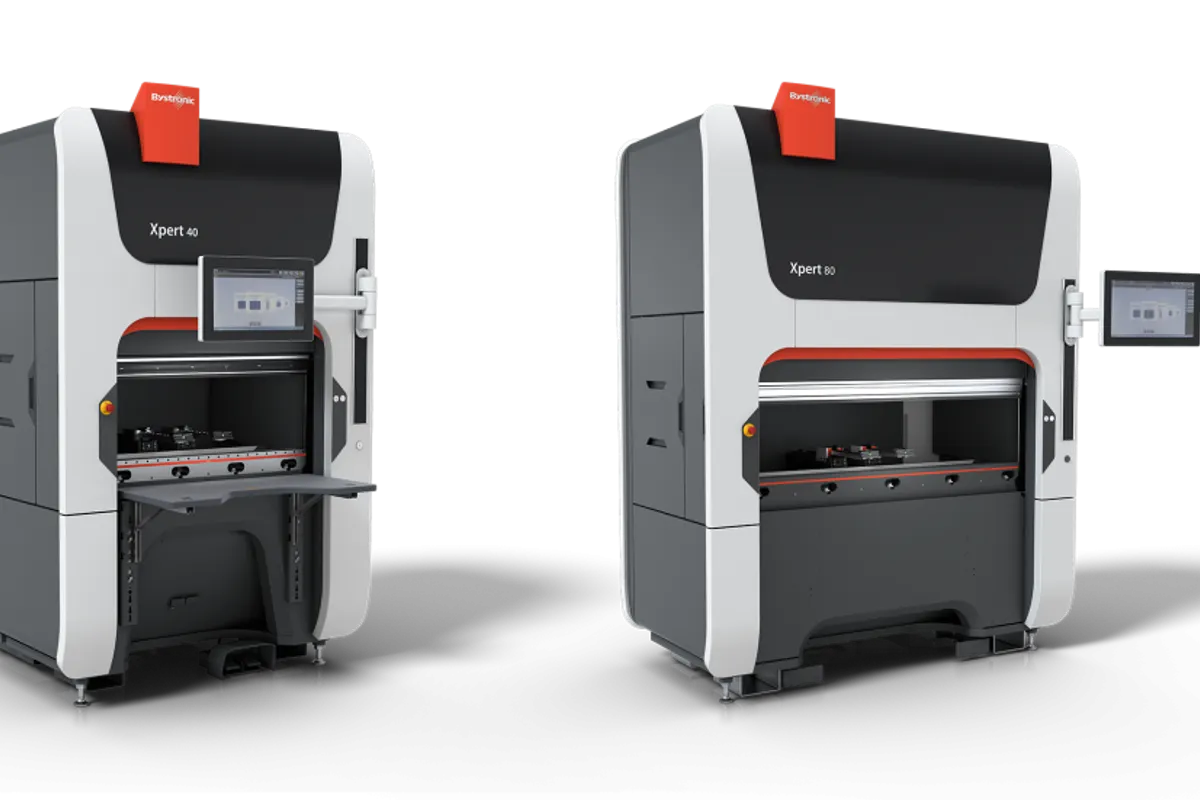

Image: bystronic.com, Bystronic
Key Specifications
xpert 40 capacity
xpert 80 capacity
xpert 40 bed
xpert 80 bed
ram repeatability
approach speed
How much does the Bystronic Xpert 40/80 cost?
Estimated price range
Our best estimate for a cnc press brake in this class — not a quote from Bystronic. Configuration moves it a long way.
Overview
The Bystronic Xpert 40/80 covers two small servo-hydraulic press brakes: the Xpert 40 with 400 kN / 40 metric tons on a 1,020 mm bed, and the Xpert 80 with 800 kN / 80 metric tons on a 2,050 mm bed. The pair is not in Bystronic's current lineup, so the listed figures are for reference when looking at an existing machine.
Choosing between the two comes down to part length. The larger machine roughly doubles both force and bed length, so the force available for each unit of bend length is about the same on either; what changes is how long a part can be. Parts under 1,020 mm gain nothing in bending capacity from the bigger frame.
Shared rows are a ram repeatability of ±0.01 mm, an approach speed of 200 mm/sec, a 22-inch ByVision control and a backgauge given as 4-6 axis. That last row is a range, so the number of gauge axes on any one machine has to be checked. Stroke, open height and machine weight are not in the listed figures.
Full Specifications
| Parameter | Value |
|---|---|
| Xpert 40 Capacity | 400 kN / 40 metric tons |
| Xpert 80 Capacity | 800 kN / 80 metric tons |
| Xpert 40 Bed | 1,020 mm |
| Xpert 80 Bed | 2,050 mm |
| Ram Repeatability | ±0.01 mm |
| Approach Speed | 200 mm/sec |
| CNC Control | ByVision (22-inch) |
| Drive | Servo-hydraulic |
| Backgauge | 4-6 axis |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Two sizes: 400 kN / 40 metric tons on a 1,020 mm bed and 800 kN / 80 metric tons on a 2,050 mm bed
- Ram repeatability listed at ±0.01 mm
- Approach speed of 200 mm/sec with a servo-hydraulic drive
- ByVision control on a 22-inch screen and a 4-6 axis backgauge
Limitations
- Bed length stops at 2,050 mm on the larger size and 1,020 mm on the smaller
- Backgauge is given as a 4-6 axis range, so the axis count of an individual machine is not settled by the table
- No stroke, open height, throat depth or weight is listed for either size
Best For
Frequently Asked Questions
01
Force and bed length. The Xpert 40 is listed with 400 kN / 40 metric tons and a 1,020 mm bed, the Xpert 80 with 800 kN / 80 metric tons and a 2,050 mm bed. Ram repeatability (±0.01 mm), approach speed (200 mm/sec), the servo-hydraulic drive and the 22-inch ByVision control appear once in the table, without a split by size.
02
The backgauge row reads 4-6 axis. It does not say which count belongs to which size or which is standard, so confirm the axes fitted on the machine you are looking at and whether they match the parts you need to gauge.
03
Ram repeatability is listed at ±0.01 mm. No angle accuracy or backgauge accuracy is given, so the figure describes how consistently the ram reaches its programmed depth, not the finished bend angle in a given material.
